Rhin-O-Tuff 7000C4 Ultra Duty Electric Coil Binding System

Name: Rhin-O-Tuff 7000C4 Ultra Duty Electric Coil Binding System
Brand: Rhin-O-Tuff
SKU: 7000C4

$3,748.00

Price Match Guarantee*

Need Shopping Advice?
Call - (800)944-4573

High Efficiency: Punches up to 31 sheets of 20 lb paper at a rate of 25 cycles per minute, ensuring quick and efficient binding for large projects.
Versatile Paper Handling: Features a 14-inch punching length with fully disengageable pins, accommodating various paper sizes for customized projects.
Durable Construction: Built with heavyweight metal for long-lasting performance, designed to withstand the demands of high-volume commercial use.
Convenient Features: Includes automatic and manual reverse to minimize jamming, along with an extreme high-capacity waste chip tray for a tidy workspace.

SKU

PRODUCT NAME

PRICE

QUANTITY

902

4:1 Round .248 Die Set Rhin-O-Tuff HD6500 and HD7000

$1,228.00

HD7000-ONYX

Rhin-O-Tuff HD7000 Onyx 14" Open-Ended Table Top Electric Punch

$3,748.00

HD4170-ONYX

Rhin-O-Tuff Onyx HD4170 Electric 12" Coil Inserter

$1,679.00

MK7000-ONYX

Rhin-O-Tuff Mounting Kit for HD Punches

$106.00

Product Description

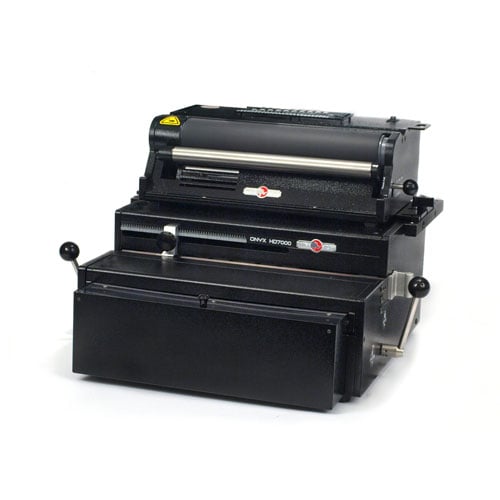

To Get the Full Package, Order All of the Items Above This is the Rhin-O-Tuff 7000C4. It is Rhin-O-Tuff's ultra duty electric coil binding system. Everything you need to produce professional coil binding is included in this system except for your coil and covers, those you can purchase separately for easy customization. Included in the 7000C4 coil binding system is the HD7000 modular punch, coil punch die (4:1 ROUND .250 hole spacing - 0172 hole diameter), heavy duty dual powered adjustable electric coil inserter, FREE crimping pliers and modular mounting kit. The Rhin-O-Tuff 7000C4 is designed for mid to high volume commercial and /or corporate use. A great design feature of the ultra duty 7000C4 is its future ability to be easily adapted and upgraded. MyBinding part number 7000C4.

Product Details

Model: HD7000 ONYX

Coil Die: 000906 4:1 ROUND .250 hole spacing - .172 hole diameter

Coil Inserter : 4170 Heavy Duty dual powered adjustable rollers.

Crimping Pliers: Included.

Punch Capacity Up to 31 Sheets of 20 lb paper

Punch Length: 11" Punching Length with 14" Open Ended Extra Capacity Die

Fully Disengageable Pins:Yes

System Weight: 135 lbs

Total System Dimensions: 13 1/2" x 17" x 16 3/4" (H x W x D)

Manufacturer's Warranty: Three Year Manufacturer Manufacturer's Warranty (1 year on the punching die)

Compatible Supplies: 4:1 Pitch Spiral Coils

Compatible Equipment: Die Sets Ffor Rhin-O-Tuff HD6500 and HD7000

Specifications

Coil Die with easy disengageable pins - Included

Electric Coil Inserter and Crimpers - Included

Attachment kit for mounting coil inserter on top of punch - Included

Automatic and Manual Reverse feature to reduce jamming in the punch

Punches up to 31 Sheets of 20 lb paper

Rate of 25 cycles per minute

Auto and manual reverse clears most punching jams

Quick Change Die System with easy disengageable pins

Accu-Set adjustments on odd size paper

Efficient work environment with a standard foot pedal and optional versa switch

Extreme high capacity Waste Chip Tray with Clear View Access

Heavyweight metal construction

Made in the USA with more than 98% recyclable materials

Video

Rhin-O-Tuff Onyx HD 7000 Unboxing and Assembly Demo Video

Transcript :

Welcome to MyBinding video. This is the all new Rhin-O-Tuff Onyx HD7000, a 14" open ended punch system. In this video, we'll open the box, see what's inside, and put it all together. The entire Onyx line is solid metal and heavy duty. Be sure to have some help in pulling it out of the box. Inside the chip tray, you'll find handles, all in one oil, a power cord, the foot pedal, as well as the reverse knob. Assembly begins with the handles. Remove from their bag and one goes on each side, spinning them all the way in until they're locked shut. It's with these handles you'll lock and unlock the punch die. The machine plugs in on the back side both for the power cord and the foot pedal. For the Onyx HD7000, release the handles and slide the die right in from the right hand side all the way in, and lock the handles by lifting them up. Make sure they snap close. The adjustable knob on the front is the side margin control knob or the paper stop. Finally, should you need it, remove the cap in the front and this is where the reverse knob goes in. An additional option to the HD7000 is the palm switch. This would replace the foot pedal and allow you from the top as you're working with your paper to initiate the punch. There it is. That's the revealing and assembly of the all new Onyx HD7000 by Rhin-O-Tuff. For more demos, reviews, and how-to's, check out MyBinding.com.
