Name: Rhin-O-Tuff Onyx OD4012 11" Electric Punch
Brand: Rhin-O-Tuff
SKU: 04OD4012DA-GRP

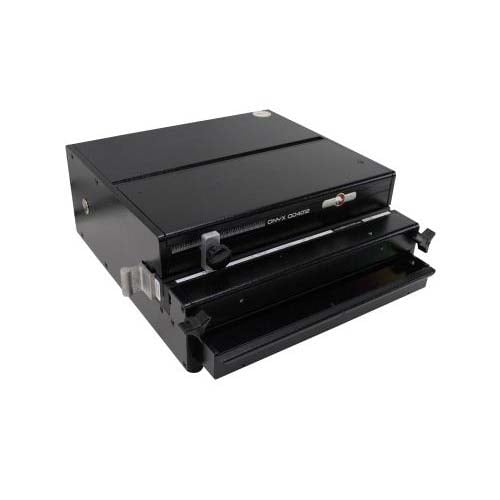

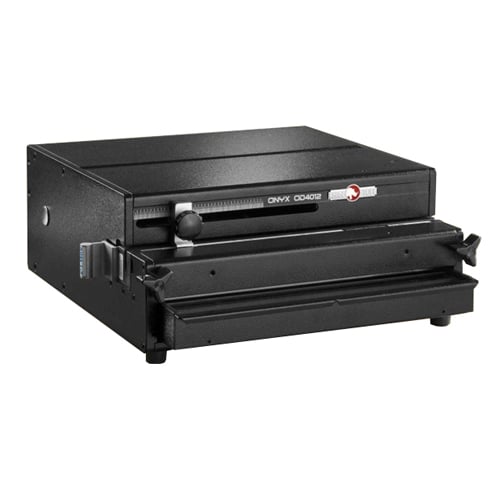

Rhin-O-Tuff Onyx OD4012 11" Electric Punch

$2,677.00

Need Shopping Advice?
Call - (800)944-4573

Punch Pattern: Combination
Punch Capacity: 30 Sheets
Disengageable Dies: Yes
Dies not included. Browse available dies.

SKU

PRODUCT NAME

PRICE

QUANTITY

OD4012-ONYX

Rhin-O-Tuff Onyx OD4012 11" Electric Punch

$2,677.00

74121A

2:1 Round Die Set For Rhin-O-Tuff OD4012

$909.00

74131A

3:1 Round Die Set For Rhin-O-Tuff OD4012

$909.00

74155A

4:1 .248 Round Die Set For Rhin-O-Tuff OD4012

$909.00

74141A

4:1 .250 Round Die For Rhin-O-Tuff OD4012

$909.00

74151A

5mm Round Die Set For Rhin-O-Tuff OD4012

$909.00

74066A

6mm Round Die Set For Rhin-O-Tuff OD4012

$909.00

04235A

Comb Die Set For Rhin-O-Tuff OD4012

$976.00

74131T

3:1 Round Die Set W/ Thumbcut For Rhin-O-Tuff OD4012

$909.00

74115A

4:1 .2475 Round Die Set For Rhin-O-Tuff OD4012

$909.00

74226A

2:1 Rectangle Die Set For Rhin-O-Tuff OD4012

$976.00

74444A

4:1 Oval Die Set For Rhin-O-Tuff OD4012

$1,102.00

04ODA51RO

True 5:1 Round Die Set For Rhin-O-Tuff OD4000 and OD4800

$909.00

74229A

2.5:1 Round Die Set For Rhin-O-Tuff OD4012

$909.00

74531A

3:1 .333 Oval Die Set For Rhin-O-Tuff OD4012

$1,102.00

04100A

Velobind Die Set For Rhin-O-Tuff OD4012

$909.00

74221A

2:1 Square Die Set For Rhin-O-Tuff OD4012

$976.00

74231A

3:1 Square Die Set For Rhin-O-Tuff OD4012

$1,102.00

74945A

4:1 Oval (.250 Pitch) Die for Rhin-O-Tuff OD4012

$1,102.00

04ODADBD

Disc Binding Die for OD4000/4000Plus

$1,102.00

74946A

6mm Oval Die for Rhin-O-Tuff OD4012

$1,102.00

74231T

3:1 Square Die Set W/ Thumbcut For Rhin-O-Tuff OD4012

$1,102.00

74943A

3-5-7 Hole Die for Rhin-O-Tuff OD4012

$909.00

74293A

3:1 Square Pro-Click GBC .1875 x .1875 Die Set For Rhin-O-Tuff OD4012

$1,102.00

MK4000-ONYX

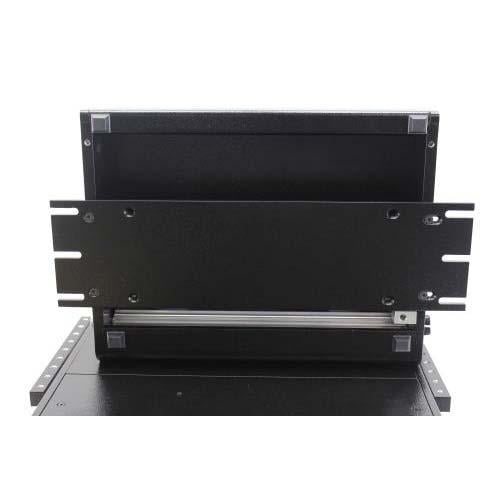

Rhin-O-Tuff Mounting Kit for OD Punches

$106.00

72180

Rhin-O-Tuff Versa Switch for HD7000/HD6500/OD4012 (UL Machines)

$163.00

Product Description

Rhin-O-Tuff Onyx OD4012, the premium efficient open-ended punch machine. 11 inch, A4 size, dies with the open sides design for wider sheet punch freedom. The OD4012 features a user friend and easy "Paper to Pin" construction, creating a well-balanced hole to edge margins, perfecting even on odd-sized documents. With an Incredible punching power capacity of up to 30 sheets of 20 lb paper, 60 pages can be punched at one time with perfect and align holes. Hate the process of changing dies? No problem, so do we. With the Rhin-O-Tuff OD4012, complicated die changing process are over. The swing away die pin retainer system allows for a quick and fast access to all die punch pins. It's as easy as 1-2-3 with the capability to secure the punch pins firmly. 12 standard interchangeable die patterns offer a wide variety of punch styles. Manual and auto-reversing structures eliminating the word "jam" out of this system.

Product Details

Automatic and Manual Reverse feature to reduce jamming in the punch

Punches up to 30 sheets or 60 pages of 20 lb paper

Rate of 25 cycles per minute

Auto and manual reverse clears most punching jams

Quick Change Die System with easy disengageable pins

12 standard hole patterns (Each die is priced and sold separately)

Accu-Set adjustments on odd size paper

Efficient work environment with a standard foot pedal and optional versa switch

Extreme high capacity Waste Chip Tray with Clear View Access

Heavyweight metal construction

Made in the USA with more than 98% recyclable materials

Specifications

Model: OD4012 ONYX

Available Die Sets: 12 Standard Hole Patterns

Punch Capacity Up to 30 Sheets or 60 Pages of 20 lb paper

Punch Length: 11" Punching Length with Open Ended Extra Capacity Die

Fully Disengageable Pins:Yes

Weight: 50 lbs

Compatible Supplies and Accessories:

Actual Machine Dimensions: 9 X 22 X 20

Actual Machine Weight : 40

Shipping Length : 23

Shipping Width: 22

Shipping Height: 13

Shipping (Web) Weight: 50 lbs

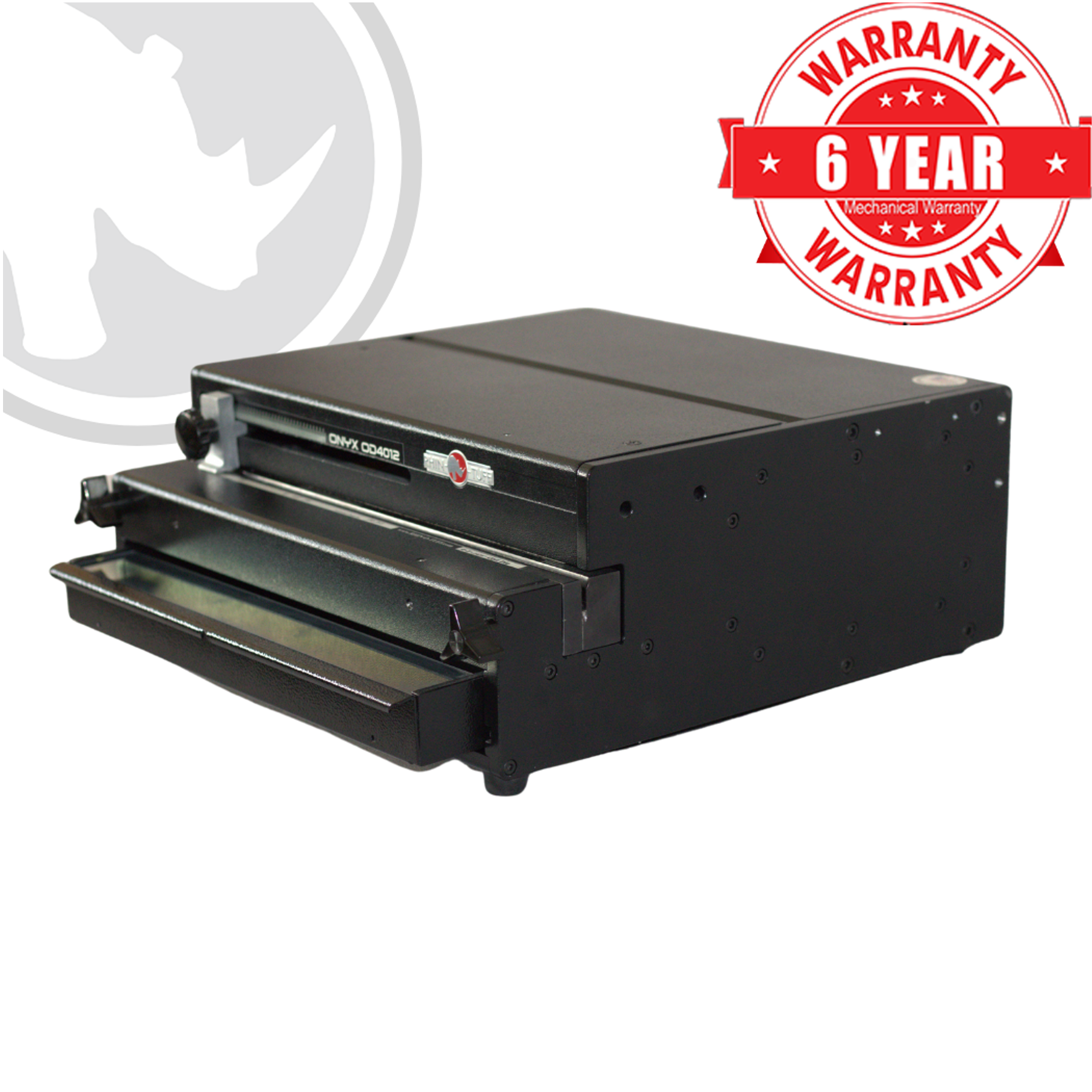

Manufacturer's Warranty: 6 Year Manufacturer's Warranty

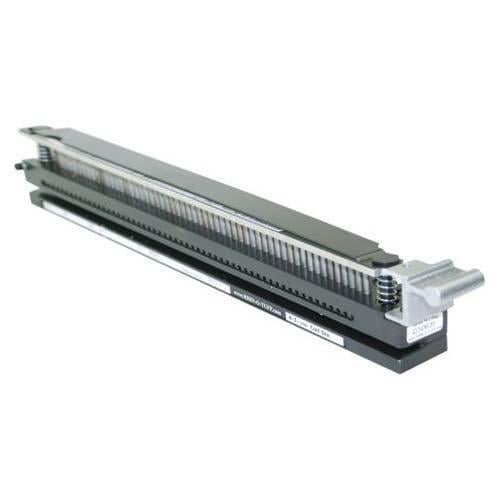

Die Sets

Pattern	Part Number	Hole Spacing	Hole Diameter
3 Hole Round Die	04130A	4-1/4"	5/16"
2:1 Round Hole Die	74121A	.500	.250
3:1 Round Hole Die	74131A	.333	.172
4:1 Round Hole Die	74155A	.248	.188
4:1 Round Hole Die	74141A	.250	.172
5mm Round Hole Die	74151A	5mm	.140
6mm Round Hole Die	74066A	6mm	.172
Velobind Round Hole Die	04100A	1"	.125
Plastic Comb Rectangular Die	04235A	9/16"	.125 x .312
2:1 Pitch Square Hole Die	74221A	.500	.250
3:1 Pitch Square Hole Die	74231A	.333	.156
3:1 Pitch Round Hole Die With Thumbcut	74131T	.333	.172
3:1 Pitch Square Hole Die With Thumbcut	74231T	.333	.156
4:1 Round Die	74115A	.2475	.1719
True 5:1 Round Die	74153A	.200	.1406
2.5:1 Round Die	74229A	.400	.250
2:1 Rectangle Die	74226A	.500	.125 x .250
3:1 Square Die	74293A	.3333	.1875 x .1875
4:1 Oval Die	74444A	.2475	.188 x .157

Resources

Staff Review

Rhin-O-Tuff OD4012 Heavy-Duty Binding Punch Review

A binding punch is a must-have device if you're interested in any of today's most popular document finishing methods (i.e. plastic comb, wire). If you are, you'll want a device such as the Rhin-O-Tuff OD4012. Here's a rundown on this machine, as well as what it gets on a scale of 1 to 10.

There are 12 modular, interchangeable die sets available for the OD4012. They can be used for various binding methods such as plastic comb, Velobind, color coil, and more. There's also a 3-hole die set so you can prepare your documents for storage in binders.
The punching capacity of this device will vary somewhat depending on what die set you're using. However it has the ability to punch up to 25 sheets of paper at once. While this isn't on par with the the Rhin-O-Tuff HD7000 and HD770 punching capacities (they can punch upwards of 50 sheets at once), it's still a respectable amount. Plus, this device can do up to 60 punching cycles per minute, which is pretty good.
The die sets are really easy to change because you don't need to use any tools. It takes only a minute or two to change them out, so you'll be able to switch between binding methods quickly.
The OD4012 has a punching throat that's 12 inches wide. It's perfect for paper that's up to 11 inches long, such as letter-sized (8.5” x 11”). Since the throat is open, it's possible to punch longer paper, especially since the dies have open sides. However, you may find punching longer paper to be a bit challenging.
This machine has a chip tray that allows you see how full it is getting without emptying it. The tray will hold a lot of chips before you need to empty it.
The OD4012 offers both easy and quiet operation. It's quiet enough so it won't disturb everyone around you so productivity can stay up. And it's easy to use thanks to a foot pedal and on-demand operation.
This device is very versatile. If you have any OD4000 or OD4800 dies you can use them with the OD4012. The same goes for any HD modules you may have on-hand. You can attach them right to the machine.
Paper jams won't be a concern because this device has both a manual and automatic reverse that helps you remove any extra paper.
Like most of Rhin-O-Tuff's machines, the OD4012 is solidly built and has been entirely built out of metal parts. It also comes with a six-year warranty so you can get repairs done if necessary.

On a scale of 1 to 10 this machine gets a . . . 9. The Rhin-O-Tuff OD4012 is definitely a solid entry in its lineup of modular binding punches. It has a some really great features such as the interchangeable dies, the large chip tray, and its ability to operate quietly. Punching documents longer than 11 inches will be challenging, but you should be able to get the hang of it. Since this machine has so much to offer, check it out today.
