Compact and Space-Saving Design: Perfect for workshops with limited space, allowing for efficient vertical cutting without compromising on performance.
Powerful 15 Amp Motor: Ensures smooth and precise cuts through various materials, including MDF and plywood, making it ideal for both professionals and DIY enthusiasts.
Integrated Dust Collection: Keeps your workspace clean and free of debris, enhancing safety and visibility during cutting operations.
Durable Construction: Built with a welded steel frame and advanced roller bearing system for long-lasting stability and effortless material movement.
Product Description

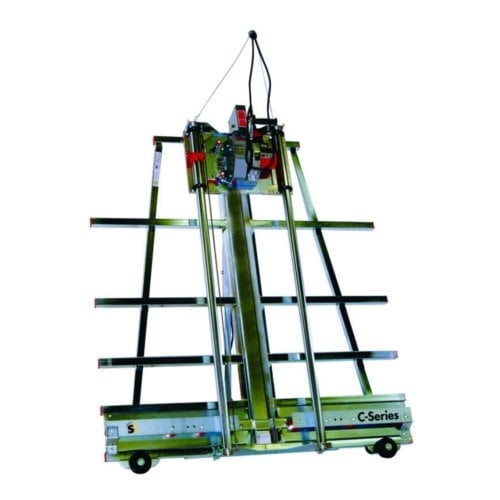

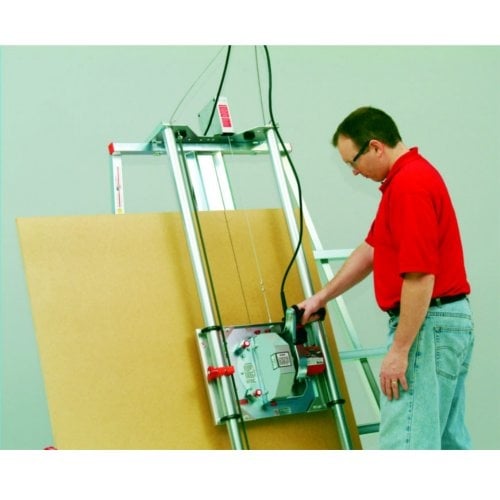

Often, as part of an initial sizing procedure, panel saws are used to cut large sheet materials into smaller rectangular portions and pieces. They consist of a circular saw, a sturdy upright frame for holding the workpiece, and a guided track for precise cutting. Unlike a table saw, where the workpiece moves past the blade, a panel saw remains stationary while the saw moves across it. The Safety Speed C4 Compact 50" Vertical Panel Saw is designed for users with limited floor space or those needing a portable saw for job sites. This compact saw features a 5' frame while maintaining the functionality of full-size saws. It supports a maximum crosscut of 50 inches, a maximum rip cut of 96 inches, and a cut depth of up to 1.75 inches. This makes the C4 ideal for cutting 4' x 8' sheets or materials up to 50" wide. If a larger crosscut is needed, consider the Safety Speed C5, which offers a 64” maximum crosscut. Vertical panel saws are designed with multiple safety features to minimize operator errors. Whether cutting MDF, plywood, or other sheet materials, they provide a safe and efficient cutting experience. The vertical tilt of the machine allows for easier handling of large sheets. Available Accessories Sign Saw Package Hold Down Bar - Holds thin and flexible materials firmly in place for easy safe cutting Quick Stop Gauge - Allows for easy, adjustable repeat cutting Backerboard - Adds extra support for thin and flexible material and shows the cut line of the saw Stand - Allows the machine to freestand in your shop Signmakers Blade - General purpose carbide tipped blade for cutting a wide range of material Knife Kit Quick Change Knife and Saw Motor Mounting Platform Interchangeable Knife/Saw Carriage Backer Board Lower Frame Extensions - Adds 22" to each side of the material rollers Upper Frame Extensions - Adds 22" to the upper square tubing of the frame Wheel Kit - Permits machine to easily be moved in an upright position Dust Collection Kit with (or without) Vacuum Midway Fence - Brings small substrates to waist height to reduce back fatigue Automator (120v Only) - Activates vacuum when panel saw is started and turns it off when saw is deactivated Saw Blades - A wide variety of blades are available to optimize performance for your needs Call us at {{config path="general/store_information/phone"}} so we can help customize your machine to your needs C4 C5 Max. Crosscut 50" (1270mm) 64" (1625mm) Max. Rip Cut 96" (2450mm) Max. Cut Depth 1.75" (45mm) Cut Accuracy (Straight & Square) 1/32" (0.8mm) Saw Blade Diameter 8" (210mm) Motor 3.25 HP, 15 Amp, 120V (220V available) Frame Length 60" (1525mm) Shipping Weight 270 lbs (123 kg) 342 lbs (155 kg)
Product Details
A welded steel, 5’ frame
Ideal for cutting up to 1-3 hours every day
Includes an industrial duty saw motor that is 15 amp and 3-¼ hp
1-¾" steel guide tubes that are zinc plated
4 Nylatron roller bearing system to easily move materials
Vertical and horizontal rulers that are adjustable
Quick change vertical to horizontal cutting
Pressure guard for precise cutting of thin material
Plastic material rollers are injection-molded
Counterbalance system is spring loaded to negate saw weight
Integrated dust collection bonnet
Extended warranty
TUV certified to UL/CSA standards
Specifications
Max. Crosscut: 50" (1270mm)
Max. Rip Cut: 96" (2450mm)
Max. Cut Thickness: 1-3/4" (45mm)
Max Cut Depth: 1-3/4" (45mm) (2" cut depth available upon request)
Cut Accuracy, Straight and Square: 1/32" (.8mm)
Saw Blade Diameter: 8" (210mm)
Motor: 15 amp, 120V (7.5 amp, 220V available upon request)
Frame Length: 60" (1525mm)
Weight: 189lbs.
Shipping Weight: 270lbs. (123kg.)
Dimensions: 11” W x 60” L x 70” H
Rollers: 8
Daily Usage: 1-3 hours
Motor Manufacturer: Milwaukee Tool
Compatible Accessories: Available Upon Request
Video
Safety Speed C4 and C5 Vertical Panel Saws Demo
Transcript :
C4/C5 Panel Saws. When shop space is limited or cutting on site is necessary. Only safety speed cut lets you take the advantages of vertical positioning to the jobsite. The C models are a compact version of the larger models measuring five feet in length with the ability to cut up to four by eight panels, one and three quarte inches thick. The C4 has a 50-inch cross cut capability while the C5 has a full 64 inches of cross cut capacity. Choose the C model with all the features of full-sized panel saws packed into a portable 5-foot frame. Donš™t forget to customize your machine with our full range of accessories and accessory packages to maximize the productivity and versatility of your panel saw.
