Robust Construction: Built with a sturdy 5" welded steel frame for exceptional durability and stability during cutting tasks.
Powerful Motor: Features a 15 amp, 3-¼ hp industrial duty motor for consistent and reliable performance on various materials.
Precision Cutting: Achieve accurate cuts with a cut accuracy of 1/32" (.8mm), ensuring professional results every time.
Enhanced Safety Features: Includes built-in thin material pressure protection and a dust collection hat for a cleaner and safer workspace.
Product Description

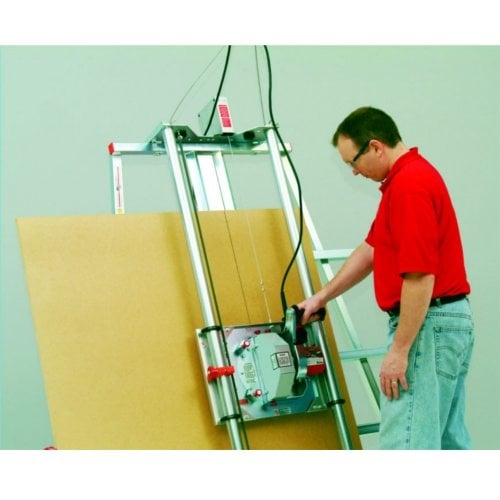

Frequently, vertical panel saws are used to cut large sheet materials into more manageable rectangular parts and pieces as part of an initial sizing step. They consist of a circular saw, a sturdy frame for holding the workpiece, and a guided track for precise cutting. Unlike a table saw, where the workpiece moves past the cutting blade, a panel saw remains stationary while the saw moves across it. Users who need to transport the saw to a job site or have limited floor space may benefit from the Safety Speed C5 Compact 64" Vertical Panel Saw. The C5 Vertical Panel Saw is a portable 5’ frame that retains all the functionality of full-size saws. This model can cut materials up to 1.75 inches thick and has a maximum crosscut of 64 inches and a rip cut of 96 inches. For smaller crosscut needs, the Safety Speed C4 offers a maximum crosscut of 50 inches. Vertical panel saws are built with numerous safety features to minimize operator error. They are designed for cutting MDF, plywood, and other sheet materials in a secure and controlled manner. Thanks to their vertical design, these saws can efficiently handle large sheets. Available Accessories Sign Saw Package Hold Down Bar - Holds thin and flexible materials firmly in place for easy safe cutting Quick Stop Gauge - Allows for easy, adjustable repeat cutting Backerboard - Adds extra support for thin and flexible material and shows the cut line of the saw Stand - Allows the machine to freestand in your shop Signmakers Blade - General purpose carbide tipped blade for cutting a wide range of material Knife Kit Quick Change Knife and Saw Motor Mounting Platform Interchangeable Knife/Saw Carriage Backer Board Lower Frame Extensions - Adds 22" to each side of the material rollers Upper Frame Extensions - Adds 22" to the upper square tubing of the frame Wheel Kit - Permits machine to easily be moved in an upright position Dust Collection Kit with (or without) Vacuum Midway Fence - Brings small substrates to waist height to reduce back fatigue Automator (120v Only) - Activates vacuum when panel saw is started and turns it off when saw is deactivated Saw Blades - A wide variety of blades are available to optimize performance for your needs Call us at {{config path="general/store_information/phone"}} so we can help customize your machine to your needs C4 C5 Max. Crosscut 50" (1270mm) 64" (1625mm) Max. Rip Cut 96" (2450mm) Max. Cut Depth 1.75" (45mm) Cut Accuracy (Straight & Square) 1/32" (0.8mm) Saw Blade Diameter 8" (210mm) Motor 3.25 HP, 15 Amp, 120V (220V available) Frame Length 60" (1525mm) Shipping Weight 270 lbs (123 kg) 342 lbs (155 kg)
Product Details

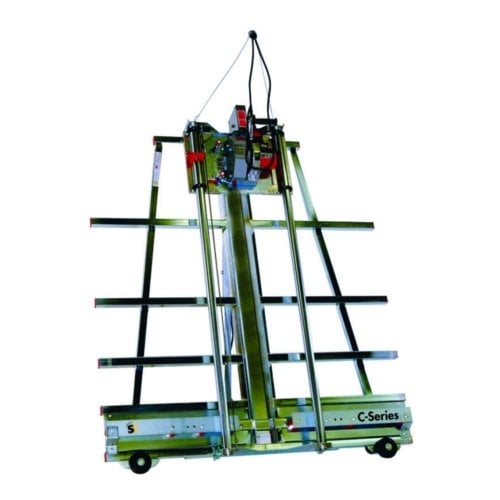

A 5' frame made of welded steel
Perfect for cutting every day for up to one to three hours
Includes a 15 amp, 3-¼ hp, industrial duty saw motor
4 Nylatron roller bearings for easy glide
Adjustable horizontal and vertical rulers
Thin material pressure protection
Rollers made of plastic are injection-molded for smooth finish
Spring-loaded counterbalance mechanism for easy saw manuvering
Built-in dust collection hat
Extended Warranty
TUV certified to UL/CSA standards
Specifications
Max. Crosscut: 64" (1625mm)
Max. Rip Cut: 96" (2450mm)
Max. Cut Thickness: 1-3/4" (45mm)
Max. Cut Depth: 1-3/4” (2" available upon request)
Cut Accuracy, Straight and Square: 1/32" (.8mm)
Saw Blade Diameter: 8" (210mm)
Motor Amperage and Volt: 15 amp, 120V (7.5 amp, 220V available upon request)
Dust Port Outside Diameter: 1-1/2”
Frame Length: 60" (1525mm)
Weight:219 lbs
Shipping Weight: 342 lbs
Dimensions: 60” L x 36” W x 75” H
Daily Usage: 1-3 hours
Rollers: 8
Compatible Accessories: Available Upon Request
Video
Safety Speed C4 and C5 Vertical Panel Saws Demo
Transcript :
C4/C5 Panel Saws. When shop space is limited or cutting on site is necessary. Only safety speed cut lets you take the advantages of vertical positioning to the jobsite. The C models are a compact version of the larger models measuring five feet in length with the ability to cut up to four by eight panels, one and three quarte inches thick. The C4 has a 50-inch cross cut capability while the C5 has a full 64 inches of cross cut capacity. Choose the C model with all the features of full-sized panel saws packed into a portable 5-foot frame. Donš™t forget to customize your machine with our full range of accessories and accessory packages to maximize the productivity and versatility of your panel saw.
