Product Description
This SealerSales HL-M810I Horizontal Dry Ink Coding Continuous Band Sealer is similar to CBS-880 except the feeding is on the left side and this unit is also equipped with a hot ink coding imprinter to print numbers or letters on the seal line. It is suitable for sealing any thermoplastic materials and bags. This sealer can seal 20-30 pcs of 6" wide poly bags in one minute. Can be used in a variety of fields such as the food, medical, and cosmetic industries.
Product Details
- Power: 110V/60Hz
- Motor Power: 50W
- Sealing Speed: 0-472 Inches/Minute
- Seal Width: 8mm
- Sealing Power: 300 x 2
- Temperature Range: 0-300°C
- Conveyor Size: 38" x 6"
- Single Conveyor Load: 2.2 lbs.
- Max Conveyor Load: 6.7 lbs.
- Bag Size (Filled) - Vertical Unit: Minimum - 7 7.8" / Maximum - 12"
- Character Size: 18PT (3 x 5 x 7 mm) - 2 Lines 10.5PT (2 x 3 x 7 mm) - 3 Lines - Optional 20 Character/Line
- Printing Heating Power: 40 x 2
- Dimensions: 37" x 16" x 14" (Horizontal) / 37" x 16" x 26" (Vertical)
Specifications
- Durable stainless steel construction.
- Easy to operate - minimal operator training.
- Fast warm up time.
- Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality.
- Fully adjustable conveyor (the conveyor height and depth in relation to seal bars can be adjusted).
- Motorized rubber conveyor for speed control.
- Knurled pressure rolls with variable pressure adjustment.
- Sealing method - constant/direct heat accompanied with a pair each of cooling and heating blocks.
- Dry ink coding allows for printing on the seal line.
- Unit feeds Left to Right.
- Included with the band sealer is a manufacturer’s kit which includes:
- Typeset Box – 18PT Font
- 5 –Number 0s
- 6 –Number 1s
- 6 –Number 2s
- 4 –Number 3s
- 3 –Number 4-9s
- 1 –EXP, MFD
- 2 –Silicone Pins (Part #BS-59)
- 1 –Tweezer
- 1 –Allen Wrench
- Spare Kit includes: PC Board, PTFE belt, wheel belt, fuse, motor brush, heating element, silica gel ring, silicone pin, tweezers, and type set.
- Options:
- Stainless steel stand for horizontal models.
- Dry ink coding – Font size - 10.5PT.
- Shipping: via freight only.
Video

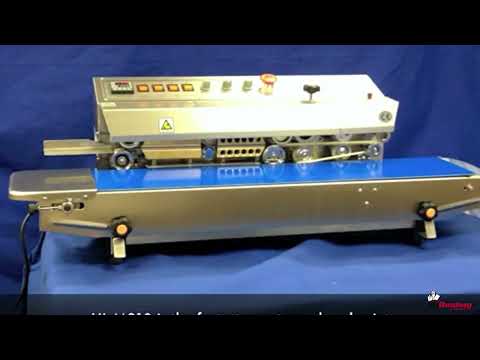

HL-M810 - Horizontal Stainless Steel Band Sealer With Dry Ink Coding
Transcript :
