Tamerica / Tashin TCC230 9" Heavy Duty Pouch Laminator

Name: Tamerica / Tashin TCC230 9" Heavy Duty Pouch Laminator
Brand: Tamerica
SKU: 04TAMTCC230

Product Description

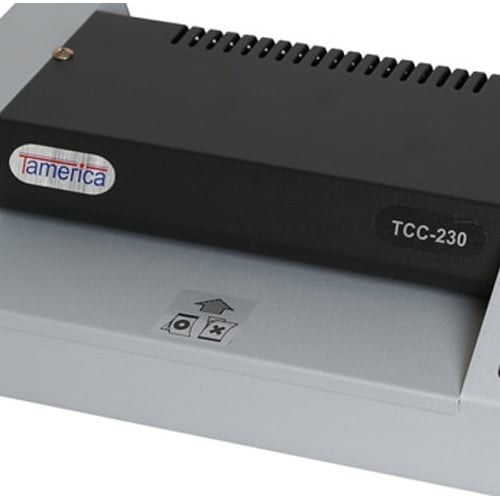

The Tamerica/Tashin TCC230 is an all metal 9" heavy-duty pouch laminator with 4 rollers. This laminator will laminate documents up to 9" wide with pouches from 3mil - 10mil. The Tamerica TCC230 laminator can be used to laminate business cards, luggage tags, recipes, greeting cards, invitations, licenses, catalogs, menus, bookmarks, announcements, membership cards, rotary file cards, sales presentations, newspaper clippings and craft projects.

Product Details

9" Laminating Width.
Laminates up to 10Mil Pouches.
Adjustable Temperature.
Laminates up to 26"/min.
4 Silicon rollers.
5-min. warm up time.
Reverse / Anti-jam Mechanism.
For Moderate Use.
1 Year Manufacturer's Warranty.

Specifications

Lamination Thickness: 10mil
Laminating Width: 9"
Warm Up Time: 5 minutes
Lamination Speed: 26" / min.
Reverse Function: Yes
Heating Method: 4 Rollers
Temperature Range: 77 F - 320 F (25 C - 160 C)
Shipping Length : 19
Shipping Width: 12
Shipping Height: 8
Shipping (Web) Weight: 21 lbs
Power Consumption: 380W
Manufacturer's Warranty: 1 Year Manufacturer's Warranty

Compare to Similar Tamerica Pouch Laminators

Model Name

Model

Lamination Thickness

Laminating Width

Warm Up Time

Lamination Speed

Reverse Function

Heating Method

Temperature Range

Dimensions

Power Consumption

Warranty
TCC6000

10mil

13" (330mm)

5 minutes

38" / min.

Yes

6 Rollers

Adjustable Temperature

25" x 14" x 9"

1000W

1 Year
TCC160

10mil

6"

5 minutes

26" / min.

Yes

4 Rollers

77 F - 320 F (25 C - 160 C)

15" x 12" x 8"

300W

1 Year
TCC230

10mil

9"

5 minutes

26" / min.

Yes

4 Rollers

77 F - 320 F (25 C - 160 C)

19" x 12" x 8"

380W

1 Year
TCC330

10mil

13"

5 minutes

26" / min.

Yes

4 Rollers

77 F - 320 F (25 C - 160 C)

22" x 12" x 8"

470W

90 Day
SM330

10mil

13"

6 minutes

14" / min.

Yes

4 Rollers

77 F - 320 F (25 C - 160 C)

23" x 10" x 7"

300W

90 Day

Video

Transcript :

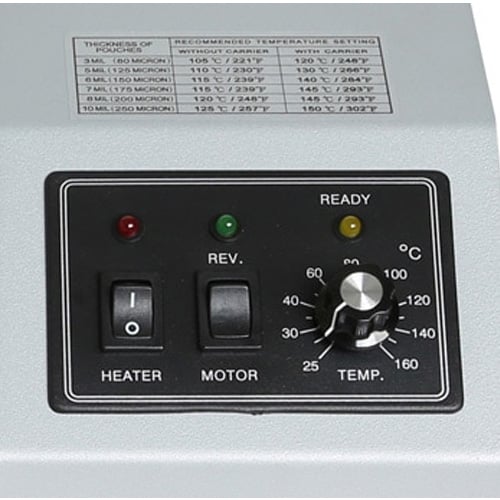

Welcome to MyBinding video. Let's have a look at Tamerica's TCC230, a nine-inch heavy duty laminator. This is a workhorse of a laminator. It can handle anything up to nine inches wide and will run for a long time. Controls are on the front and very simple; forward and reverse motor knob, and a dial that goes up to a 150 degrees. It can be use with or without a carrier and you can see a diagram for both to help you decide what temperature you need. The maximum pouch thickness is 10mil and the warmup time is three-and-a-half to four-and-a-half minutes. Be sure to always put the crease of the pouch into the throat first, then let the machine take it from there. When it comes out the back end, it's completely done; remove it and lay it flat on a surface to cool. It's a great laminator for documents, photos, and anything you might need to preserve. It's excellent for name badges, ID cards, and the like. On a smaller item, such as a name badge, it's best to use a carrier so it does not get lost inside the machine. If your business has a lot of laminating, the Tamerica TCC230 could be a great bet. For more demos, reviews, and how to's, check out MyBinding.com.

Resources

Staff Review

Tamerica TCC230 Heavy-Duty Laminator Review

Tamerica manufactures many pouch laminators including the heavy-duty TCC230. It's a device that may be good fit for you, depending on your needs. Let's see what kind of grade it gets so you can tell if it's the right machine for you.

The TCC230 is a good choice if you want to laminate small items (i.e. bookmarks, name tags, etc.) as well as letter- and legal-sized documents (8.5" x 11" and 8.5" x 14"). It has a 9-inch feed opening that can easily accommodate these types of items, so you'll have a total laminating solution on your hands.
This is also a good machine to use if you want the best possible results every time you laminate. This device has four rollers that will make all of your documents look their best. The rollers not only distribute heat so the adhesive can melt, but they'll also prevent your work from imperfections such as heat marks.
The TCC230 has the ability to warm up very quickly. It will be ready for use in just 3.5 to 4.5 minutes, so you'll be able to get started right away. Your documents will be processed quickly as well because this machine can take care of a 2.17-foot document in just one minute.
Laminating pouches come in a variety of thicknesses, typically from 3 to 10 mil. (A mil is the equivalent of 1/1000th of an inch. The more mils a pouch has, the more sturdy your document will be after it's laminated. ) The TCC230 is compatible with pouches with the above-mentioned thicknesses, so you'll always be able to select just the right pouch for whatever you're laminating.
One of the drawbacks of using the TCC230 is that it doesn't have a cold lamination setting. It operates at temperatures ranging from 77 to 320 degrees Fahrenheit. (Or 25 to 160 degrees, if you prefer the Celsius scale.) Therefore, you can't use pressure-sensitive pouches with it. You should also avoid laminating items that could be damaged by the heat, such as photographs.
This machine won't take up too much room because its dimensions are 19.3" (width) x 12.4" (depth) x 7" (height). It should fit on your work surface without any problems.
The TCC230 has metal parts so you can be sure it's durable and will be able to withstand a lot of use. It would be a great machine to get if you think you'll need to laminate frequently and desire a heavy-duty device.
You can choose to use a carrier - or not - when using this device. However, there isn't really an advantage to not using a carrier and doing so can keep the rollers from getting coated with adhesive.

Final grade: B+. The Tamerica TCC230 would be a natural choice if you need a heavy-duty laminator for working with items that are 9 inches wide or less. You'll be pleased at how great your documents look and how quickly they're processed. Just be aware that this device lacks a cold setting, so there are some items that shouldn't be used with it. As long as that's acceptable, you'll find that the TCC230 will be a good fit for your laminating needs.
