Product Description

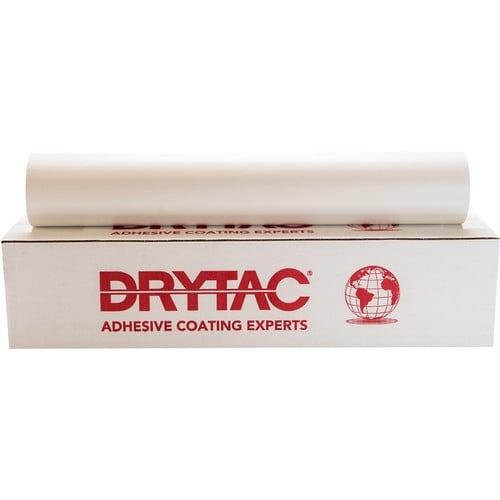

Trimount is a premium quality, multi-purpose 3.0 mil (75 micron) dry mounting tissue. This permanent, breathable tissue is recommended for bonding resin-coated photographs, posters and printed materials to most smooth surface substrates. The pH-neutral heat-activated adhesive will bond at temperatures as low as 185 DegreesF (85 DegreesC). Trimount is suitable for use in all makes of dry mounting presses. Trimount is recommended for bonding RC photographic paper and printed materials to smooth surfaces. It equals or surpasses all dry mounting tissues on the market.
Specifications
- Roll Width: 20.5" - 51"
- Roll Length:150' - 300'
- Carrier: Paper/off-white
- Adhesive Bond: Permanent
- Adhesive Base: Solvent acrylic
- Initial Tack: None
- Precessing Temperature: 85
Specifications
| Part Number | Roll Width | Roll Length | Thickness | Adhesive Base |
| TR20150 | 20.5" | 150' | 3 mil | Solvent acrylic |
| TR25150 | 25.5" | 150' | 3 mil | Solvent acrylic |
| TR25300 | 25.5" | 300' | 3 mil | Solvent acrylic |
| TR25500 | 25.5" | 500' | 3 mil | Solvent acrylic |
| TR36150 | 36.5" | 150' | 3 mil | Solvent acrylic |
| TR36300 | 36.5" | 300' | 3 mil | Solvent acrylic |
| TR41150 | 41" | 150' | 3 mil | Solvent acrylic |
| TR41300 | 41" | 300' | 3 mil | Solvent acrylic |
| TR41500 | 41" | 500' | 3 mil | Solvent acrylic |
| TR42150 | 42.5" | 150' | 3 mil | Solvent acrylic |
| TR42300 | 42.5" | 300' | 3 mil | Solvent acrylic |
| TR51150 | 51" | 150' | 3 mil | Solvent acrylic |
| TR51300 | 51" | 300' | 3 mil | Solvent acrylic |
Technical Data
Trimount is a 2.6 mil (65µ) pH-neutral white mounting tissue, coated on both sides with a heat-activated solvent acrylic adhesive that is tack-free at normal ambient temperature and does not require a release liner.Typical Applications
- For use in all types of dry mounting presses.
- Recommended for bonding resin-coated photographic paper and printed materials to smooth surfaces.
Product Structure
| Adhesive | Solvent Acrylic (Heat Activated) |
|---|---|
| Film | Off White Kraft Paper |
| Adhesive | Solvent Acrylic (Heat Activated) |
Physical Characteristics
| Film Thickness | 2.6 mil (65µ) |
|---|---|
| Adhesive Layer | 0.5 mil (12µ) on each side |
| Film/Adhesive Ratio | 0.5:2.6:0.5 |
| UV Protection Factor | Not Applicable |
| Outdoor Durability | Not Applicable |
| Service Temperature Range | -4°F to 203°F (-20°C to 95°C) |
| Shelf Life | Use within 1 year after opening original box |
| Storage Conditions | 59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity |
Process Settings
| Equipment Type | Temperature | Dwell Time |
|---|---|---|
| Roller Laminator | Not recommended | |
| Press | 185°F to 210°F (85°C to 99°C) | 60 - 90 seconds |
