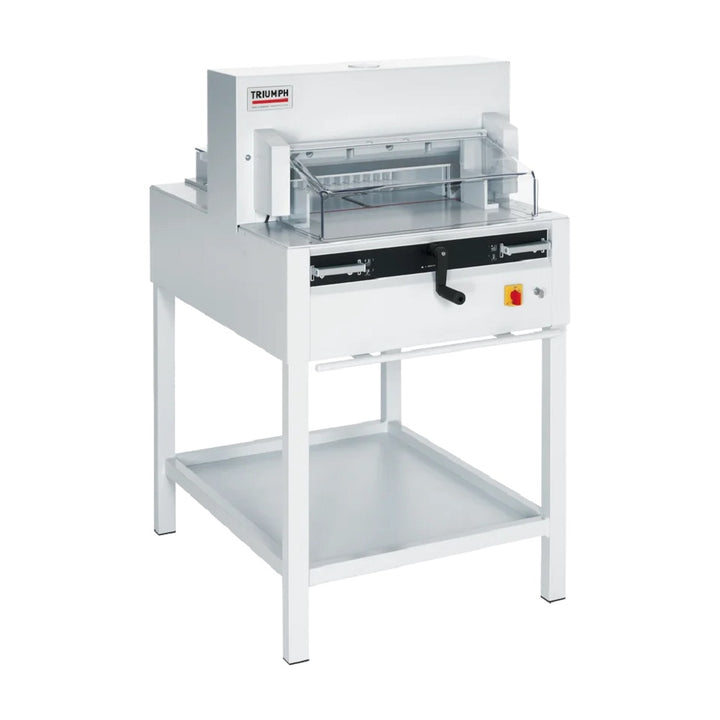

Triumph 4850 18.625" Electric Paper Cutter with Digital Display

Name: Triumph 4850 18.625" Electric Paper Cutter with Digital Display
Brand: MBM
SKU: MBM-4850

Product Description

The MBM Triumph 4850 is a high quality automatic paper cutter with a digital display. Like the entire line of MBM Triumph cutters, the 4850 comes equipped with a great set of safety features to ensure that your hands and fingers are safe during the cutting process. The MBM Triumph 4850 offers a cutting width of almost ninteen inches and can cut through more than a full ream of paper at at time. This cutter offers an automatic electric clamping mechanism to hold your sheets in place during the cutting process. Plus, the digital readout will help you to get the perfect cut every time. Consider adding the MBM Triumph 4850 to your organization today This Model has been updated by MBM. It now features Easy Cut blade activation bars and a tool holder, as a result the model has changed from 4850D to 4850.

Product Details

Cutting Width: 18 5/8"
Cutting Height : 3"
Narrow Cut :1"
Cutting Length Behind Blade: 18"
Motor: 2 hp
Power Supply: 115 V, 60 Hz (20 amp dedicated line required)
Motor output, horsepower: 2
Actual Machine Weight : 546
Shipping Length : 40.5
Shipping Width: 37
Shipping Height: 34
Shipping (Web) Weight: 556 lbs
Manufacturer's Warranty: 1-year limited Manufacturer's Warranty, excluding wearables

Specifications

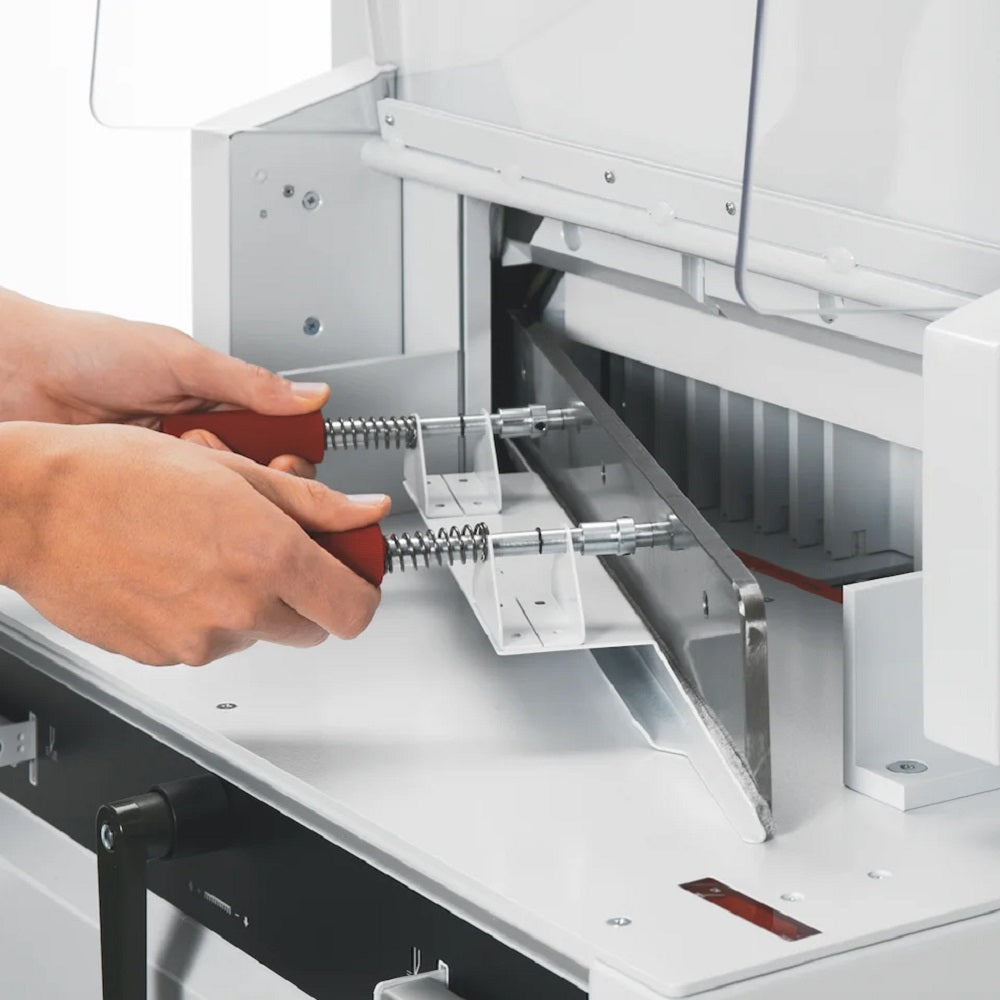

SCS (Safety Cutting System) package: hinged, transparent electronically controlled front safety guard; transparent safety cover on rear table; main switch and safety lock with key; electronically controlled, true two-hand operation; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade return from every position; automatic clamp return from every position; disc brake for instant blade stop; blade and cutting stick can be changed without removing covers; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine
Electric blade and clamp drive
Solingen steel blade
Solid steel bade carrier and adjustable blade guides
Automatic clamp is guided on both sides to apply even pressure along entire cutting width (can be lowered or raised independently from blade)
Dual side guides on front and rear tables

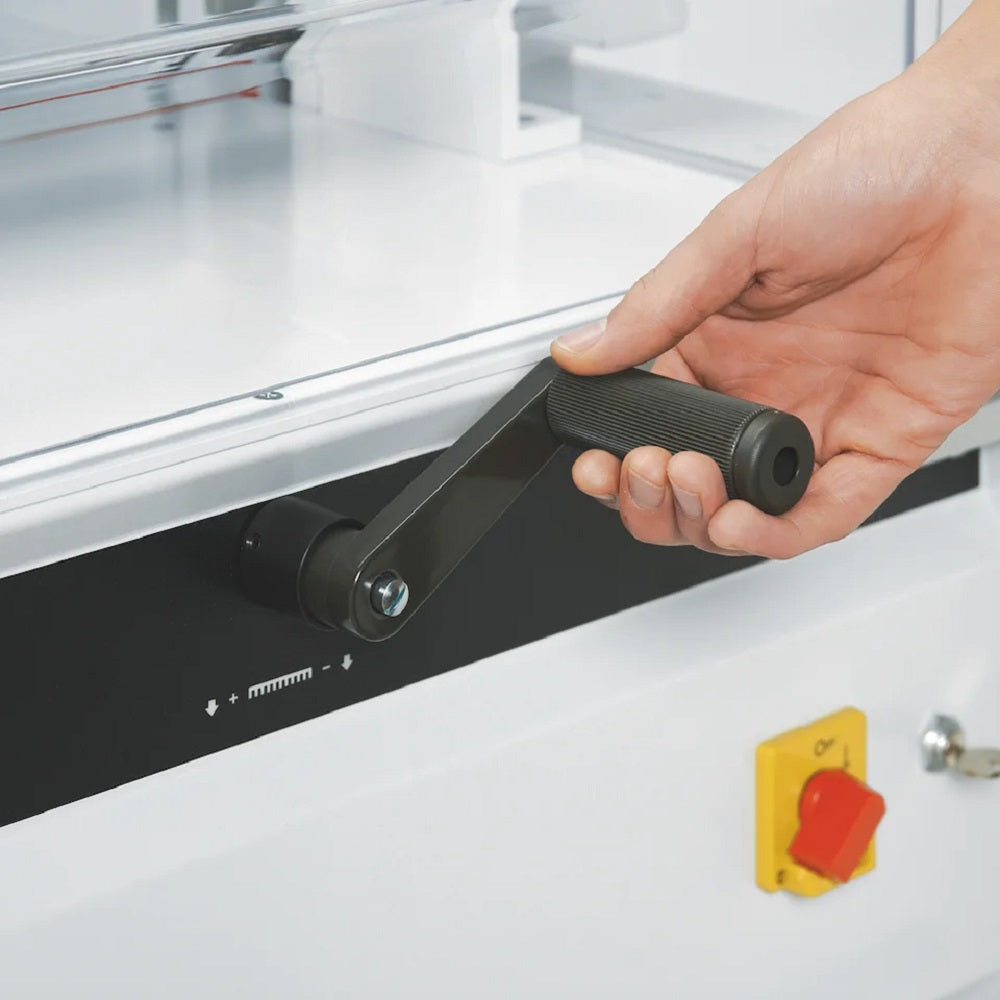

Spindle-guided back gauge with calibrated crank, narrow separations, and plastic gliders

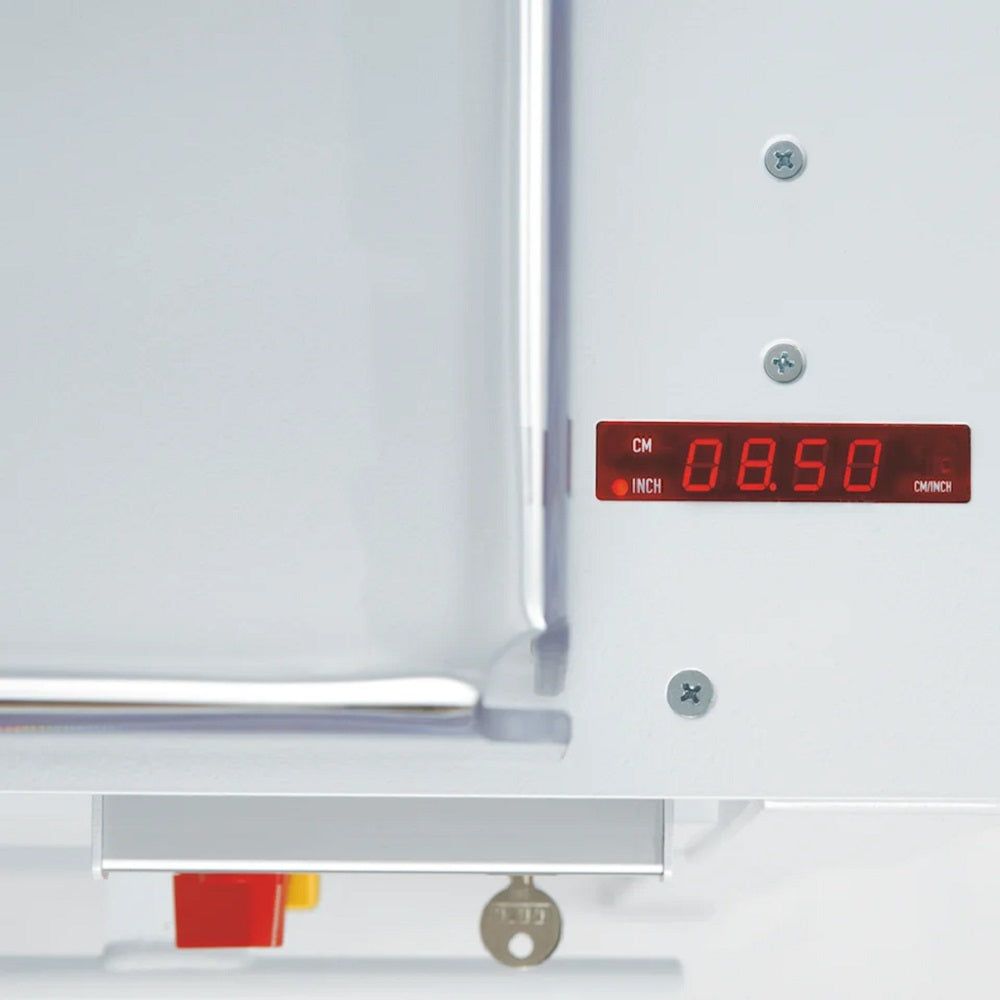

Digital display for precise back gauge positioning

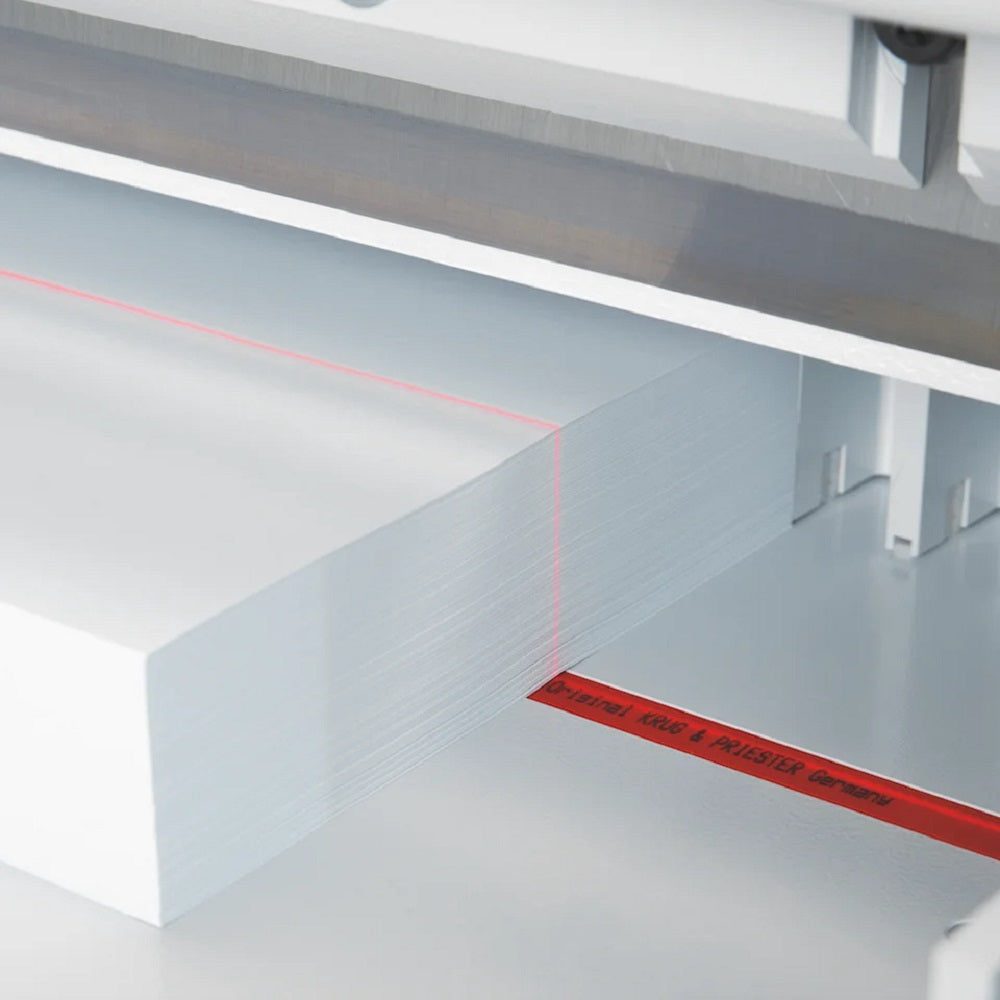

Bright, LED optical cutting line
All-metal construction
Stand with storage shelf
UL and C UL approved

Compare to Similar Paper Cutters

Model Name	Triumph 4850	Triumph 4300	Triumph 4305	Triumph 4705	Triumph 4315	Triumph 4350	Triumph 4815
Model
Part Number	MBM-4850	MB-4300	MB-4305	MB-4705	CU0451	MB-4350	MBM-CU0418
Cutting Width	18 5/8"	16 7/8"	16 7/8"	18 3/4"	16 7/8"	16 7/8"	18 5/8"
Cutting Height	3"	3/4"	1 1/2"	2 3/4"	1 1/2"	1 1/2"	3"
Narrow Cut	1"	1 1/2"	1 5/16"	1 3/16"	1 3/8"	1 3/8"	1"
Cutting Length Behind Blade	18"	13 3/8"	17"	18"	17"	17"	18"
Table Length in Front of Blade		6 1/4"		6 1/4"
Dimensions (D x W x H)	41 1/2" x 30" x 51" (53" W with side tables)	22 1/2" x 28" x 18 1/2" (47 1/2 H with stand, 46 3/4 H with cabinet)	34 5/8" x 34 5/8" x 15 3/4" (45 1/4 H with stand, 44 H with cabinet)	35" x 39" x 23" (50 H with stand)	34 1/4" x 25" x 14" (42 3/4 H with stand, 42 1/2 H with cabinet)	34 1/4" x 25" x 14" (42 3/4 H with stand, 42 1/2 H with cabinet)	41 1/2" x 30 x 55 1/2" (53 W with side tables)

Replacement Blades and Accessories

Product Name	Item Number
Standard Replacement Blade for Ideal MBM Triumph 4700,4705, 4810, 4815, 4850, 4860	JH42216
Replacement Blade (HSS) for Ideal MBM Triumph 4700, 4705,4810, 4815, 4850, 4860	JH42216HSS
Triumph Replacement Blade for 4700 4705 4810 4810EP 4850EP 4860ET	MB-0653
Standard White Cutting Sticks for MBM Triumph 4700, 4810, 4850 OLD - 12pk	JH-CS4492
Premium Red Cutting Sticks for MBM Triumph 4700, 4810, 4850 OLD - 12pk	JH-CS6058
Standard White Cutting Sticks for MBM Triumph 4700, 4810, 4815, 4850, 4860 - 12pk	JH-CS4484
Premium Red Cutting Sticks for MBM Triumph 4700, 4810, 4815, 4850, 4860 - 12pk	JH-CS6050
Cutter Sticks for Triumph 4700 4810 4810EP 4850 4850EP	MB-0675
Side Tables for Triumph 4815, 4850, 4860, 5255, 5260, 6655, and 6660 Paper Cutters	CU0495

Video

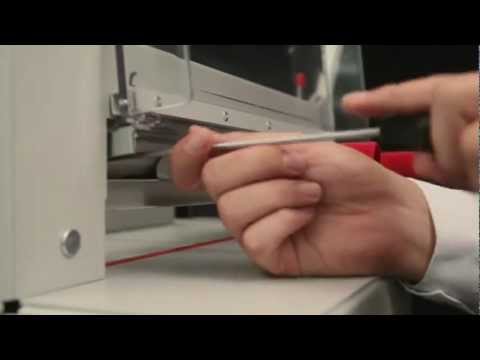

Triumph Cutters 4810 D, 4850 D, 4850 EP and 6550 EP Demo Video

Transcript :

MBM Corporation presents the Triumph Cutters 4810 D, 4850 D, 4850 EP and 6550 EP. The machines in the 48 model line have a cutting width of 18 7/8" and a cutting height of 3". The 4810 D with an electric blade drive and a manual spindle clamping system also has a safety lock and key, a main switch and a hinge transparent safety guard for the front table. These features are all part of the SCS Safety Cutting System. This cutter's cutting length is 17 11/16". The two side guides on both the front and rear tables are especially helpful for the exact positioning of the paper. The hand crank allows users to adjust the precise spindle-guided back gauge quickly and easily to the required cutting position. The optical cutting line with bright and durable LEDs allows quick and convenient cutting and trimming. The disengage mechanism on the crank prevents the measurement from being accidentally altered. The clamp pressure of the manual spindle clamp, which is guided on both sides, can be individually adjusted by the large hand wheel for different paper qualities. If the clamp and the electronically controlled safety cover are closed, the cut is actuated by two push buttons. This electronically controlled true two-hand operation ensures top safety for the operator. Our blades are made of high-quality steel for a perfect cut every time. The 4850 D, with its electric blade drive and automatic clamp, is extraordinarily easy to operate. The automatic clamp can be moved up and down independent of the blade by actuating the corresponding push buttons. When a cut is started, both the blade and the clamp are activated at the same time. The 4850 EP combines all the features of the previous models, plus a programmable power back gauge which ensures optimum workflow. Ninety-nine programs with 99 steps each are available in the program load. Alternatively, the power back gauge can be positioned over the control module by using the key pad or the memory function for repeat cuts. What's more, the back gauge can be manually positioned using the electronic hand wheel with infinitely variable speed control and an accuracy of 100th of an inch. This model is also available as the 6550 EP with a cutting width of 25 Â½" and a cutting length of 24". The SCS Safety Cutting System developed especially for our cutters provides safety even when the machine is not in operation. For instance, the blade depth can be easily adjusted from outside the machine. You can change the blade without removing the machine covers. Our blade changing device covers the cutting edge to make blade changing safe and easy. All these cutters are powered by a single-phase motor. Depending on individual customer requirements, we supply the perfect solution for the exact cutting and trimming of paper stacks or bound brochures. For more information, please check out www.mbmcorp.com. Triumph - Quality Made in Germany.

Resources

Staff Review

MBM Triumph 4850D Electric Paper Cutter Review

A reliable paper cutter is indispensable in many offices, such as print shops and copy shops. MBM's high quality reputation is furthered by the Triumph 4850D Electric Paper Cutter. This device is packed full of safety and automatic features designed to provide you with safe and efficient operation. Here is a closer look at the details of the 4850D.

Strengths:

All Triumph cutters come standard with a Safety Cutting System. This includes a variety of features designed to ensure injury-free operation. Blade, cutting stick, and depth adjustments can all be done without removing the machine's covers, so the sharp knife is never exposed. The clamp returns to position automatically and a disc brake will immediately stop the blade. Transparent safety shields prevent the insertion of fingers into the cutting mechanism. These features as well as a few others work together to keep you safe from harm.
A digital display shows the exact position of the back end gauge. The back gauge is manually adjusted via spindle and uses narrow separations and plastic gliders. The display combined with visual LED cutting lines helps you achieve the perfect cut every time.
Although this cutter has many technical features, it's fairly easy to use. An electric blade and clamp drive provide simple setup. The clamp is automatically lowered and raised separately from the blade. Dual side guiding helps to ensure even pressure is applied throughout the length of the cutter.
The solid steel blade is made from high grade German Solingen steel. This device also has a solid steel blade carrier and adjustable blade guides. Together with all metal construction, these components provide a heavy duty machine that will likely last well beyond the one year warranty.
This cutter can slice through paper almost 19 inches wide. A three inch cutting thickness allows you to cut through a full ream of paper at once with room to spare. Narrow cuts can be as thin as 1.25 inches wide. Behind the blade is 17-11/16" of table space with 13-5/8" in front. It is possible to cut longer items than this, just be ready to catch the excess.

Weaknesses:

The automatic adjustments on this machine are a great addition to any cutter. The only thing that would be nice is the ability to program in frequently used settings for future jobs. This feature can be a luxury or a necessity, depending on your needs. If you're looking for this specific capability, we recommend the 4810EP, which is automatic as well as programmable.
As you might expect from a large piece of office machinery, this device is big and heavy. It weighs over 550 pounds and there aren't casters to help you move it. While this may not be a big issue, it is something to be aware of. This machine won't work well in most smaller spaces.

As you can see from the many strengths, the MBM Triumph 4850D is well-able to handle the high demand cutting needs of any large office. Paper companies, scrapbook product producers, print shops, and any other business needing to cut large quantities of paper regularly could highly benefit from the addition of this machine to their production floor. It provides fast, precise results every time for crisp slices, no matter what size you need. We would highly recommend the 4850D for any large business looking for a heavy duty paper cutter.
