Product Description

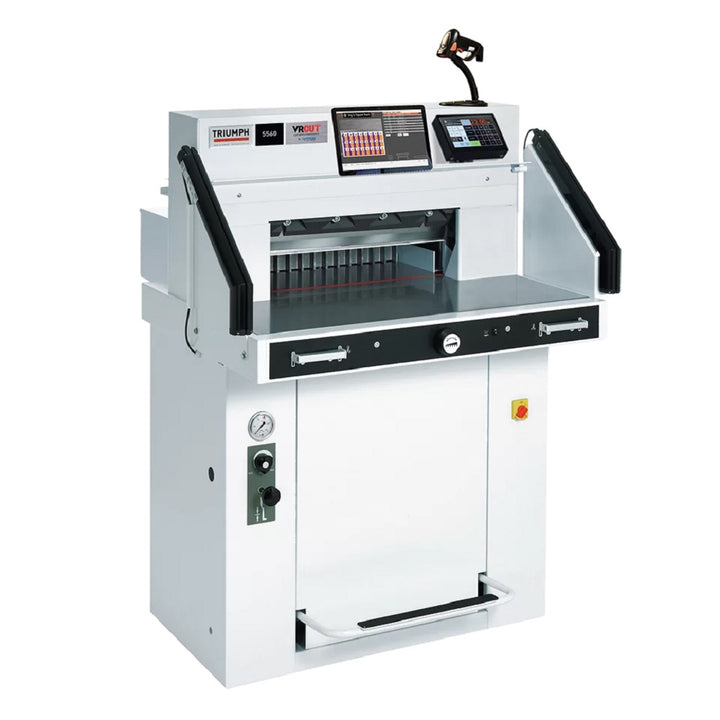

This Triumph 5560 is a 21-5/8" inch programmable paper cutter with hydraulic blade and clamp drive, power back gauge, digital touchpad, and IR safety light beams on front table. The Triumph 5560 has a programmable control module for the power backgauge with multi-lingual touch pad, and 99 programs with 99 steps in each program can be stored. The convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance(including blade changes) within reach. Its Patented EASY CUT blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently. Plus, the German high speed steel blade with swing cut movement provides the highest level of cutting accuracy. Increase your work productivity and output with this Triumph 5560 21-5/8" Programmable Hydraulic Paper Cutter. The Triumph 5560 now comes with a NEW VRCut PC software solution designed to automate the cutting work-flow by promoting an efficient and error-free cutting process from start to finish. VRCut intelligently bridges the gap between pre-press and the finishing process, allowing operatorsof an experience level the ability to cut with confidence. Increase your work productivity and output with this Triumph 5560 21-5/8" Automatic Programmable Cutter.
Product Details
- Type of machine: Programmable Hydraulic
- Cutting Width: 21 5/8"
- Cutting Height: 3 3/4" (3 5/8 with false clamp)
- Narrow Cut: 1 1/4" (2 3/8 with false clamp)
- Cutting Length Behind Blade: 22 7/16"
- Motor Output, Horsepower: 2
- Power Supply: 115V, 60Hz
- Actual Machine Weight : 960
- Shipping Length : 59
- Shipping Width: 47
- Shipping Height: 63
- Shipping (Web) Weight: 970 lbs
- Manufacturer's Warranty: 1-year limited Manufacturer's Warranty, excluding wearables
Specifications
- Adjustable Hydraulic Clamp. Clamping pressure is fully adjustable between 1,900 and 3,800 psi.

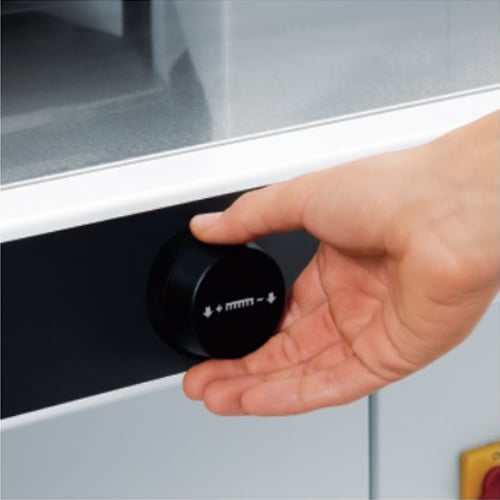

- Electronic Hand Wheel. The electronic hand wheel, with infinitely variable speed control, is used for manual back gauge positioning.
- Easy Cut Blade Activation Bars. Patented EASY CUT blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently.
- Large 7-inch Touch Pad Extremely convenient: Programmable control module for the power backgauge with multi-lingual touch pad. 99 programs with 99 steps in each program can be stored.

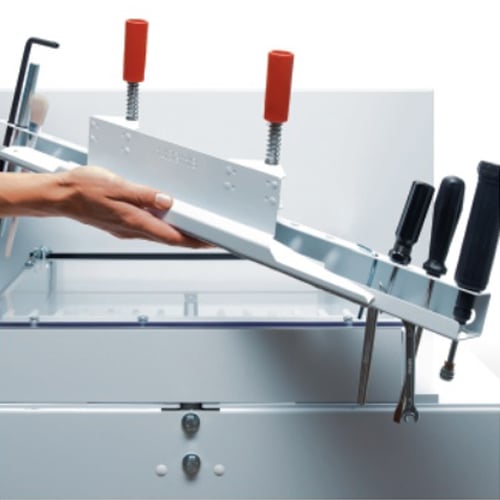

- Tool Holder. Convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance (including blade changes) within reach.
- Swing Cut Blade. The German high speed steel blade with swing cut movement provides the highest level of cutting accuracy.
- VRCUT Impose:
- A barcode is automatically created that can be scanned for error-free job recall on the Triumph cutter.
- As an additional guidance measure, cut sequence numbers and arrows are printed on the sheet to guide the operator.
- VRCUT Controller:
- Current step and cut-line indicator arrow are highlighted in the upper left and hand corner.
- A prominent arrow is displayed if the current step requires a rotation action from the operator.
- Full cut sequence instructions are displayed with the current step highlighted for quick reference.
- An orange line appears indicating the cut line.
- Operator is notified at each step when to discard paper scraps, save cut segments for additional cutting and set aside finished product for shipment.
- Options: Side Tables (CU0440), Cutting Knives (AC0684), Cutting Sticks (AC0678)
- Comes with FREE VRCut Controller Hardware Kit:
- After registering your VRCut license you have the option to order a complete VRCut Controller Hardware Kit at no cost (free shipping included within the United States). The VRCut Controller Hardware Kit comes with everything you need, including a touchscreen PC tablet with VRCut Controller license installed, a barcode scanner, mount and all of the required cabling. Open the box, set up the components, and you’re ready to go!
Main Features
HIGH QUALITY BLADES All Triumph cutter models feature high quality, German steel blades. |
EASY CUT BLADE ACTIVATION BARS Patented EASY CUT blade activation bars provide true two-hand operation (models 4315 and above). |
OPTICAL CUTTING LINE The optical cutting line indicator with bright LEDs ensures perfect alignment of cutting marks (models 4315 and above). |
EASY-TO-USE TOUCHPAD A multilingual, programmable touchpad module controls the back gauge on models 5255–7260. |
IR SAFETY CURTAIN The IR light beam safety curtain covers the work area to ensure the highest level of operator safety (models 5260, 6660, 5560, 7260). |
PROGRAMMABLE BACK GAUGE The 5560/5560 LT and 7260 has a 7" programmable back gauge control module capable of storing 99 programs with 99 steps each in memory. |
Comprehensive SCS Safety Package Features:
- Patented EASY CUT electronic blade activation bars for true two-hand operation.
- IR light beam safety curtain on front table.
- Safety cover on rear table.
- Lockable main switch.
- 24 volt controls (low voltage).
- Patented IDEAL safety drive.
- Automatic blade and clamp return from every position.
- Blade changing device covers cutting edge of blade.
- Blade depth adjustment from outside of machine.
- Blade and cutting stick can be changed without removing covers.
Other Features:
- Hydraulic blade and clamp drive.
- Foot pedal for pre-clamping.
- Electric back gauge drive with touchpad for easy programming.
- Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch.
- Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step).
- Pre-programmed for standard paper sizes.
- Memory key for repeat cuts.
- Automatic SET function for reference measurement and EJECT function for pushing out paper.
- Self-diagnostic system with error indication on display.
- Electronic hand wheel with variable speed control for manual back gauge setting.
- Clamp pressure is fully adjustable between 1,900 and 3,800 psi.
- False clamp plate.

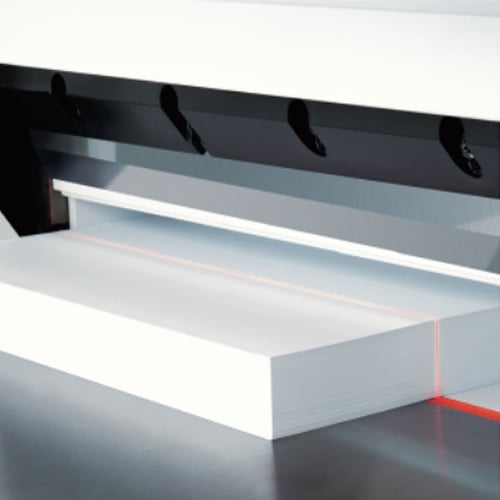

- Bright, LED optical cutting line.
- Stainless steel work surface.
- High quality, German HSS blade.
- Precision swing cut blade movement.
- Aluminum blade carrier and clamp bar.
- Adjustable blade guides.
- All-metal construction.
- Mounted on casters.
- Includes easy-access tool holder and paper blocking tool.
- Optional side tables increase work surface.
- UL and C UL approved.
Compare to Similar Paper Cutters
| Model Name | Triumph 5560 | Triumph 5255 | Triumph 5260 | Triumph 6655 | Triumph 6660 | Triumph 5560 LT | Triumph 7260 |
|---|---|---|---|---|---|---|---|
| Model |  |
 |
 |
 |
 |
 |
 |
| Part Number | CU0493 | MBM-CU0490 | CU0489 | MBM-CU0491 | CU0492 | CU0497 | CU0494 |
| Cutting Width | 21 5/8" | 20 3/8" | 20 3/8" | 25 1/2" | 25 1/2" | 21 5/8" | 28" |
| Cutting Height | 3 3/4" (3 5/8 w false clamp) | 3" | 3" | 3" | 3" | 3 3/4" (3 5/8 w false clamp) | 3" |
| Narrow Cut | 1 1/4" (2 3/8 w false clamp) | 1 3/8" | 1 3/8" | 1" | 1" | 1 1/4" (2 3/8 w false clamp) | 3/4" (3 1/2 w false clamp) |
| Cutting Length Behind Blade |
22 7/16" | 20 3/8" | 20 3/8" | 24" | 24" | 22 7/16" | 28" |
| Dimensions (D x W x H) | 55" x 42" x 54" (64 W with side tables) |
44" x 33 7/8" x 51" (56 1/2 W with side tables) |
44" x 33 7/8" x 51" (56 1/2" W with side tables) |
48" x 39" x 51" (61 1/2 W with side tables) |
48" x 39" x 51" (61 1/2 W with side tables) |
55" x 42" x 54" (64 W with side tables) |
60 1/2" x 51 3/8" x 52 1/2" (63 D, 82 1/2 W with side tables) |
