Product Description

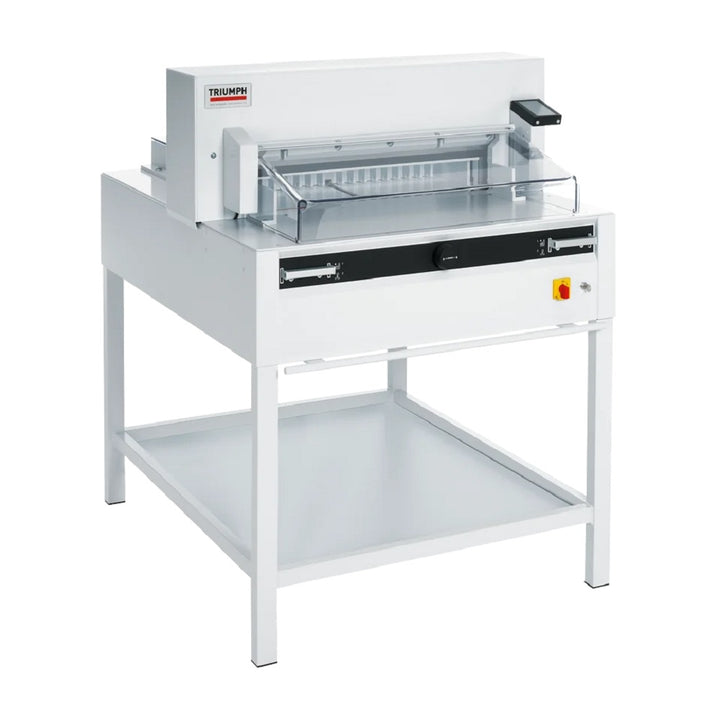

The MBM Triumph 6655 Electric Programmable Cutter includes a number of great features including: a 25 1/2" cutting width that accommodates parent stock, a programmable "EP" back gauge control module with LED display stores 9 programs (up to 9 steps each) and frequently used measurements, a control module that features repeat cut and eject functions, an electric blade, clamp, and back gauge drive, an automatic clamp can be lowered or raised independently from blade and an electronic hand wheel with variable speed control for manual back gauge setting. The 6655 also includes dual side guides on front and rear tables, optical cutting line, solid steel blade carrier and is UL and C UL approved. The Triumph 6655 Electric Programmable Cutter also includes a number of safety features including: external blade depth adjustment, two-hand operation, transparent safety guards on front and rear tables, disc brake for instant blade stop, automatic blade and clamp return from any position, and a safety lock with key and main switch. This Model has been updated by MBM. It now features Easy Cut blade activation bars, touchpad control module and a tool holder, as a result the model has changed to 6655 from 6550 EP
Product Details
- Type of machine: Automatic Programmable
- Cutting Width: 25 1/2"
- Cutting Height: 3"
- Narrow Cut: 1"
- Cutting Length Behind Blade: 24"
- Motor Output, Horsepower: 2
- Power Supply: 115V, 60Hz
- Actual Machine Weight : 757
- Shipping Length : 48
- Shipping Width: 51
- Shipping Height: 34
- Shipping (Web) Weight: 772 lbs
- Manufacturer's Warranty: 1-year limited Manufacturer's Warranty, excluding wearables
Specifications
- Adjustable Hydraulic Clamp. Clamping pressure is fully adjustable between 1,900 and 3,800 psi.
- Electronic Hand Wheel. The electronic hand wheel, with infinitely variable speed control, is used for manual back gauge positioning.
- Easy Cut Blade Activation Bars. Patented EASY CUT blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently.

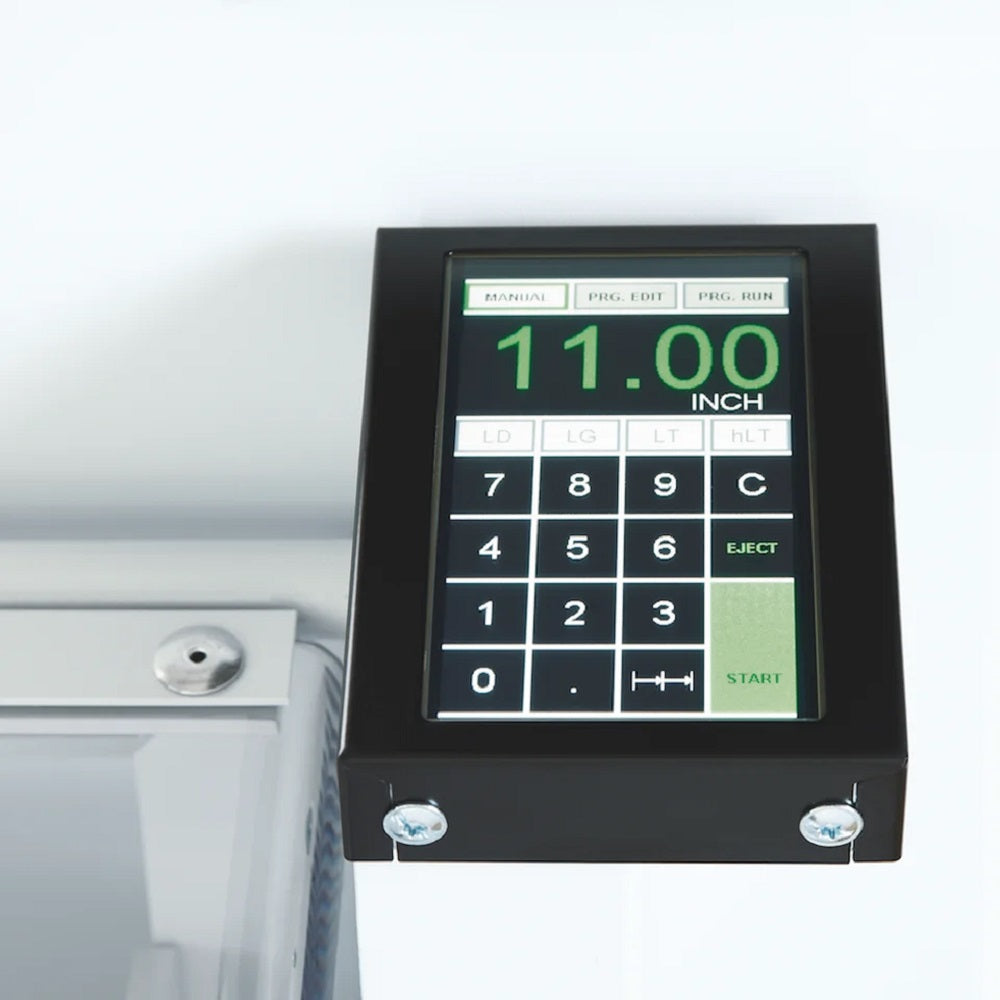

- Large 7-inch Touch Pad Extremely convenient: Programmable control module for the power backgauge with multi-lingual touch pad. 99 programs with 99 steps in each program can be stored.
- Tool Holder. Convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance (including blade changes) within reach.
- Swing Cut Blade. The German high speed steel blade with swing cut movement provides the highest level of cutting accuracy.
- Options: Side Tables (CU0495), Cutting Knives (AC0656), Cutting Sticks (AC0679)
Main Features
HIGH QUALITY BLADES All Triumph cutter models feature high quality, German steel blades. |
EASY CUT BLADE ACTIVATION BARS Patented EASY CUT blade activation bars provide true two-hand operation (models 4315 and above). |
OPTICAL CUTTING LINE The optical cutting line indicator with bright LEDs ensures perfect alignment of cutting marks (models 4315 and above). |
EASY-TO-USE TOUCHPAD A multilingual, programmable touchpad module controls the back gauge on models 5255–7260. |
Comprehensive SCS Safety Package Features:
- Patented EASY CUT electronic blade activation bars for true two-hand operation.

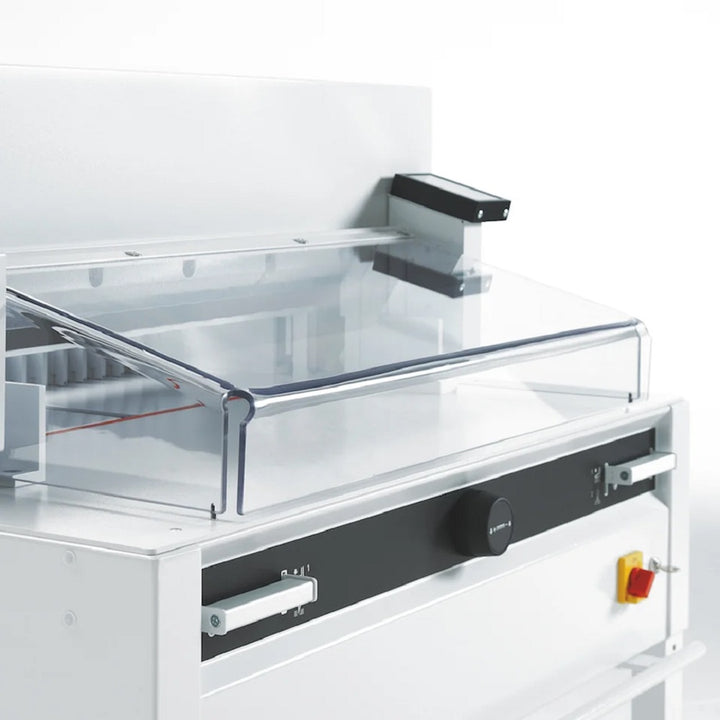

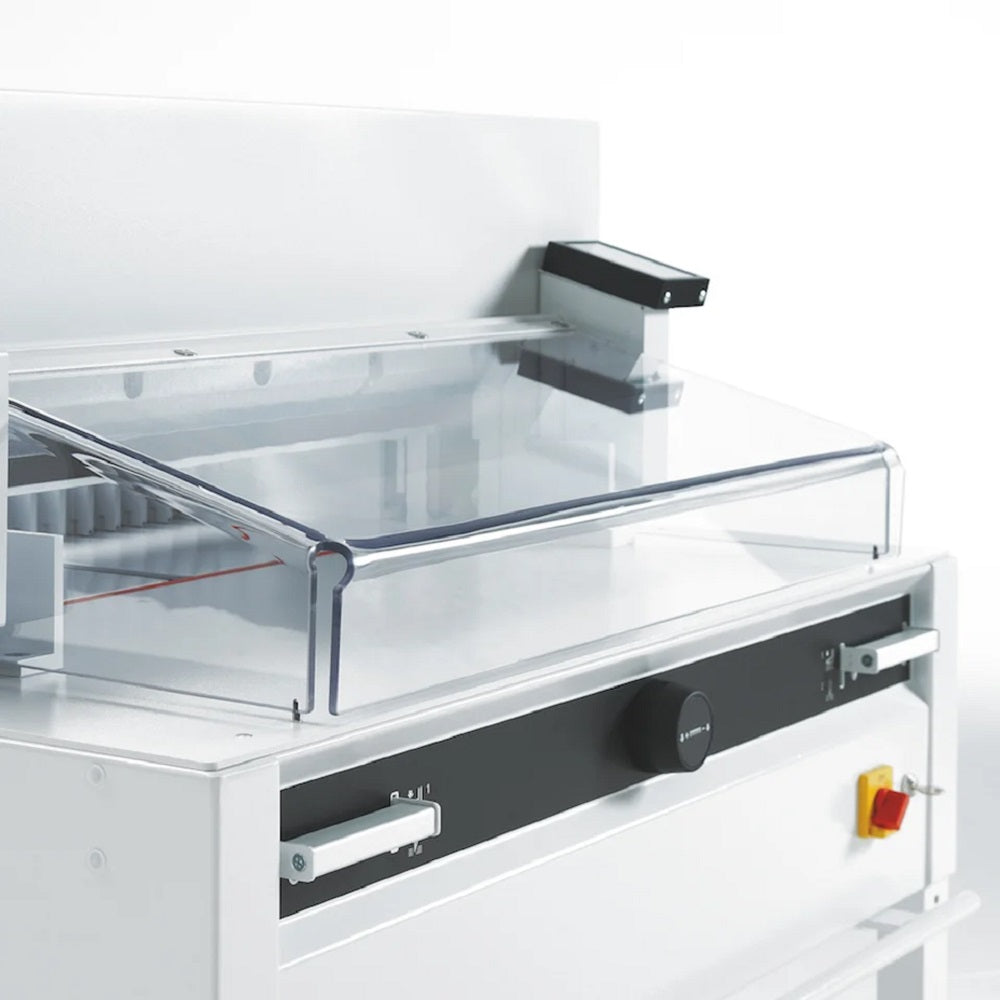

- Transparent, electronically controlled front safety guard.
- Safety cover on rear table.
- Main switch and safety lock with key.
- 24 volt controls (low voltage).
- Patented IDEAL safety drive.
- Automatic blade and clamp return from every position.
- Disc brake for instant blade stop.

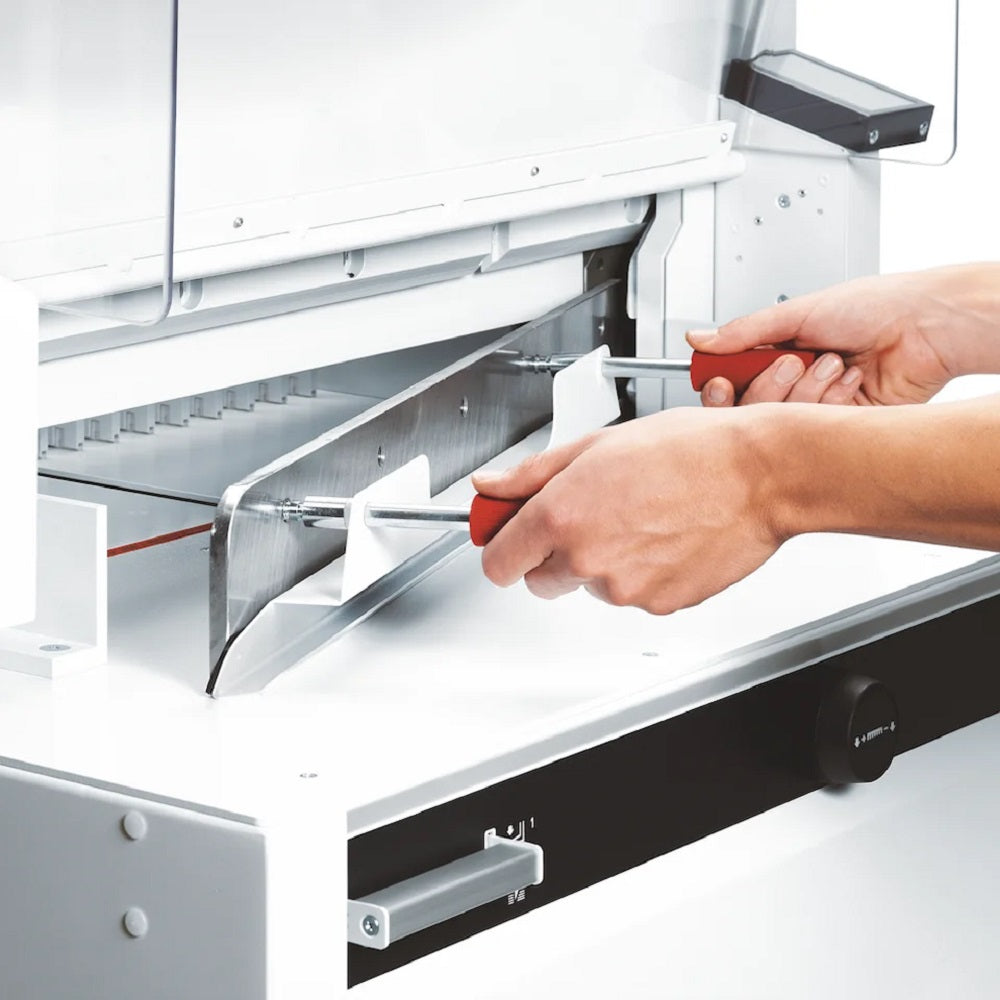

- Blade changing device covers cutting edge of blade.
- Blade depth adjustment from outside of machine.
- Blade and cutting stick can be changed without removing covers.
Other Features:
- Ergonomic, 37 inch working height.
- Electric blade and clamp drive.
- Electric back gauge drive with touchpad for easy programming.
- Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch.
- Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step).
- Pre-programmed for standard paper sizes. Memory key for repeat cuts.
- Automatic SET function for reference measurement and EJECT function for pushing out paper.
- Self-diagnostic system with error indication on display.
- Electronic hand wheel with variable speed control for manual back gauge setting.

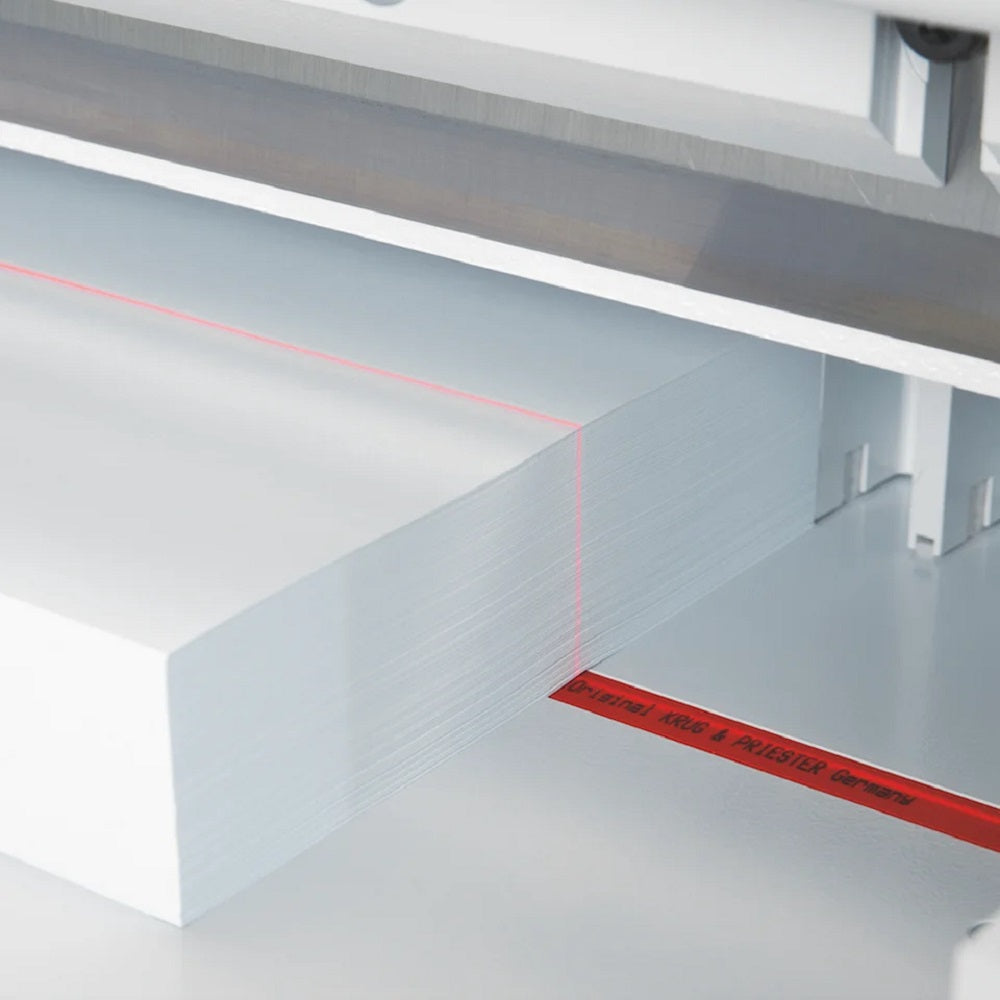

- Bright, LED optical cutting line.
- Adjustable, spindle guided back gauge with narrow separations and plastic gliders.
- Dual side guides on front and rear tables.
- High quality, German steel blade.
- Solid steel blade carrier and adjustable blade guides.
- All-metal construction.
- Includes stand with storage shelf, easy-access tool holder, and paper blocking tool.
- Optional side tables increase work surface.
- UL and C UL approved.
Compare to Similar Paper Cutters
| Model Name | Triumph 6655 | Triumph 5255 | Triumph 5260 | Triumph 6660 | Triumph 5560 | Triumph 5560 LT | Triumph 7260 |
|---|---|---|---|---|---|---|---|
| Model |  |
 |
 |
 |
 |
 |
 |
| Part Number | MBM-CU0491 | MBM-CU0490 | CU0489 | CU0492 | CU0493 | CU0497 | CU0494 |
| Cutting Width | 25 1/2" | 20 3/8" | 20 3/8" | 25 1/2" | 21 5/8" | 21 5/8" | 28" |
| Cutting Height | 3" | 3" | 3" | 3" | 3 3/4" (3 5/8 w false clamp) | 3 3/4" (3 5/8 w false clamp) | 3" |
| Narrow Cut | 1" | 1 3/8" | 1 3/8" | 1" | 1 1/4" (2 3/8 w false clamp) | 1 1/4" (2 3/8 w false clamp) | 3/4" (3 1/2 w false clamp) |
| Cutting Length Behind Blade |
24" | 20 3/8" | 20 3/8" | 24" | 22 7/16" | 22 7/16" | 28" |
| Dimensions (D x W x H) | 48" x 39" x 51" (61 1/2 W with side tables) |
44" x 33 7/8" x 51" (56 1/2 W with side tables) |
44" x 33 7/8" x 51" (56 1/2" W with side tables) |
48" x 39" x 51" (61 1/2 W with side tables) |
55" x 42" x 54" (64 W with side tables) |
55" x 42" x 54" (64 W with side tables) |
60 1/2" x 51 3/8" x 52 1/2" (63 D, 82 1/2 W with side tables) |
