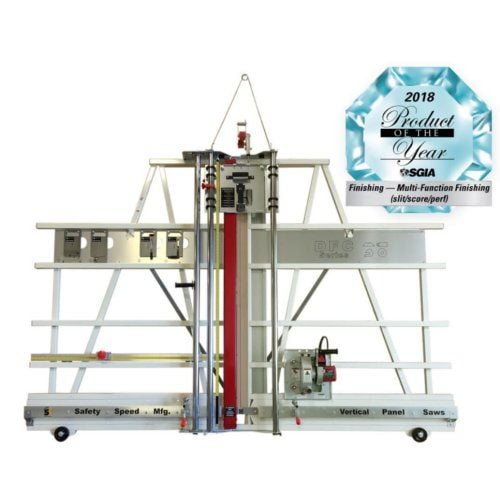

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

Safety Speed DFC-H5 64" Vertical Panel Saw and Dust Free Cutter Combo

$6,989.00

Price Match Guarantee*

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# SS-DFCH5

Versatile Cutting Capabilities: Effortlessly cuts through a variety of materials including wood, PVC, foam board, and aluminum composite panels.
Space-Saving Design: Interchangeable carriage allows for efficient use of workshop space while handling large materials.
Precision Engineering: Achieve flawless cuts with a cut accuracy of 1/32 inch, ensuring professional results every time.
Enhanced Safety Features: Equipped with a dust collection kit and sturdy frame for a clean and safe working environment.

SKU

PRODUCT NAME

PRICE

QUANTITY

05SASSSC41

Safety Speed V-Grooving Blade for SSC165/SSC210/SSC250 and DFC-H5 Substrate Cutters

$109.00

05SASSSC31

Safety Speed Acrylic Scoring Blades (10/Pack) for SSC165/SSC210/SSC250 and DFC-H5 Substrate Cutters

$139.00

05SASSSC91

Safety Speed Aluminum Cutting Wheel Set for SSC165A/SSC210A/SSC250A Substrate Cutters

$139.00

05SASSSC21

Safety Speed ACM Cutting Wheel Set for SSC165/SSC210/SSC250 and DFC-H5 Substrate Cutters

$118.00

05SASDFC4

Safety Speed V-Grooving Cartridge for DFC-H5 Panel Saw/Cutter Combo

$349.00

05SASDFC11

Safety Speed Utility Blade for DFC-H5 Panel Saw/Cutter Combo (10pk) - DFC1-1

$16.50

04SASLLSKR

Safety Speed Laser Guide for DFC-H5, C4KK, C5KK, H4KK, H5KK H6KK Saw and Router Combo Machines

$199.00

Product Description

These ground-breaking devices enable sign shops to process nearly any sign-making material by combining the robust vertical panel saw frame with a strong motor and a replaceable dust-free wall cutter assembly. demonstrating an adaptable carriage that requires less space, rips sheets up to 10 feet long, scores and v-grooves material, cuts numerous sheets, and can rip material up to 1 3/4" thick all day long. With a Safety Speed Vertical Panel Saw, you can cut practically any material straight and squarely in your business without creating any dust or noise. The Safety Speed DFC-H5 helps sign shops to process nearly any sign material by combining the sturdy vertical panel saw frame with a strong motor and an adjustable dust-free wall cutter assembly. It has a space-saving interchangeable carriage that can cut up to 1-3/4" thick material "thick, rips sheets up to 10 feet long, cuts multiple sheets, v-grooves, and scores material all day. DFC-H5 64 with Safety Speed "You can cut almost any material in your shop straight and squarely with a vertical panel saw and a dust-free cutter combo.

Product Details

Ideal Cutting Solution For:

Corrugated Plastic
PVC
Foamboard
Aluminum Composite Panel (ACM)
Aluminum Panel
Wood & MDF Panels
Polycarbonate
Veneer
Laminate
Acrylic
And more...

Substrate Cutter Standard Equipment:

Utility Blade Cartridge (15 heavy-duty blades included)
ACM Cartridge
Scoring Cartridge
Integral Counter Weight
Left and Right Tapes
Removable Clamping Bar System
Two Extra Bottom Clamps

Panel Saw Standard Equipment

3.25 Hp Motor from Milwaukee Tool
Thin Material Pressure Guard
Counter Balance
Dust Collection Kit
1-3/4" Steel Guide Tubes
Roller Bearing Systems
Vertical & Horizontal Rulers
Quick Stop Gauge 5ft
Stand and Wheels
Blade and Backer board

Specifications

Max. Crosscut: 64"/1625mm
Max. Rip Cut: Unlimited
Max. Cut Thickness: 1 3/4"/45mm
Cut Accuracy, Straight and Square: 1/32"/.8mm
Saw Blade Diameter: 8"/210mm
Motor: 15 amp, 120V, 7.5 amp, 220V
Frame Length: 120"/3050mm
Dust Free Cutting: Yes
Weight: 660 lbs
Dimensions: 36”w x 120”l x 90”h
Spiral / Binding101 Part Number: 04SASDFCH5

Video

Product video

Features and Benefits of the DFC-H5 Demo Video

Transcript :

Hello, I'm Steve with Safety Speed Manufacturing, showcasing our DFC H5 vertical panel saw and dust free substrate cutter. Combines an H5 vertical panel saw with a dust free cutter. So we have the three and a quarter horsepower Milwaukee saw motor, you can interchange to a knife plate to use dust free cutting cartridges.
We have three cartridges included. A three blade knife cartridge for PVC, foam board, Coroplast, an ACM dual wheel cutting cartridge, that's for three and four mil ACM, an acrylic scoring cartridge, that's for up to a quarter inch thick acrylic sheet. The saw can cut up to an inch and three quarter inches in thickness, can cut wood, plastics, metal, composite panels.
So standard equipment on the DFC H5 includes a five foot quick stop gauge, which is a sliding stop for repeat cuts, a dust collection system, everything up to the vacuum, two material clamps on the base, wheels for portability, the two black wheels on the base, fixed stand. We're going to start making some test cuts to show a few different materials. All right, now we're going to switch from the saw head to dust free cutting with our cartridges.
So to do that, pull the carriage down. There are two pins on top here, thumb screws. The first blade we'll use is a three blade cartridge for PVC, foam board, and Coroplast.
So I'm looking in here just to set the depth, that window here gives me that sight line. Clamp that in. So this is our acrylic scoring cartridge.
Install that now. And then the key on acrylic scoring is to set the depth of the blades. Let's see, we'll place it on this hook.
This is our ACM dual wheel cutting cartridge for cutting three and four mil thick aluminum composite. Now we'll demonstrate the V grooving cartridge for ACM panels. This is an optional cartridge you can add to the machine.
And the key on V grooving is setting the depth with the sub base. Make sure that's flush with the face of your ACM panel. Lock that into position.
For more information on the DSCH-5 and our other products, visit safetyspeed.com or call 800-772-2327.
