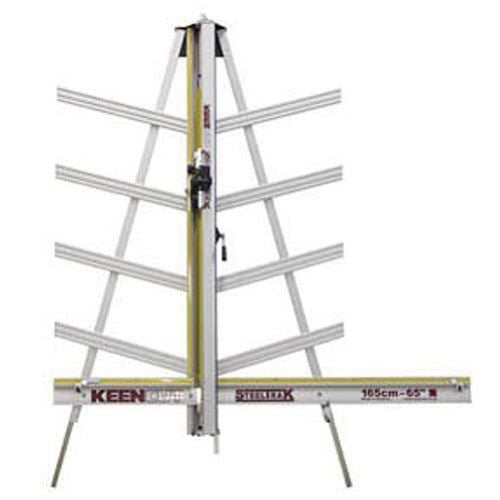

Keencut SteelTrak 65" Vertical Substrate Cutter - ST165
4485 NewCondition InStock

Keencut SteelTrak 65" Vertical Substrate Cutter - ST165

Part #: 60380
Brand: Keencut
Reviews
Rating:
100%
  • Heavy-duty construction to withstand tough use in a production environment
  • Quick payback through reduced waste and cutting time
  • All tools fitted and instantly selectable
  • Max Cut Length: 65"
This Keencut Aluminum Twin-Wheel Cutting Head cuts up to .040 aluminum. Part Number 69127. This is an optional item.
Some materials are notoriously ruff on blades, and the blades may need to be changed often for clean cuts. Be ready, and add the proper replacement blades to your order. Only one is selectable from this list, but all are purchasable on our site separately.
  • 5 Year Warranty
  • Price Match Guarantee
  • Oversize / Truck shipping
  • Brand New
In Stock

$4,485.00

This Item Ships Via Truck
SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
video

Product Description

The SteelTrak gives you the flexibility to cut anything from PVC foamboard to steel composite panels. It’s more accurate, consistent, and reliable than any other machine on the market. In a single movement, you can slice easily through the toughest materials to leave a smooth edge with no need for extra finishing. Its unique features will speed up your production, whilst guaranteeing a perfect cut every time. The SteelTrak is the essential tool for a high-volume production unit.

The newly developed SteelTrak C2 composite cutting head will cut steel composite panel, e.g Multishield and aluminum composite panel, e.g DiBond, in a single pass without creating dangerous sparks or dust. The new cutting head significantly reduces any curvature on the cut material to facilitate successful flat-bed printing and minimize waste. There is no need for extra edge finishing, so productivity is increased, and safety guaranteed.

Note: The SteelTrak is now supplied with the new SteelTrak C2 composite cutting head as standard. Existing SteelTrak users can purchase an upgrade.

Product Details

  • Heavy-duty construction to withstand tough use in a production environment
  • Quick payback through reduced waste and cutting time
  • All tools fitted and instantly selectable
  • Guaranteed for 5 years
  • Materials Cut:
    • Rigid Materials
      • Aluminium composite panel e.g Dibond ≤ 4mm (1/8″)
      • Steel composite panel e.g Multishield ≤ 3mm (3/32″)
      • V-grooves Dibond ≤ 3mm (3/32″) with optional SteelTrak v-groover
      • MDF ≤ 3mm (3/32″)
      • Cast acrylic / Plexiglas (scoring only) ≤ 3mm (3/32″)
      • Glass ≤ 6mm (1/4″) with optional glass cutting kit (Product code: STGLC)
    • Semi-rigid Materials
      • PVC foamboard ≤ 13mm (1/2″)
      • Corrugated/fluted plastic ≤ 13mm (1/2″)
      • Corrugated cardboard ≤ 13mm (1/2″)
      • Foam centred board ≤ 13mm (1/2″)
      • Mountboard ≤ 6mm (1/4″)
      • Aluminium sheet ≤ 1mm (1/25″) with optional cutting head ( Product code: STALC)

Perfect cut every time

To ensure precision accuracy, the SteelTrak’s unique pressure-sensitive clamp can be first applied lightly to allow for fine adjustments, before the pressure is increased for a firm hold. The clamp is designed to protect delicate boards and printed surfaces. The sightline strip helps you achieve exact alignment and all the blades cut along the same line.


Cut steel and aluminium composite safely and accurately

The newly developed SteelTrak C2 composite cutting head will cut steel composite panel, e.g Multishield and aluminium composite panel, e.g DiBond, in a single pass without creating dangerous sparks or dust. The new cutting head significantly reduces any curvature on the cut material to facilitate successful flat-bed printing and minimise waste. There is no need for extra edge finishing, so productivity is increased, and safety guaranteed.

Note: The SteelTrak is now supplied with the new SteelTrak C2 composite cutting head as standard. Existing SteelTrak users can purchase an upgrade from their Keencut dealer.


Saves time and money

In a high production environment, repeatable accurate cutting reduces waste and increases productivity. A pair of left and right-hand production stops and a precise squaring arm allows users to quickly cut boards to a specific measurement. Scoring and cutting blades are permanently mounted for instant use and cut along the same line. With the SteelTrak, there is no need for additional tools or finishing products.


Cut and finish large sheet materials in one pass

For those who need to cut larger sheet materials, the ST250 is the perfect choice. It will cut and finish 2.4m x 1.2m (8’ x 4’) sheet materials in one pass. Both the ST210 and the ST250 are fitted with an extendable arm to allow easy reach to the top of the machine.


Space saving and silent

The upright structure and wall mounting feature saves workshop space. The design uses your body weight to minimise the effort needed to cut tough materials. There is no noise and no need for electric power and the upright design and the low friction bearing system combined together reduces user fatigue.


Sign trays and much more

With the addition of the optional V-groove tool, the SteelTrak creates perfect sign trays, self-standing displays, boxes and exhibition stands. The V-groove tool fits directly onto the SteelTrak cutting head and is ready for action in seconds.


Five year guarantee

By manufacturing in-house, with only the highest quality materials, Keencut can guarantee that the SteelTrak will provide reliable long-lasting and accurate service. All Keencut products are offered with a comprehensive five year guarantee. Register your product to activate your guarantee


In the box

100 medium duty utility blades
Twin wheel cutter
Spare sightline strip

Item Specifications

  • Cut Length cm ("): 165cm (65")
  • A cm ("): 244cm (96")
  • B cm ("): 213cm (84")
  • Wall Mounted – Standard – C: 52-58 cm (20 – 22”)
  • Free Standing – Optional – C: 100 cm (40”)
  • Packed Weight: 75 kg (165 lbs)
  • Packed Dimensions cm ("): 233 x 46 x 35cm (92" x 18" x 14")
  • Old Part Number: 60380
  • New Part Number: ST165

Product Reviews

Reviews
Rating:
100%
Write Your Own Review
You're reviewing:Keencut SteelTrak 65" Vertical Substrate Cutter - ST165
Your Rating

Demonstration Video

Keencut Steeltrak Substrate Cutter Demo Video

Transcript: Keencut Steeltrak is the market leading cutter for rigid and semi rigid materials including composite panels. It quickly and easily cuts thru heavy duty materials making it ideal for many different industries and it comes with a cutting blade, scoring blade, and composite cutting wheels as standard. The Steeltrak will efficiently cut through PVC foamboard, corrugated plastic, and foam center board up to 30 millimeters thick. Aluminum composite panels up to 4 millimeters thick, or NDF up to 3 millimeters thick. The C2 cutting head for SCP cutting reduces off cut man and easily cuts steel and a ... Read More
Keencut Steeltrak is the market leading cutter for rigid and semi rigid materials including composite panels. It quickly and easily cuts thru heavy duty materials making it ideal for many different industries and it comes with a cutting blade, scoring blade, and composite cutting wheels as standard. The Steeltrak will efficiently cut through PVC foamboard, corrugated plastic, and foam center board up to 30 millimeters thick. Aluminum composite panels up to 4 millimeters thick, or NDF up to 3 millimeters thick. The C2 cutting head for SCP cutting reduces off cut man and easily cuts steel and aluminum composite panels without creating sparks or dust. Designed for busy production environment, the Steeltrak is built from durable ionized aluminum, the steel bearing system guides cutting head up and down the machine to ensure perfect plate control and exceptional reliability even with heavy everyday use and has a manually operated cutter, the Steeltrak produces accurate smooth edges without the noise dust and static buildup associated with powered cutters. All the standard options are mounted permanently in the cutting head so switching between the different cutting options is fast, easy, and safe. Aligning materials for an accurate cut is simple, you just use the pressure sensitive clamping system and the side line strip you will see precisely where the cutting mark will be for all fitted blades. The optional composite V grooving tool can be added in seconds. The Steeltrak can be fitted in almost any workshop even mounted to save space or in the free standing configuration. As you will expect from the manufacturers of the world’s finest cutting machines, Keencut offers a comprehensive 5 year guarantee on both Steeltrak parts making the Keencut Steeltrak the future proof investment for any busy production facility.

SteelTrak Vertical Substrate Cutters

Product NameItem Number
Keencut SteelTrak 65" Vertical Substrate CutterST165
Keencut SteelTrak 82" Vertical Substrate CutterST210
Keencut SteelTrak 98" Vertical Substrate CutterST250

Free-Standing Kits and Tool Heads

Product NameItem Number
Free-standing kit for SteelTrak 165cm - 65"FSK160
Free-standing kit for SteelTrak 210cm - 82"FSK210
Free-standing kit for SteelTrak 210cm - 98"FSK250

Product NameItem Number
Steel composite cutting head for SteelTrakSTC2C
Aluminium twin wheel cutting head for SteelTrakSTALC
Glass cutting kit for SteelTrakSTGLC
2mm V-Groove cutting tool for SteelTrakSTVG2
3mm V-Groove cutting tool for SteelTrakSTVG3
4mm V-Groove cutting tool for SteelTrakSTVG4
6mm V-Groove cutting tool for SteelTrakSTVG6

Accessories, Blades & Consumables

Product NameItem Number
Squaring arm extension - 700mm (27.5") for SteelTrakSTSAE
Yellow 'T' shape silicon cord (x 33ft)SILYT
Tungsten Carbide Glass Cutting Wheel (each)CA50-015
Medium Duty Blades (Box of 100)CA50-019
V-Groove Replacement Blade for SteelTrak (x 5)STVGB
Aluminium twin wheel cutter blade set for SteelTrakSTALW
Composite twin wheel cutter blade set for SteelTrakSTCOW
Superior Quality Blades (box of 100)CA50-010
