The SteelTrak gives you the flexibility to cut anything from PVC foamboard to steel composite panels. It’s more accurate, consistent, and reliable than any other machine on the market. In a single movement, you can slice easily through the toughest materials to leave a smooth edge with no need for extra finishing. Its unique features will speed up your production, whilst guaranteeing a perfect cut every time. The SteelTrak is the essential tool for a high-volume production unit.

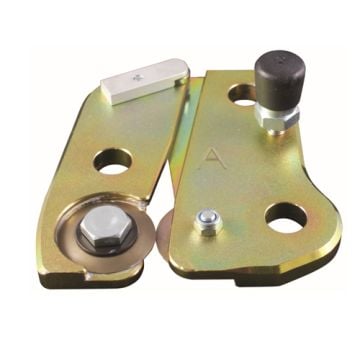

The newly developed SteelTrak C2 composite cutting head will cut steel composite panel, e.g Multishield and aluminum composite panel, e.g DiBond, in a single pass without creating dangerous sparks or dust. The new cutting head significantly reduces any curvature on the cut material to facilitate successful flat-bed printing and minimize waste. There is no need for extra edge finishing, so productivity is increased, and safety guaranteed.
Note: The SteelTrak is now supplied with the new SteelTrak C2 composite cutting head as standard. Existing SteelTrak users can purchase an upgrade.
Product Details
Heavy-duty construction to withstand tough use in a production environment
Quick payback through reduced waste and cutting time
Aluminium sheet ≤ 1mm (1/25″) with optional cutting head ( Product code: STALC)
Perfect cut every time
To ensure precision accuracy, the SteelTrak’s unique pressure-sensitive clamp can be first applied lightly to allow for fine adjustments, before the pressure is increased for a firm hold. The clamp is designed to protect delicate boards and printed surfaces. The sightline strip helps you achieve exact alignment and all the blades cut along the same line.
Cut steel and aluminium composite safely and accurately
The newly developed SteelTrak C2 composite cutting head will cut steel composite panel, e.g Multishield and aluminium composite panel, e.g DiBond, in a single pass without creating dangerous sparks or dust. The new cutting head significantly reduces any curvature on the cut material to facilitate successful flat-bed printing and minimise waste. There is no need for extra edge finishing, so productivity is increased, and safety guaranteed.
Note: The SteelTrak is now supplied with the new SteelTrak C2 composite cutting head as standard. Existing SteelTrak users can purchase an upgrade from their Keencut dealer.
Saves time and money
In a high production environment, repeatable accurate cutting reduces waste and increases productivity. A pair of left and right-hand production stops and a precise squaring arm allows users to quickly cut boards to a specific measurement. Scoring and cutting blades are permanently mounted for instant use and cut along the same line. With the SteelTrak, there is no need for additional tools or finishing products.
Cut and finish large sheet materials in one pass
For those who need to cut larger sheet materials, the ST250 is the perfect choice. It will cut and finish 2.4m x 1.2m (8’ x 4’) sheet materials in one pass. Both the ST210 and the ST250 are fitted with an extendable arm to allow easy reach to the top of the machine.
Space saving and silent
The upright structure and wall mounting feature saves workshop space. The design uses your body weight to minimise the effort needed to cut tough materials. There is no noise and no need for electric power and the upright design and the low friction bearing system combined together reduces user fatigue.
Sign trays and much more

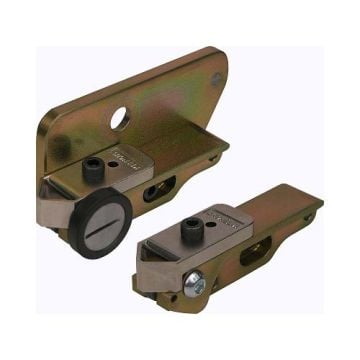

With the addition of the optional V-groove tool, the SteelTrak creates perfect sign trays, self-standing displays, boxes and exhibition stands. The V-groove tool fits directly onto the SteelTrak cutting head and is ready for action in seconds.
Five year guarantee
By manufacturing in-house, with only the highest quality materials, Keencut can guarantee that the SteelTrak will provide reliable long-lasting and accurate service. All Keencut products are offered with a comprehensive five year guarantee. Register your product to activate your guarantee
Packed Dimensions cm ("): 280 x 46 x 35cm (111" x 18" x 14")
Old Part Number: 60385
New Part Number: ST210
Demonstration Video
Keencut Steeltrak Substrate Cutter Demo Video
Transcript :
The Keencut SteelTrak is the market leading cutter for rigid and semi rigid materials including composite panels. It quickly and easily cuts through heavy-duty materials making it ideal for many different industries and it comes with a cutting blade, scoring blade and composite cutting wheels as standard. The SteelTrak will efficiently cut through PVC foamboard, corrugated plastic and foam-centered board up to 13mm thick, aluminum composite panels up to 4mm thick, or MDF up to 3mm thick. The C2 cutting head for SCP cutting reduces offcut bend and easily cuts steel and aluminum composite panels ...
The Keencut SteelTrak is the market leading cutter for rigid and semi rigid materials including composite panels. It quickly and easily cuts through heavy-duty materials making it ideal for many different industries and it comes with a cutting blade, scoring blade and composite cutting wheels as standard. The SteelTrak will efficiently cut through PVC foamboard, corrugated plastic and foam-centered board up to 13mm thick, aluminum composite panels up to 4mm thick, or MDF up to 3mm thick. The C2 cutting head for SCP cutting reduces offcut bend and easily cuts steel and aluminum composite panels without creating sparks or dust. Designed for a busy production environment, the SteelTrak is built from durable anodized aluminum. The steel bearing system guides the cutting head up and down the machine to ensure perfect blade control and exceptional reliability, even with heavy everyday use. And as a manually operated cutter, the SteelTrak produces accurate smooth edges without the noise, dust and static build-up associated with powered cutters. All the standard options are mounted permanently in the cutting head so switching between the different cutting options is fast easy and safe. Aligning materials for an accurate cut is simple, you just use the pressure-sensitive clamping system and the sightline strip. You will see precisely where the cutting line will be for all fitted blades. The optional composite board V-grooving tool can be added in seconds. The SteelTrak can be fitted in almost any workshop, either mounted to save space, or in the freestanding configuration. As you would expect from the manufacturers of the world's finest cutting machines, Keencut offers a comprehensive five-year guarantee on all SteelTrak parts making the Keencut SteelTrak the future proof investment for any busy production facility.
Keencut SteelTrak - Cut and Finish ACM in a Single Pass
Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Press to skip carousel
Production cutting needs with high accuracy for semi rigid and light weight materials. Need to free up space on workbench by folding down. No need for cutting mat - integrate cutting strip included.
General purpose cutting of most standard semi rigid and light weight materials with less need for accuracy. Cutting mat required if using fabric blade.
Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Press to skip carousel
Volume production of rigid and semi rigid materials. Need to V-groove.= 4mm (1/8")= 3mm (3/32")= 6mm (3/32") - with optional v-grooving tool in 5 size= 3mm (3/32")= 3mm (3/32") - Scoring only= 6mm (1/4") - with optional glass scoring kit= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")= 6mm (1/4")= 1mm (1/4") - with optional cutting headN/AN/AN/AN/AN/A100 medium duty utility blades
Some need to cut rigid and semi rigid materials= 3mm (3/32")N/AN/A= 3mm (3/32")= 3mm (3/32") - Scoring onlyN/A= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")N/AN/AN/AN/AN/AN/AN/A100 medium duty utility blades
Production cutting needs with high accuracy for semi rigid and light weight materials. Need to free up space on workbench by folding down. No need for cutting mat - integrate cutting strip included.= 3mm (3/32") scoring with Rocker tool head onlyN/AN/AN/A= 3mm (3/32") - Scoring onlyN/A= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")N/AN/AYesYesYesYesYes100 Graphik blades, double Graphik tool head
Regular cutting needs with high accuracy for semi rigid and lightweight materials. Cutting mat required if using Fabric head.= 3mm (3/32") scoring with Rocker tool head onlyN/AN/AN/A= 3mm (3/32") - Scoring onlyN/A= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")N/AN/AYesYesYesYesYes100 Graphik blades, double Graphik tool head
Portable cutting with high accuracy. Cutting mat required.N/AN/AN/AN/A= 3mm (3/32") - Scoring onlyN/A= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")N/AN/AYesN/AYesYesYes100 Graphik blades, double Graphik tool head
General purpose cutting of most standard semi rigid and light weight materials with less need for accuracy. Cutting mat required if using fabric blade.N/AN/AN/AN/A= 3mm (3/32") - Scoring onlyN/A= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")N/AN/AYesN/AYesYesYes100 medium duty utility blades, 10 Graphik blades, 1 Graphik blade holder, 1 rotary blade holder, 1 medium duty blade holder
Light cutting needs with little accuracy and a high need for portability. Cutting mat required.N/AN/AN/AN/A= 3mm (3/32") - Scoring only with optional SCON/A= 6mm (1/4")= 10mm (3/8")= 10mm (3/8")= 10mm (3/8")N/AN/AYesN/AYesYesYes - with optional textile cutter100 medium duty utility blades
