Rhin-o-tuff Wire Binding

Pitch refers to the spacing between wire loops, with 3:1 pitch using more loops per inch and suiting thinner documents, while 2:1 pitch uses fewer, larger loops better suited to thicker books. Once you've chosen a pitch, your document's binding edge thickness determines which specific die set within that pitch you need, since the wrong wire pitch simply won't match a punched hole pattern designed for the other system. Mixing 2:1 punched holes with 3:1 wire, or the reverse, won't close properly regardless of how the wire is inserted.

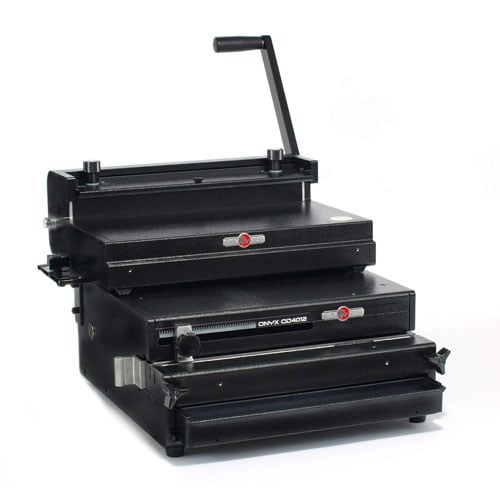

Capacity varies significantly by model, from 30 sheets on the 4012W2/4012W3 systems up to 55 sheets on the 7700-series units, with standard 20lb paper weight behind each of these ratings. Punching consistently at the exact rated maximum accelerates wear on the punch pins and increases jam frequency, so staying somewhat under the rated capacity extends the machine's working life and produces cleaner holes. If your typical documents run thicker than 40 to 50 sheets regularly, sizing up to the next capacity tier avoids straining a lower-capacity unit. For the die sets that pair with each specific punch model, Rhin-O-Tuff die sets break compatibility down by machine.

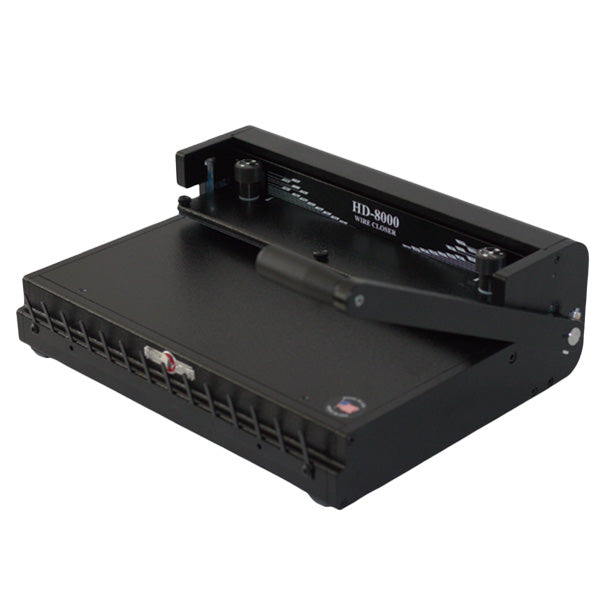

A manual flat bar closer like the HD8000 or HC8024 works well for lower to moderate volume, since it requires feeding and closing wire by hand on each book. A semi-automatic wire inserter and closer, like the HD8370 or HC8318, speeds up repetitive production by combining insertion and closing into a more continuous motion. For occasional binding runs, the manual closer keeps costs down; for regular daily production, the semi-automatic option reduces the physical repetition involved. If a different closing style suits your workflow better, wire closers lay out the broader range of manual and semi-automatic options available.

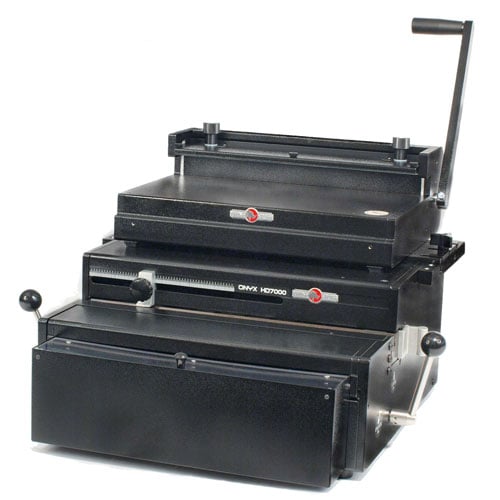

Double loop wire, like the 1-1/4" option used with the 7700W3 system, uses two interlocking loops per hole position rather than one, which creates a noticeably more secure bind that resists pages pulling loose under heavy handling. This matters more for reference materials, manuals, or documents that will be opened and closed repeatedly over a long service life than for short-term or lightly handled documents. Pre-formed spine options in the same double loop style are laid out in twin loop wire binding spines.
