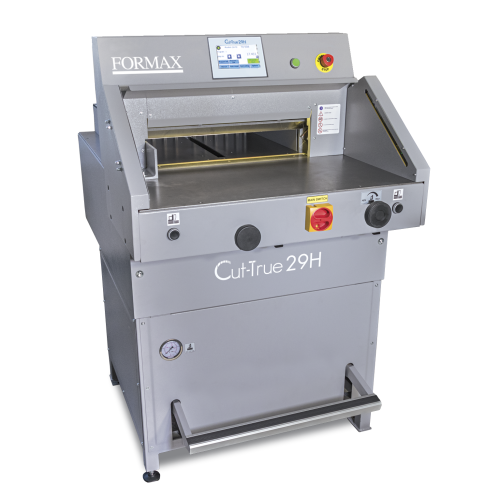

This Formax Cut-True 29H 20.5" Hydraulic Programmable Guillotine Cutter accurately cuts paper stacks up to 3.15" high and up to 20.5" wide. Its user-friendly features include a touchscreen LCD control panel, automatically-adjusting back gauge, the ability to program up to 100 jobs/100 cuts, a LED Cutting Line which shows exactly where the blade will cut, an infrared light beam safety curtain that provides safety and convenience as it shuts down operation if the light plane is interrupted, and a hardened steel blade for crisp, accurate cuts, every time.
The Cut-True 29H has a cutting accuracy of 0.1mm on paper stacks up to 8mm. This programmable cutter features a special anti-friction surface with optional wide side tables, making it easier for operators to maneuver large paper stock. A false clamp is included to minimize the risk of marking sensitive paper stock or perfect bound books. The clamp can be removed to decrease the minimum cut length, and is easily stored within the machine. Plus, it has an internal light to illuminate the cutting area. The Cut-True 29H Cutter uses hydraulic pressure to engage the paper clamp, which is adjustable to give the best possible clamp pressure for different paper weights and stack heights. The 29H also features a foot pedal pre-clamp to check the paper position before cutting. The Cut-True 29H is ideal for transforming large sheets into brochures, invitations and more.
Product Details
Hardened Steel Blade: Designed for accurate cuts and long life
Hydraulically-Controlled: Adjustable hydraulics control paper clamp and blade carrier
False Clamp: Minimizes marking of sensitive paper stock, easily stores within the machine when not in use
Touchscreen Control Panel: Easily set, adjust and program jobs
LED Cutting Line: Bright red LED line indicates exactly where the blade will cut
Solid Steel Blade Carrier
Fine-Tuning Knob: Allows users to precisely adjust the back gauge position
Hydraulic Pressure Gauge Knob: Displays pressure and allows for easy adjustment of clamp pressure
Low-Friction Work Table: Makes it easy for operators to move and position large paper stacks
Internal Light: Illuminates the cutting area
Cutting Capacity: Paper stacks up to 3.15" high, up to 20.5" wide
Automatic Blade Return from Any Position
Programmable Jobs: Up to 100 jobs/100 steps
Foot Pedal Pre-Clamp: Holds paper stack in position to check alignment prior to cutting
Infrared Safety Curtain: Light beam curtain shuts down operation if the plane is interrupted
Two-Hand Operation: Electronically controlled for added safety
Easy Blade Change from Front of Cutter: Blade change safety tool included
Wooden Paper Push Tool: Helps to quickly and safely align the paper stack
Main Switch and Safety Key Lock: Keeps cutter secure from unauthorized operators
Transparent Rear Safety Guard
Options: Wide Side Tables (Pair) - Provide additional space to maneuver larger paper stock
Supplies: (29-10) Replacement Blade and (29-20) Replacement Cutting Sticks, pkg of 8
Item Specifications
Cutting Action: Dual-button hydraulic
Cut Capacity: 700 Sheets
Maximum Cutting Width: 20.5" (520mm)
Maximum Paper Stack Height: 3.15" (80mm)
Programmable Jobs: Up to 100 programs with up to 100 steps each
Touchscreen Features: Program jobs, alternate between inches/mm, paper eject function, programming via cutting, business card cutting mode
Length Behind Blade: 20.5" (520mm)
Length in Front of Blade: 18.25" (464mm)
Minimum Cut w/False Clamp: 2.36" (60mm)
Minimum Cut w/o False Clamp: 1.18" (30mm)
Table Size: 30.75" W x 15.75" D ( 781x 400mm) or 56" W x 15.75" D (1422 x 400mm) w/ optional wide side tables
Back Gauge Adjustment: Fully programmable using touchscreen, accurate to 0.1mm
Blade Change Safety Tool: Included
Dimensions: 49.2" H x 36.75" W x 53.2" D (1250mm H x 934mm W x 1352mm D)
Dimensions w/Optional side tables: 49.2" H x 61.5" W x 53.2" D (1250mm H x 1563mm W x 1352mm D)
Weight: 1,014 lbs. (460kg)
Power Supply: 230V, 50Hz, 20A dedicated line NEMA Plug: 6-20
Manufacturer's Warranty:
90 day limited Manufacturer's Warranty on parts.
Excluding wearables and labor.
Demonstration Video
Cut-True 29H Large Format Guillotine Cutter- Unboxing
Transcript :
29H Unboxing. To set up your Cut-True 29H begin by properly unpacking the cutter. Remove the screws in the top cover. Then, remove the cover. Remove the four side walls of the container. Then, remove the plastic wrapping from the 29H. Remove the accessory box located in front underneath the foot pedal. With the cutter unpackaged remove each of the four bolts that connect the 29H to the pallet. Use a forklift to lift the machine off the pallet. Gently lower the cutter onto the ground. Using a hand truck set the 29H into place. Then, adjust the bottom of the left front leg to level the cutter.
Cut-True 29 A-H Large Format Guillotine Cutters- Blade Change
Transcript :
29 A and 29 H Blade Change. Start by removing the front cover directly underneath the touchscreen removing each screw. Entering knife change mode on the touch screen. Lower the blade and remove the fifth bolt. bNext, raise the blade position and remove the second and fourth bolts from the blade. Then, position the blade change tool over the removed bolt holes and tighten the two handles in position. Once the blade change tool is tightened, loosen the first and third bolts and remove each of them. Then, carefully loosen the two handles of the blade change tool just enough to remove the blade. S ...
29 A and 29 H Blade Change. Start by removing the front cover directly underneath the touchscreen removing each screw. Entering knife change mode on the touch screen. Lower the blade and remove the fifth bolt. bNext, raise the blade position and remove the second and fourth bolts from the blade. Then, position the blade change tool over the removed bolt holes and tighten the two handles in position. Once the blade change tool is tightened, loosen the first and third bolts and remove each of them. Then, carefully loosen the two handles of the blade change tool just enough to remove the blade. Safely set the old blade down and loosen the handles to remove the blade. Then, connect the blade change tool to the new blade and slide the new blade into position one side at a time. Being sure to align the corresponding second and fourth bolt holes and tighten. Replace the first and third bolts to hold the blade in place. Do not completely tighten at this time to allow for blade alignment. Remove the blade change tool by loosening the handles. Then, replace the second and fourth bolts but do not completely tighten at this time. Lower the blade and re-install the fifth bolt. At this time, completely tighten bolts two, three, four and five. Then raise the blade and then completely tighten the first bolt. To finish, exit knife change mode on the touch screen and then reattach the front cover.
Cut-True 29 A-H Large Format Guillotine Cutters- Installing Side Tables
Transcript :
29 A-H Side Tables. To attach the side tables to the 29A and H, begin by removing the bolts from the safety curtains. Once the safety curtains have been removed, remove the screws from the safety curtain covers. Loosen the knots, holding down the light beam sensor into place. Then, unscrew the connector to remove the yellow cable. Guide the yellow cable through the opening in the side table. Align the side table then mounted into place by using the knots and bolts provided. Be sure the side table is flash with the cutter table. With the side table securely in place, feed the yellow cable throu ...
29 A-H Side Tables. To attach the side tables to the 29A and H, begin by removing the bolts from the safety curtains. Once the safety curtains have been removed, remove the screws from the safety curtain covers. Loosen the knots, holding down the light beam sensor into place. Then, unscrew the connector to remove the yellow cable. Guide the yellow cable through the opening in the side table. Align the side table then mounted into place by using the knots and bolts provided. Be sure the side table is flash with the cutter table. With the side table securely in place, feed the yellow cable through the second opening in the side table. Next, screw the cable connector into the top of the safety curtain sensor. Slide the sensor bar back into place and hand tighten the knots to hold it in position. Repeat the same installation steps for the second side table. Align the safety curtain to the side table and screw into place. With safety curtains in position, check to be sure they are properly aligned and working. To test, place your hand between the sensors. You should see a red light go on and off. If the curtains are in place correctly, you should hear a click each time you place your hand between the sensors. If the sensor light does not go on and there is no click, adjust the sensor bars up or down until they align properly. When the sensors are correctly aligned, fasten each of the knots securely to ensure that the sensors will not move. Place the safety curtain covers back into position and carefully screw them back into place.
