Product Description

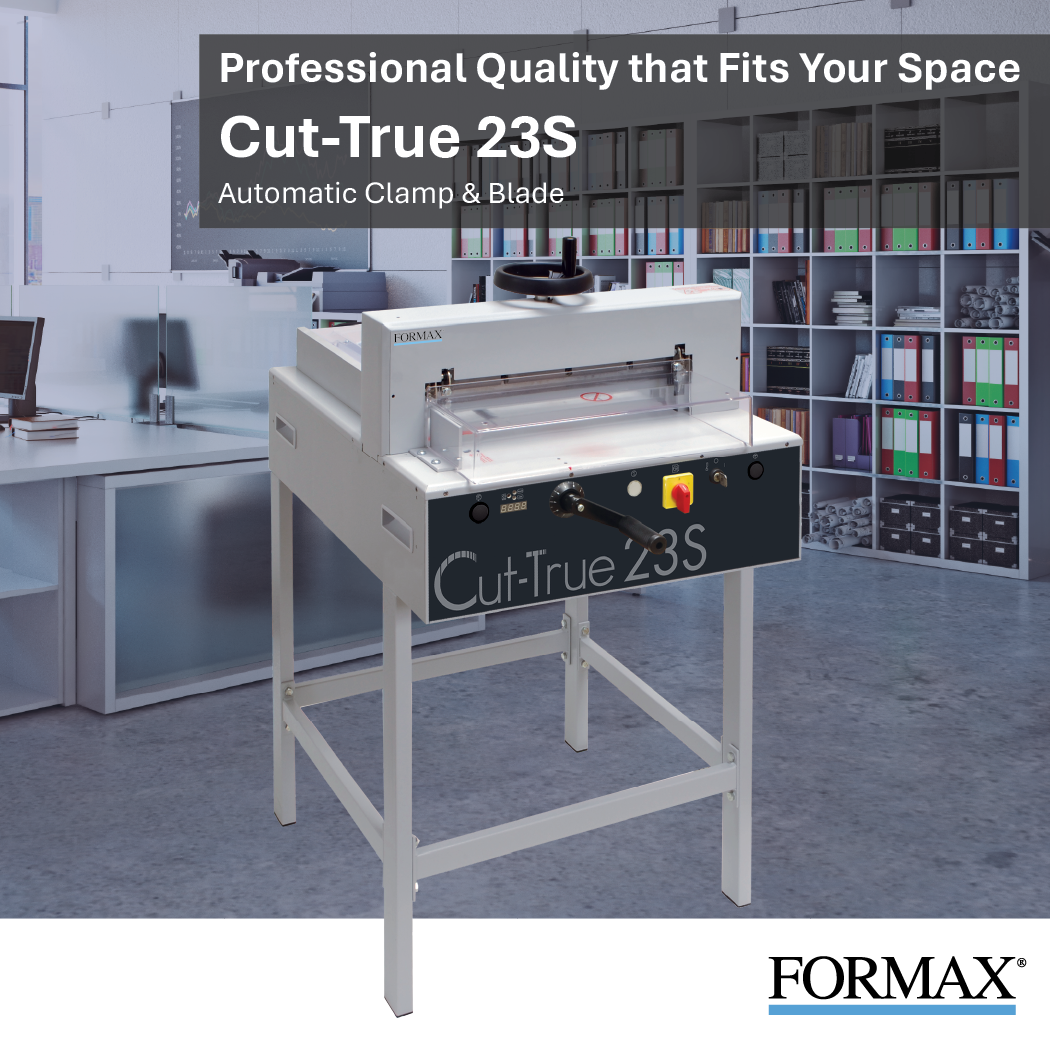

The Cut-True 23S Semi-Automatic Electric Cutter delivers precise cutting for stacks up to 16.9" wide and 1.77" high, with an electronically controlled two-button operation that requires minimal effort. Its hardened steel guillotine blade, spindle-guided back gauge with LED digital display, calibrated scales, and LED Laser Line ensure exact alignment and accurate cuts every time. Safety features include an electronic front safety cover, transparent rear cover, safety lock with key, blade lock, external blade depth adjustment, front-access blade change design, and a wooden paper push for safe alignment. Built for stability and convenience, it comes with a durable metal stand and optional feet for tabletop use. Ideal for print shops and in-plant finishing, it delivers crisp, professional results for brochures, invitations, and other high-quality materials.
Product Details
- Cuts paper stacks up to 1.75” high x 16.9” wide
- Semi-automatic cutting for reduced manual effort
- LED laser line for precise cut alignment
- LED back gauge display for accurate positioning
- Hardened steel blade for long-lasting sharpness

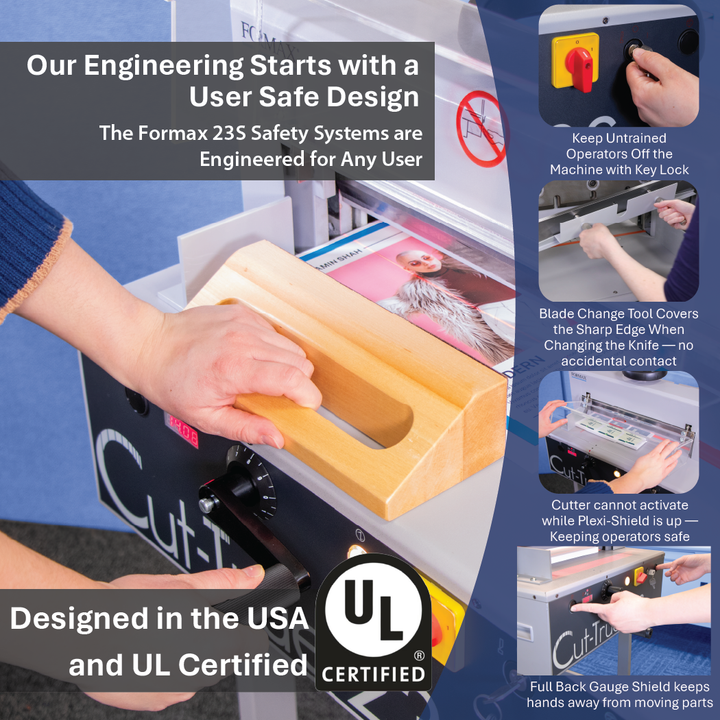

- Keyed safety lock and main power switch
- Front electronic safety guard + transparent rear guard
- Geared clamp keeps stacks firmly in place
- Automatic blade return improves efficiency and safety
- Calibrated scale for fine adjustments
- Paper size markings for quick setup
- Adjustable blade guides for consistent accuracy
- Wooden paper push for safe alignment
- Blade change safety tool included
- Includes all-metal stand and tabletop feet for flexible setup
Specifications
- Cutting Action: Dual-button electric
- Maximum Cutting Width: 16.9" (429mm)
- Maximum Paper Stack Height: 1.75" (44mm)
- Cutting Length Behind Blade: 17" (432mm)
- Table Size in Front of Blade: 8.25" (210mm)
- Narrow Cut: 1.89" (48mm)
- Table Size: 24.6" W x 27.5" D (625 x 699mm)
- LED Cutting Line: Yes
- Clamp Style: Spindle-guided clamping wheel
- Back Gauge Adjustment: Manual crank
- Back Gauge Reading: Digital readout, in both standard and metric
- Blade Change Safety Tool: Included
- Dimensions: 46.75”H x 24.75” W x 33” D (1187 x 629 x 838mm)
- Weight: 198.6 lbs (90kg)
- Power Supply: 110V
- Safety Certifications: UL Approved
- Spiral / Binding101 Part Number: 04FXCT22S
Replacement Blades and Accessories
| Product Name | Item Number |
| Formax Cut-True 22S Replacement Blade | FDCT22S-10 |
| Formax Cut-True 15M/22S Cutting Sticks - 8pk | FDCT15M20 |
Compare to Similar Formax Guillotine Paper Cutters
| Model Name | Cut-True 31HE | Cut-True 29H | Cut-True 29A | Cut-True 27S | Cut-True 22S | Cut-True 16M | Cut-True 15M | Cut-True 13M |
|---|---|---|---|---|---|---|---|---|
| Model |  |
 |
 |
 |
 |
 |
 |
 |
| Cutting Action | Dual-button electric | Dual-button electric | Dual-button electric | Dual-button electric | Dual-button electric | Manual lever handle | Manual lever handle | Manual lever handle |
| Maximum Cutting Width | 28.7” | 20.5" | 20.5" | 18.9" | 16.9" | 18.7" | 16.9" | 14.5" |
| Cutting Capacity | 1000 Sheets | 700 Sheets | 700 Sheets | 700 Sheets | 440 Sheets | 700 Sheets | 600 Sheets | 370 Sheets |
| Maximum Paper Stack Height | 3.94” | 3.15" | 3.15" | 3.15" | 1.75" | 3.15" | 2.15" | .75" |
| Cutting Length Behind Blade | 26.5” | 20.5" | 20.5" | N/A | N/A | N/A | N/A | 10.5" |
| Length in Front of Blade | 25” | 18.25" | 18.25" | N/A | N/A | N/A | N/A | 1.25" |
| Programmable Jobs | Up to 100 programs with up to 100 steps each | Up to 100 programs with up to 100 steps each | Up to 100 programs with up to 100 steps each | N/A | N/A | N/A | N/A | N/A |
| Minimum Cut w/False Clamp | 2.36” | 2.36” | 2.36” | N/A | N/A | N/A | N/A | N/A |
| Minimum Cut w/o False Clamp | 1.18” | 1.18” | .98" | N/A | N/A | N/A | N/A | N/A |
| Narrow Cut | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 1.25" |
| LED Laser Cut Line | N/A | N/A | N/A | Yes | Yes | Yes | Yes | Yes |
| Clamp Style | Automatic, hydraulic | Automatic, hydraulic | Automatic, electronically adjustablee | Automatic | Spindle-guided clamping wheel | Spindle-guided clamping wheel | Spindle-guided clamping wheel | Lever |
| Back Gauge Adjustment | Fully programmable using touchscreen, accurate to 0.1mm | Fully programmable using touchscreen, accurate to 0.1mm | Fully programmable using touchscreen, accurate to 0.1mm | Manual crank | Manual crank | Manual crank | Manual crank | Thumbscrew |
| Back Gauge Reading | N/A | N/A | N/A | Digital readout, in both inches and metric | Digital readout, in both inches and metric | Scale, in both inches and metric | Scale, in both inches and metric | Scale, in both inches and metric |
| Dimensions | 73” W x 69” D x 56.9” H | 49.2" H x 36.75" W x 53.2" D | 49.2" H x 36.75" W x 53.2" D | 51" H x 36" W x 39" D | 46.75" H x 24.75" W x 33" D | 46.25" H x 39" W x 35" D | 42.5" H x 26.8" W x 29.1" D | 12.75" H x 18.75" W x 17.5" D |
| Weight | 1,323lbs. | 1,014 lbs. | 683 lbs. | 550 lbs. | 198.6 lbs. | 199 lbs. | 133 lbs. | 38 lbs. |
| Safety Certifications | N/A | N/A | CE approved, UL pending | CE approved, UL pending | CE approved, UL pending | CE approved | CE approved | CE approved |
| Warranty | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. |
