Formax Cut-True 27S 19" Electric Paper Cutter with Laser Precision

Name: Formax Cut-True 27S 19" Semi-Automatic Electric Paper Cutter
Brand: Formax
SKU: FD-CT27S

Product Description

The Cut-True 27S Semi-Automatic Electric Paper Cutter provides precise, efficient cutting for stacks up to 18.9" wide and 3.15" high, featuring dual-button electronic operation, an automatic paper clamp, a hardened steel guillotine blade, a bright LED Cutting Line, and an LED digital readout for accurate alignment and fine adjustments. Safety features include front and rear transparent guards, a blade lock, safety lock with key, external blade depth adjustment, automatic blade return, a blade change safety tool, and a wooden paper push for safe alignment. Designed for durability and productivity, it includes a rugged metal stand with two side tables and a storage shelf and supports long-term performance with optional replacement blades and cutting sticks. Ideal for print shops and in-plant finishing, it delivers crisp, professional results for brochures, invitations, and more.

Product Details

Two-Hand Electronic Operation: Ensures safe and precise cutting.
High Capacity Cutting: Handles paper stacks up to 3.15” high and 18.9” wide.
LED Laser Cutting Line: Provides accurate alignment for every cut.
Automatic Clamping System: Secures paper stacks for consistent results.
Premium Hardened Steel Blade: Durable and sharp for clean cuts.
Spindle-Guided Back Gauge: Includes LED display for precise measurements.
Safety Lock with Key: Prevents unauthorized use.
Front & Rear Safety Guards: Electronically controlled and transparent for safe operation.
All-Metal Stand with Shelf & Side Tables: Sturdy workspace with added convenience.
Automatic Blade Return: Resets from any position for efficiency.
Calibrated Scale: Inch and metric markings for precise adjustments.
Solid Steel Blade Carrier: Ensures stability and long-lasting performance.
External Blade Depth Adjustment: Quick adjustments without opening the machine.
Front Access Blade Change: Easy and safe blade replacement.
Wooden Paper Push: Aligns paper safely and accurately.
Blade Change Safety Tool: Added protection during maintenance.

Specifications

Cutting Action: Dual-button electric
Maximum Cutting Width: Up to 18.9” (480mm)
Maximum Paper Stack Height: Up to 3.15” (80mm)
Length Behind Blade: 19.87” (505mm)
Length in Front of Blade: 12.37” (314mm)
Narrow Cut: 1.89” (48mm)
Table Size: 32” W x 37” D (811 x 941mm)
LED Laser Cut Line: Yes
Clamp Style: Automatic
Back Gauge Adjustment: Manual crank
Back Gauge Display: Digital, inches/metric
Blade Change Tool: Included
Dimensions: 51” H x 36” W x 39” D (1300 x 920 x 1000mm)
Weight: 550 lbs. (250kg)
Power Supply: 110V, 20A dedicated line
Safety Certifications: CE approved, UL pending
Spiral / Binding101 Part Number: 04FXCT27S

Replacement Blades and Accessories

Product Name	Item Number

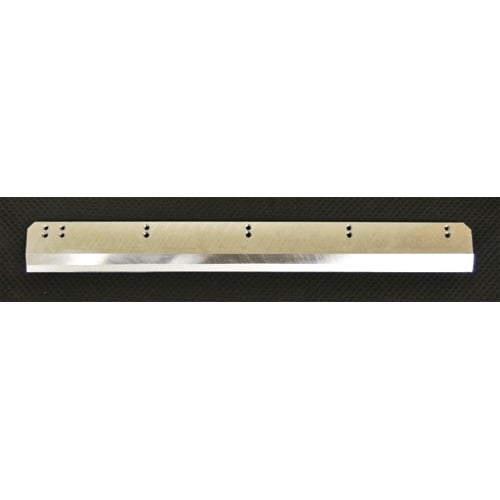

Replacement Blade for Formax Cut-True 27S Cutter	FDCT27-10
Cutting Sticks for Formax Cut-True 27S Cutter - 8pk	FDCT27-20

Compare to Similar Formax Guillotine Paper Cutters

Model Name	Cut-True 31HE	Cut-True 29H	Cut-True 29A	Cut-True 27S	Cut-True 22S	Cut-True 16M	Cut-True 15M	Cut-True 13M
Model
Cutting Action	Dual-button electric	Dual-button electric	Dual-button electric	Dual-button electric	Dual-button electric	Manual lever handle	Manual lever handle	Manual lever handle
Maximum Cutting Width	28.7”	20.5"	20.5"	18.9"	16.9"	18.7"	16.9"	14.5"
Cutting Capacity	1000 Sheets	700 Sheets	700 Sheets	700 Sheets	440 Sheets	700 Sheets	600 Sheets	370 Sheets
Maximum Paper Stack Height	3.94”	3.15"	3.15"	3.15"	1.75"	3.15"	2.15"	.75"
Cutting Length Behind Blade	26.5”	20.5"	20.5"	N/A	N/A	N/A	N/A	10.5"
Length in Front of Blade	25”	18.25"	18.25"	N/A	N/A	N/A	N/A	1.25"
Programmable Jobs	Up to 100 programs with up to 100 steps each	Up to 100 programs with up to 100 steps each	Up to 100 programs with up to 100 steps each	N/A	N/A	N/A	N/A	N/A
Minimum Cut w/False Clamp	2.36”	2.36”	2.36”	N/A	N/A	N/A	N/A	N/A
Minimum Cut w/o False Clamp	1.18”	1.18”	.98"	N/A	N/A	N/A	N/A	N/A
Narrow Cut	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1.25"
LED Laser Cut Line	N/A	N/A	N/A	Yes	Yes	Yes	Yes	Yes
Clamp Style	Automatic, hydraulic	Automatic, hydraulic	Automatic, electronically adjustablee	Automatic	Spindle-guided clamping wheel	Spindle-guided clamping wheel	Spindle-guided clamping wheel	Lever
Back Gauge Adjustment	Fully programmable using touchscreen, accurate to 0.1mm	Fully programmable using touchscreen, accurate to 0.1mm	Fully programmable using touchscreen, accurate to 0.1mm	Manual crank	Manual crank	Manual crank	Manual crank	Thumbscrew
Back Gauge Reading	N/A	N/A	N/A	Digital readout, in both inches and metric	Digital readout, in both inches and metric	Scale, in both inches and metric	Scale, in both inches and metric	Scale, in both inches and metric
Dimensions	73” W x 69” D x 56.9” H	49.2" H x 36.75" W x 53.2" D	49.2" H x 36.75" W x 53.2" D	51" H x 36" W x 39" D	46.75" H x 24.75" W x 33" D	46.25" H x 39" W x 35" D	42.5" H x 26.8" W x 29.1" D	12.75" H x 18.75" W x 17.5" D
Weight	1,323lbs.	1,014 lbs.	683 lbs.	550 lbs.	198.6 lbs.	199 lbs.	133 lbs.	38 lbs.
Safety Certifications	N/A	N/A	CE approved, UL pending	CE approved, UL pending	CE approved, UL pending	CE approved	CE approved	CE approved
Warranty	90 day limited warranty on parts. Excluding wearables and labor.	90 day limited warranty on parts. Excluding wearables and labor.	90 day limited warranty on parts. Excluding wearables and labor.	90 day limited warranty on parts. Excluding wearables and labor.	90 day limited warranty on parts. Excluding wearables and labor.	90 day limited warranty on parts. Excluding wearables and labor.	90 day limited warranty on parts. Excluding wearables and labor.	90 day limited warranty on parts. Excluding wearables and labor.

Video

Formax Cut-True 27S and 27A cutters Demo Video

Transcript :

Formax Cut-True 27S and 27A cutters. For precision paper cutting with user friendly features, the Formax Cut-True 27S and 27A are a cut above the rest. With electronic operation, they quickly and accurately cut paper stacks up to 3.15 inches high at paper sizes up to 18.9 inches wide. Each has a power switch and key lock for safety and security along with an LED laser line for accurate paper positioning. The Cut-True 27S semi automatic cutter. The 27S features an automatic paper clamp to securely hold the paper stack. Simply press the clamp and blade buttons to engage and watch as the hardened steel blade effortlessly cuts the paper stack. Making adjustments for various paper sizes and cuts is easy with the combination of a hand crank, LED display, and LED laser line. Use the hand crank to adjust the back gauge and make fine tuning adjustments with the digital LED display on the front panel. The hardened steel blade is designed to last cut after cut so safety is also a standard feature. The Cut-True 27S utilizes two buttons to activate the cutter. Both buttons must be pushed at the same time to lower the paper clamp and cutting blade. The transparent Plexi glass cover encloses the blade during the cutting process and when in the open position, it locks the blade mechanism in place preventing the blade from being lowered. The Cut-True 27A automatic programmable cutter. The 27A automatic cutter features programmable job settings. And infrared light beam safety curtain and an LCD touch screen control panel for quick and easy setup and operation. For a basic cutting job, simply load paper. Choose between metric and standard measurements on the control panel then set the cut size. Dual push buttons engage the automatic clamp which holds the paper stack securely in place while the LED laser line lets you see exactly where the blade will cut. To program a frequently used cutting job, select the job number to be created. Choose cut length settings, then save. The 27A has the capacity to save up to 99 jobs with up to 30 cuts each. Program jobs automatically adjust the back gauge after each cut doing the work for you as shown here. And with the infrared safety curtain, thereš™s no need to repeatedly raise and lower a safety cover. The safety curtain automatically stops operation if the light plane is interrupted and immediately restores operation once the cutting area is clear providing a more streamlined process between cuts. The Cut-True 27A also includes repeat cut and divided cut as standard features. By selecting repeat cut, the same cut size can be performed in succession without having to program each individual cut size. The divided cut feature makes quick work of programming jobs with even cut sizes. Simply enter the paper size to be cut and the number of cuts. The 27A will then create the job with the correct measurements. The 27A also features an advanced divided cut mode which makes it quick and easy to program jobs with bleeds and gutters. The Cut-True 27S and 27A each comes standard with a rugged metal stand that has a shelf for convenient storage. When using Cut-True cutters, safety is the top priority. Along with the operating safety features, the blade is safely removed with the blade change tool. Cutting sticks are also easy to replace. Simply press the lifting button located on the cutting deck and the stick will be raised for easy removal. Formax Cut-True 27S and 27A cutters.
