Product Description

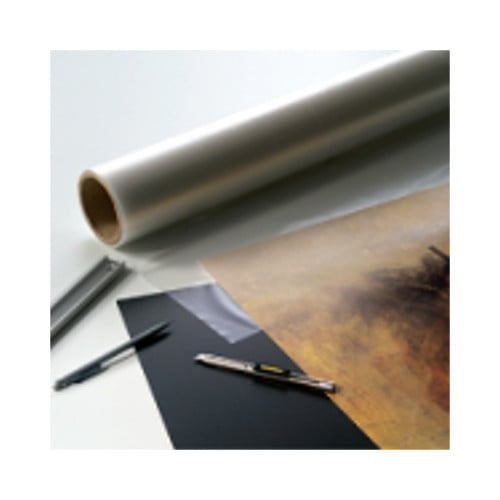

The Drytac Dry Mount Film is a dry mounting tissue for mounting irregular surfaces. This Dry Mount Film Mounting Tissue is a thin PVC carrier, coated on both sides with an acrylic heat-activated adhesive. Each side of the film is protected by a high quality moisture stable paper release liner. When the film is ready for use, the release paper is removed, exposing a low initial tack adhesive allowing positioning of a print without the use of a tacking iron. The print can then be repositioned at any time prior to inserting into a heated press. this Dry Mount Film is ideal for mounting to canvas, heavily grained or textured substrates, and most other irregular surfaces like most metals.
Specifications
- Film Length: 82' - 328'
- Film Width: 41" - 51"
- Film Thickness: 50µ (2 mil)
- Release Liner: 1 Side PE Coated Bleached Kraft Grey Grid Paper (Moisture Stable)
- Adhesive: Solvent Acrylic (Heat Activated)
- Carrier: Clear PVC
- Adhesive Layer: 25µ (1 mil) on each side
- Ratio Film / Adhesive: 1:1
- Heat Resistance Range: 70°C - 95°C (158°F - 203°F)
- Adhesive Type: Acrylic
- Adhesive Bond: Permanent
- Initial Tack: Low
- Processing Temperature: 185°F-212°F (85°C-100°C)
- Dwell Time: 60-90 seconds
- Application: Fine Art Prints, Picture Framing/Photography, Plaque Mounting
Technical Data
Dry Mount Film is a 2 mil (50µ) plasticized clear PVC film, coated on both sides with a heat-activated solvent acrylic adhesive that is protected on both sides by a bleached Kraft gridded release paper coated on one side with siliconized PE.Typical Applications
- Suitable for mounting to canvas, heavily grained or textured substrates and irregular surfaces, such as most metals.
Product Structure
| Release Liner | 1 Side PE Coated Bleached Kraft Grid Paper (Moisture Stable) |
|---|---|
| Adhesive | Solvent Acrylic (Heat Activated) |
| Film | Clear PVC |
Physical Characteristics
| Film Thickness | 2 mil (50µ) |
|---|---|
| Adhesive Layer | 1 mil (25µ) on each side |
| Film/Adhesive Ratio | 1:2:1 |
| UV Protection Factor | Not Applicable |
| Outdoor Durability | Not Applicable |
| Service Temperature Range | -4°F to 203°F (-20°C to 95°C) |
| Peel Strength (20 min, FTM1) | 18 N/25mm |
| Shelf Life | Use within 1 year after opening original box |
| Storage Conditions | 59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity |
Process Settings
| Equipment Type | Temperature | Dwell Time |
|---|---|---|
| Roller Laminator | Not recommended | |
| Press | 185°F to 210°F (85°C to 99°C) | 60 - 90 seconds |
Downloadable Information
