$36,395.00

Need Shopping Advice?
Call - (800)944-4573

Creases up to 8,500 sheets per hour (8.5" x 11") for high-volume digital print
Takes sheets up to 15" x 51" with the extension table, in 75 to 400 gsm stock
Up to 30 creases per sheet, with in-line rotary perforating in the same pass
Vacuum top feed loads 7.8" stacks, with a touchscreen and unlimited stored jobs

SKU

PRODUCT NAME

PRICE

QUANTITY

ATLAS-C150

Formax Atlas C150 High-Speed Automatic Creasing and Perforating Machine

$36,395.00

04FXATLASC350ASC

Formax AC-150-10 Additional Static Creaser Kit for Atlas C150, C350

$4,868.00

AC-150-30

Formax AC-150-30 Narrow Static Crease Blade Kit for Atlas C150, C350 (second station, 1.0mm)

$901.33

AC-150-20

Formax AC-150-20 Wide Static Crease Blade Kit for Atlas C150, C350 (second station, 1.2mm)

$901.33

AC-150-40

Formax AC-150-40 Extra Narrow Static Crease Blade Kit for Atlas C150, C350 (second station, 0.7mm)

$1,014.67

AC-150-50

Formax AC-150-50 Full Cross Perforation Kit for C150, C350 (second station)

$1,984.00

Product Description

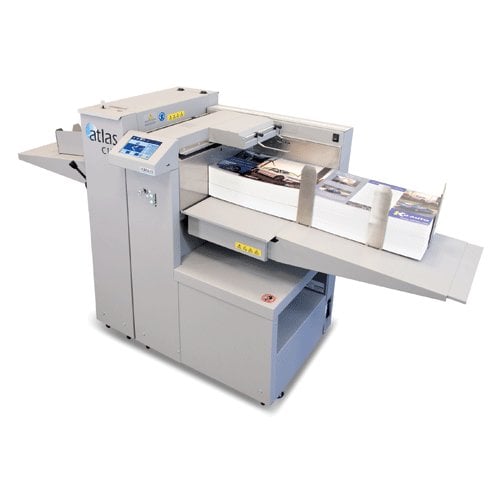

The Atlas C150 from Formax is a premium automatic creaser and perforator that creates professional finishing for paper weights from 80 to 400gsm. The extending feed table pulls out to accommodate sheets as large as 15 inches wide and 51 inches long. Automatic adjustment of the top-loading vacuum infeed allows for quick handling of media stacks up to 7.8 inches high. The optical sensors control the sheet separation by consistently monitoring the “float zone” between sheets and making any necessary adjustments automatically and “on the fly”. The exit tray/outfeed stacker can hold your processed pages in a neat, easy-to-manage stack up to 4.7 inches high. Setup and operation of this powerful creasing machine is simple with the intuitive color touchscreen control panel. To start processing your job, just follow the instructions on the screen to set your sheet length, weight, and fold type; the Atlas C150 automatically calculates the crease locations based on that information and adjusts accordingly. You can easily select any of the pre-programmed common sheet sizes and jobs or create your own. The storage capacity in the machine allows for unlimited storage of custom jobs for quick, accessible recall; save every job for your repeat customers and make repeat order production faster and easier than ever before. It also includes an in-line rotary perforation kit, which allows for creasing and perforating in a single pass. The Atlas C150 can be equipped with an optional 2nd creasing/perforating blade kit that allows for single-pass up and down creasing along with cross/partial perforation for hinges, book covers, multi-panel brochures, and tear-off applications. An optional cross perforating blade kit can be used to combine creasing and cross perforating in a single pass for a variety of jobs including brochures with tear-offs. The quick-change creasing matrices are easy to swap in and out in only a few seconds and without any tools, keeping your production room moving with less down-time between jobs. You can also add an optional ultra-narrow creasing blade kit, and the AC-10 Folder which enables users to crease, perforate, and fold in-line. Incorporating high-speed output, incredibly user friendly features, and the strength and power to handle large media sizes at high-volume industrial levels, the Atlas C150 is a powerhouse addition to today’s digital print environment.

Product Details

Features:

Vacuum Top Feeding: Edge-registered for accurate feeding

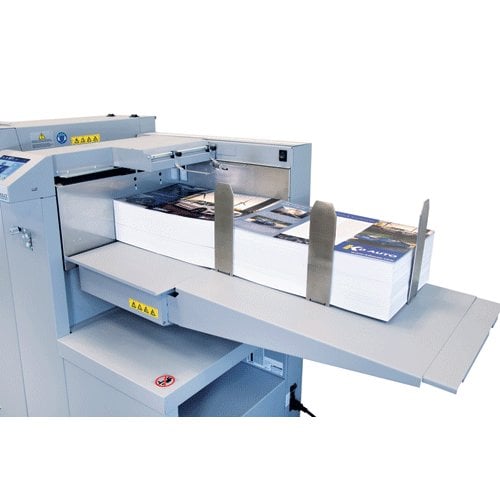

Self-Adjusting Pile Feed Table: Offers a media loading capacity of up to 7.8” high
Optical Sensors: Control sheet separation by constantly monitoring the float zone and making adjustments automatically on-the-fly
Fully Automatic Setup: Settings are automatically adjusted based on sheet size, weight and crease/ perforation type

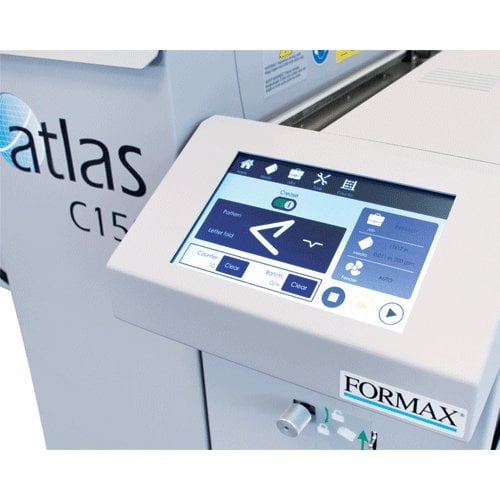

Color Touchscreen: Intuitive, user-friendly interface with bold icons
Programmed Creases: Common creases are simple to call up on the touchscreen
Programmable Jobs: Users can store and recall an unlimited number of custom jobs
High-Speed Processing: Up to 8,500 sheets per hour
Infeed Table Extension: Accommodates media up to 51” long
Adjustable Outfeed Stacker: Can be raised or lowered to hold up to 4.7” of processed media
Ultrasonic Double Sheet Detection: Provides incredible feeding accuracy

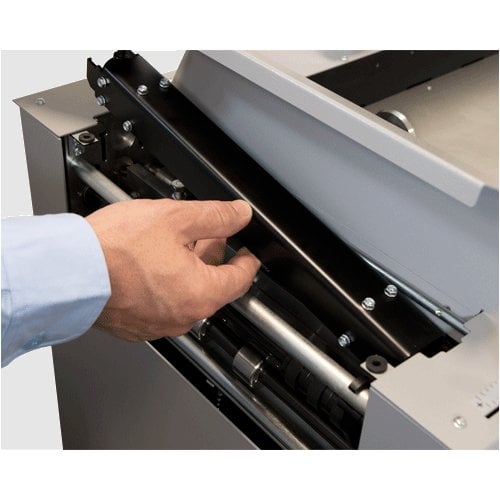

Quick Change Creasing Matrix Kits: Easy to swap in and out in just seconds, with no tools required
Flexible: Powerful creasing unit accepts standard, narrow, and ultra narrow creasing blades, as well as optional cross perforation blades
In-Line Rotary Perforation: Perforate and crease in a single pass
Heavy Duty Creasing/Rule Matrix: The creasing/rule matrix compresses and embosses the paper fibers, virtually eliminating tearing and cracking on the folded

Options:

Additional Creasing Matrix Kit: Works in conjunction with the standard creasing matrix to produce up/down creasing for hinges, book covers and complex brochures, all in a single-pass.
Cross/Partial Perforation Kit: Ideal for full and partial perforating along the width of the sheet. Can be used alone or with the rotary perforating kit to produce tear-off tickets and vouchers (see image below).
Narrow and Ultra Narrow Creasing Matrix Kits: Ideal for creasing various paper weights
AC-10 Folding Unit: Used in-line with the C150, it adds folding to the crease/perforate process

Specifications

Speed: Up to 8,500 sheets per hour * (8.5" x 11" )
Sheet Size: Max: 27.5" x 15" (51" X 15" w/std. extension table) / Min: 8.2" x 3.89"
Paper Thickness: Max: 0.015" (400gsm) / Min: 0.0035" (75gsm)
Creases per Sheet: Up to 30
Min. Repeat Crease Distance: 0.0039" (depending on paper weight)
Programmable Jobs: Unlimited
Max. Loading Capacity: Up to 7.8" (4" for sheet lengths greater than 27.5" )
Stacker Capacity: Up to 4.7" high
Dimensions (With Feed Table Fully Extended): 66.5" L x 28.7" W x 45.7" H (100" L x 28.7" W x 45.7" H)
Manufacturer's Warranty: 90-Day Manufacturer's Warranty
Weight: 551 lb.
Power: 100-240V, 50/60Hz, 8-4A

Compare to Similar Creasers

Model Name

Model

Speed

Sheet Size

Paper Thickness

Folds per Sheet

Feed Capacity

Paper Weight

Paper Sizes

Minimum Repeat Crease Distance

Minimum Repeat Fold Distance

Minimum Crease Distance from Leading Edge

Minimum Fold Distance from Leading Edge

Minimum Crease Distance from Trailing Edge

Minimum Fold Distance from Trailing Edge

Minimum Fold Length

Programmable Jobs

Dimensions

Weight

Power

Warranty
Atlas-TRIO15

24-up business cards, up to 8 sheets/minute
4-up postcards (12" x 18"), up to 10 sheets/minute
2 cut / 2 slit / 1 crease (8.5" x 11"), up to 15 sheets/minute
1 crease (8.5" x 11"), up to 5,000 sheets/hour

Pile height up to 4"

N/A

N/A

Pile height up to 4"

32# bond - 130# cover (120-350 gsm)

8.2" - 13" W x 8.2" - 19" L (13" W x 27.5" L with optional long sheet kit)

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Up to 150

33" W x 31" D x 43" H (footprint: 63" W x 31" D)

440 lbs.

120 VAC

90 day warranty on parts and labor
Atlas C150

Up to 8,500 sheets per hour * (8.5” x 11”)

Max: 27.5” x 15” (51” X 15” w/std. extension table)
Min: 8.2” x 3.89”

Max: 0.015” (400gsm)
Min: 0.0035” (75gsm)

Up to 30

N/A

N/A

N/A

0.0039” (depending on paper weight)

N/A

N/A

N/A

N/A

N/A

N/A

Unlimited

66.5” L x 28.7” W x 45.7” H (100” L x 28.7” W x 45.7” H)

551 lb.

100-240V, 50/60Hz, 8-4A

90-Day Warranty
Atlas C102

Up to 8,500 sheets per hour (8.5" x 11")
Up to 11,000 sheets per hour (6.5" x 8.5")

Max: 35" x 13", Min: 8.3" x 5.5"

Max: 0.015" (approx. 400gsm)
Min: 0.004" (approx. 80gsm)

Up to 16

N/A

N/A

N/A

0.03" (depending on paper weight)

N/A

0.09"

N/A

1.37"

N/A

N/A

50

75.4" L x 20.5" W x 48" H

267 lb

220V, 50/60hz, 15A, NEMA 6-15P

90 day limited warranty on parts. Excluding wearables and labor.
Atlas C200

Up to 8,500 sheets per hour * (8.5" x 11")
Up to 11,000 sheets per hour * (6.5" x 8.5")

Max: 27.5" x 19.6" (35.4" x 19.6" w/optional extension table)
Min: 8.2" x 5.5"

Max: 0.015" (approx. 400gsm)
Min: 0.004" (approx. 75gsm)

Up to 16

N/A

N/A

N/A

0.03" (depending on paper weight)

N/A

0.09"

N/A

1.37"

N/A

N/A

Unlimited

59" L x 26.8" W x 48" H

344 lb

240V 50/60hz

90 day limited warranty on parts. Excluding wearables and labor.
Atlas C300

Up to 6,000 sheets per hour * (8.5" x 11.5")

Max: 27.5" x 15.1" (35.4" x 15.1" w/optional extension table)
Min: 8.2" x 5.5"

Max: 0.015" (approx. 400gsm)
a Min: 0.004" (approx. 75gsm)

Up to 2

N/A

N/A

N/A

1.57" (depending on paper weight)

2.75" (depending on paper weight)

1.96"

1.96"

1.96"

1.96"

2.75"

Unlimited

79.5" L x 26.7" W x 49.8" H

419 lb

240V 50/60hz

90 day limited warranty on parts. Excluding wearables and labor.

Video

Product video

Formax Atlas C150 Automatic Creaser Demo Video

Transcript :

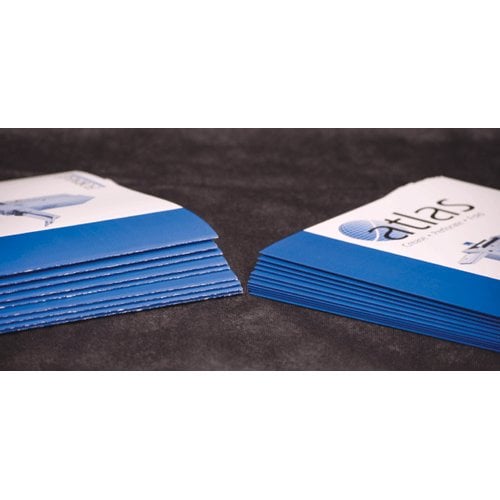

Formax presents the Atlas C150 Automatic Pile Feed Creaser. The Atlas C150 is a powerful, accurate, easy to use auto feeding creaser that meets the quality demands of high-volume digital finishing in today's print world. On-demand digital printing has become the standard for fast turnaround and short run jobs, finishing the piece properly for a professional high-quality look is a key part of the process when it comes to folding digitally printed pieces. Creasing is essential to avoid cracking and tearing on the folded edges as shown here; without creasing the folded piece is cracked and looks of poor quality while the creased piece looks clean and professional. Accuracy, power, durability, and ease of use separate this auto feed creaser from all the rest. The Atlas C150 features a powerful air suction pile feeder with lead edge tracking registration and multiple sensors for accurate feeding of paper weights up to 400 gsm. Automatic adjustments and a state-of-the-art intuitive color touchscreen ensure quick and easy setup. Let's take a closer look at how the C150 creaser works. To begin, load the printed pieces onto the feeder and set the feeding guides, the standard extension tray can be pulled out to accommodate sheets up to 15 inches wide by 51 inches long. With the sheets in position, it's time to enter the creasing configuration. The Atlas C150 is pre-programmed for nine popular crease types in six different sizes along with five settings for perfect bound book covers. In addition, users can program and save an unlimited number of custom jobs using the color touch screen panel. Select the crease type and paper size, the C150 will adjust the crease settings. Automatically switching between crease settings is easy, simply select the new crease type and press enter, with the settings entered press Start. Sheets are processed consistently at speeds of up to 8,500 per hour. Multiple sensors monitor the infeed for variations and make adjustments on the fly for enhanced performance and accuracy. The quick release dual creasing module allows for the option of up and down creasing or creasing and cross perforating in a single pass. The quick release system requires no tools which allows creasing and perforating matrices to be changed in seconds. Simply push down and pull to release the top cover, remove the matrix, rotate or replace the matrix then reinstall the top cover. Let's take a closer look at the rugged and innovative design of the creaser matrix. Atlas creasers feature a heavy-duty creasing mechanism which utilizes a channel and anvil to create the crease. This embosses the printed sheet and eliminates cracking of the folded edge providing a clean professional piece. A rotary perforator tool is standard equipment which is easily attached to the exit feed rollers to add perforations at the same time the piece is being creased. An optional cross perforation kit is available that can be run in line with both the creasing matrix and the rotary perforator to maximize creasing and perforation finishing options. The Formax Atlas C150 Automatic Creaser is the most versatile and efficient creaser on the market with the power, ease of setup, and operation durability and accuracy essential for today's digital print finishing.
