SKU
PRODUCT NAME
PRICE
QUANTITY
04FXATLASC150P
$28,395.00
Product Description

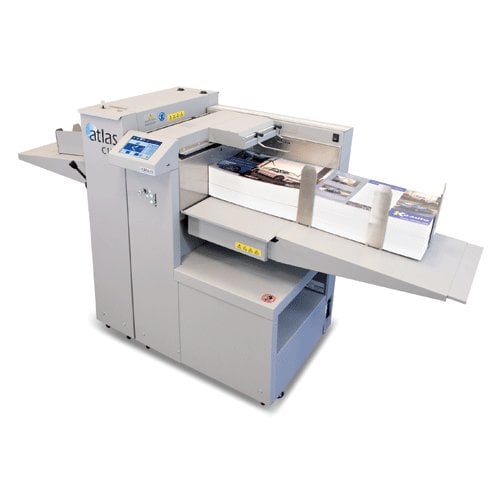

The Foramx Atlas C150P is a premium automatic creaser and perforator that creates professional finishing for paper weights from 80 to 400gsm. The extending feed table pulls out to accommodate sheets as large as 15 inches wide and 51 inches long. Automatic adjustment of the top-loading vacuum infeed allows for quick handling of media stacks up to 7.8 inches high. The optical sensors control the sheet separation by consistently monitoring the “float zone” between sheets and making any necessary adjustments automatically and “on the fly”. The exit tray/outfeed stacker can hold your processed pages in a neat, easy-to-manage stack up to 4.7 inches high. Setup and operation of this powerful creasing machine is simple with the intuitive color touchscreen control panel. To start processing your job, just follow the instructions on the screen to set your sheet length, weight, and fold type; the Atlas C150P automatically calculates the crease locations based on that information and adjusts accordingly. You can easily select any of the pre-programmed common sheet sizes and jobs or create your own. The storage capacity in the machine allows for unlimited storage of custom jobs for quick, accessible recall; save every job for your repeat customers and make repeat order production faster and easier than ever before. It also includes an in-line rotary perforation kit, which allows for creasing and perforating in a single pass. The Atlas C150P is equipped with a 2nd creasing/perforating blade kit that allows for single-pass up and down creasing along with cross/partial perforation for hinges, book covers, multi-panel brochures, and tear-off applications. An optional cross perforating blade kit can be used to combine creasing and cross perforating in a single pass for a variety of jobs including brochures with tear-offs. The quick-change creasing matrices are easy to swap in and out in only a few seconds and without any tools, keeping your production room moving with less down-time between jobs. You can also add an optional ultra-narrow creasing blade kit, and the AC-10 Folder which enables users to crease, perforate, and fold in-line. Incorporating high-speed output, incredibly user friendly features, and the strength and power to handle large media sizes at high-volume industrial levels, the Atlas C150P is a powerhouse addition to today’s digital print environment.
Product Details
Features:- Vacuum Top Feeding: Edge-registered for accurate feeding

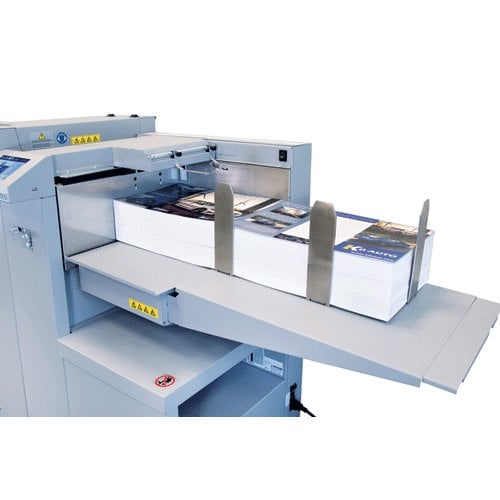

- Self-Adjusting Pile Feed Table: Offers a media loading capacity of up to 7.8” high
- Optical Sensors: Control sheet separation by constantly monitoring the float zone and making adjustments automatically on-the-fly
- Fully Automatic Setup: Settings are automatically adjusted based on sheet size, weight and crease/ perforation type

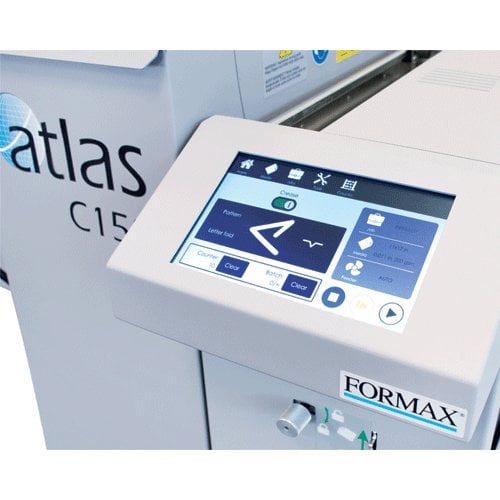

- Color Touchscreen: Intuitive, user-friendly interface with bold icons
- Programmed Creases: Common creases are simple to call up on the touchscreen
- Programmable Jobs: Users can store and recall an unlimited number of custom jobs
- High-Speed Processing: Up to 8,500 sheets per hour
- Infeed Table Extension: Accommodates media up to 51” long
- Adjustable Outfeed Stacker: Can be raised or lowered to hold up to 4.7” of processed media
- Ultrasonic Double Sheet Detection: Provides incredible feeding accuracy

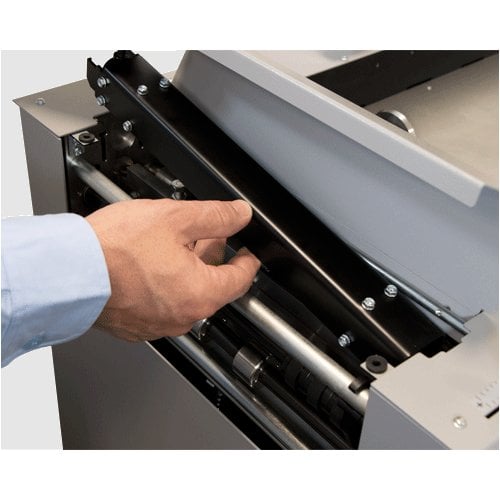

- Quick Change Creasing Matrix Kits: Easy to swap in and out in just seconds, with no tools required
- Flexible: Powerful creasing unit accepts standard, narrow, and ultra narrow creasing blades, as well as optional cross perforation blades
- In-Line Rotary Perforation: Perforate and crease in a single pass

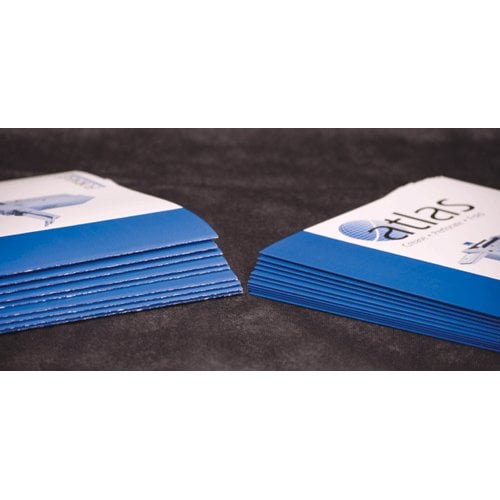

- Heavy Duty Creasing/Rule Matrix: The creasing/rule matrix compresses and embosses the paper fibers, virtually eliminating tearing and cracking on the folded edge of digital prints. Includes one standard creasing matrix kit, with the option to add a second creasing/cross perforating kit.
- 2nd Creasing Matrix Kit: Works in conjunction with the standard creasing matrix to produce up/down creasing for hinges, book covers and complex brochures, all in a single-pass
Options:
- Cross/Partial Perforation Kit: Ideal for full and partial perforating along the width of the sheet. Can be used alone or with the rotary perforating kit to produce tear-off tickets and vouchers (see image below).
- Narrow and Ultra Narrow Creasing Matrix Kits: Ideal for creasing various paper weights
- AC-10 Folding Unit: Used in-line with the C150, it adds folding to the crease/perforate process
Specifications
- Speed: Up to 8,500 sheets per hour * (8.5" x 11" )
- Sheet Size: Max: 27.5" x 15" (51" X 15" w/std. extension table) / Min: 8.2" x 3.89"
- Paper Thickness: Max: 0.015" (400gsm) / Min: 0.0035" (75gsm)
- Creases per Sheet: Up to 30
- Min. Repeat Crease Distance: 0.0039" (depending on paper weight)
- Programmable Jobs: Unlimited
- Max. Loading Capacity: Up to 7.8" (4" for sheet lengths greater than 27.5" )
- Stacker Capacity: Up to 4.7" high
- Dimensions (With Feed Table Fully Extended): 66.5" L x 28.7" W x 45.7" H (100" L x 28.7" W x 45.7" H)
- Manufacturer's Warranty: 90-Day Manufacturer's Warranty
- Weight: 551 lb.
- Power: 100-240V, 50/60Hz, 8-4A
Compare to Similar Creasers
-
Model NameModelSpeedSheet SizePaper ThicknessFolds per SheetFeed CapacityPaper WeightPaper SizesMinimum Repeat Crease DistanceMinimum Repeat Fold DistanceMinimum Crease Distance from Leading EdgeMinimum Fold Distance from Leading EdgeMinimum Crease Distance from Trailing EdgeMinimum Fold Distance from Trailing EdgeMinimum Fold LengthProgrammable JobsDimensionsWeightPowerWarranty
-
Atlas-TRIO15
24-up business cards, up to 8 sheets/minute
4-up postcards (12" x 18"), up to 10 sheets/minute
2 cut / 2 slit / 1 crease (8.5" x 11"), up to 15 sheets/minute
1 crease (8.5" x 11"), up to 5,000 sheets/hourPile height up to 4"N/AN/APile height up to 4"32# bond - 130# cover (120-350 gsm)8.2" - 13" W x 8.2" - 19" L (13" W x 27.5" L with optional long sheet kit)N/AN/AN/AN/AN/AN/AN/AUp to 15033" W x 31" D x 43" H (footprint: 63" W x 31" D)440 lbs.120 VAC90 day warranty on parts and labor -
Atlas C150
Up to 8,500 sheets per hour * (8.5” x 11”)Max: 27.5” x 15” (51” X 15” w/std. extension table)
Min: 8.2” x 3.89”Max: 0.015” (400gsm)
Min: 0.0035” (75gsm)Up to 30N/AN/AN/A0.0039” (depending on paper weight)N/AN/AN/AN/AN/AN/AUnlimited66.5” L x 28.7” W x 45.7” H (100” L x 28.7” W x 45.7” H)551 lb.100-240V, 50/60Hz, 8-4A90-Day Warranty -
Atlas C102
Up to 8,500 sheets per hour (8.5" x 11")
Up to 11,000 sheets per hour (6.5" x 8.5")Max: 35" x 13", Min: 8.3" x 5.5"Max: 0.015" (approx. 400gsm)
Min: 0.004" (approx. 80gsm)Up to 16N/AN/AN/A0.03" (depending on paper weight)N/A0.09"N/A1.37"N/AN/A5075.4" L x 20.5" W x 48" H267 lb220V, 50/60hz, 15A, NEMA 6-15P90 day limited warranty on parts. Excluding wearables and labor. -
Atlas C200
Up to 8,500 sheets per hour * (8.5" x 11")
Up to 11,000 sheets per hour * (6.5" x 8.5")Max: 27.5" x 19.6" (35.4" x 19.6" w/optional extension table)
Min: 8.2" x 5.5"Max: 0.015" (approx. 400gsm)
Min: 0.004" (approx. 75gsm)Up to 16N/AN/AN/A0.03" (depending on paper weight)N/A0.09"N/A1.37"N/AN/AUnlimited59" L x 26.8" W x 48" H344 lb240V 50/60hz90 day limited warranty on parts. Excluding wearables and labor. -
Atlas C300
Up to 6,000 sheets per hour * (8.5" x 11.5")Max: 27.5" x 15.1" (35.4" x 15.1" w/optional extension table)
Min: 8.2" x 5.5"Max: 0.015" (approx. 400gsm)
a Min: 0.004" (approx. 75gsm)Up to 2N/AN/AN/A1.57" (depending on paper weight)2.75" (depending on paper weight)1.96"1.96"1.96"1.96"2.75"Unlimited79.5" L x 26.7" W x 49.8" H419 lb240V 50/60hz90 day limited warranty on parts. Excluding wearables and labor.
