Product Description

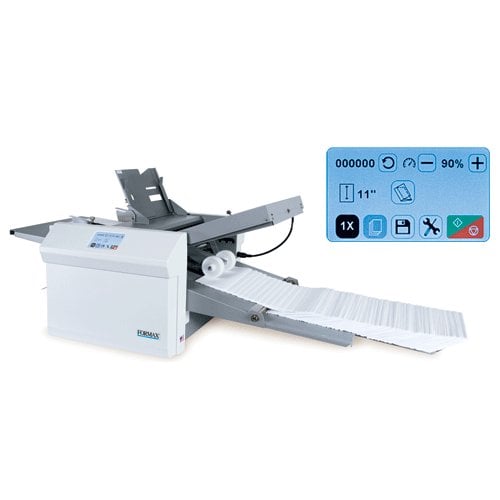

Get any folding job done in minutes with the FD 38Xi Fully Automatic Paper Folder! With 18 pre-programmed fold settings and 36 custom folds that can be stored in memory, FD 38Xi is the perfect solution for any task that demand fast and efficient set up.The FD 38Xi features a full-color touchscreen control panel with a user friendly interface that can be used even with untrained operators with very minimal instructions. It can fold up to 17,000 pieces per hour! Operators can load up to 500 sheets in the hopper, select their fold, press start and walk away to attend to other important tasks. The FD 38Xi will fold up to 500 sheets in as little as 2 minutes and hold the folded pieces on its patented Telescoping Conveyor System. Folding up to 4 stapled or unstapled sheets of letter and legal paper sizes at one time in standard or custom folds is possible with the dedicated Multi-Sheet Feeder. The FD 38Xi advanced software allows for all standard fold types and paper sizes to be customized to meet your particular needs. The FD 38Xi can be paired with the optional V-Stack36i Vertical Stacker, which stacks up to 22” of folded documents, making them easier to unload for further processing. No folding job is too big for the Formax FD 38Xi Fully Automatic Document Folder! Your solution to any folding need.
Product Details
- Operating Features:
- Fast!: Large jobs are processed quickly at speeds of up to 17,000 pieces per hour

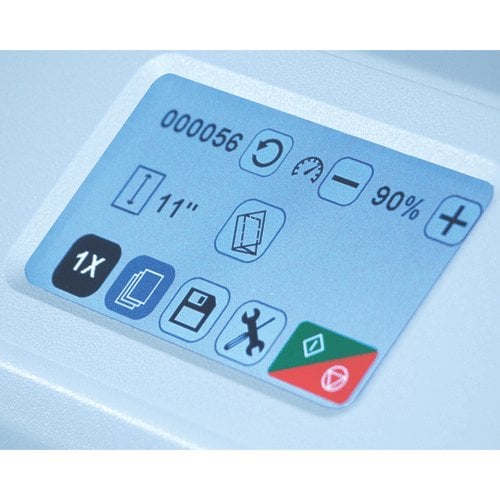

- Color Touchscreen: The large full-color touchscreen control panel allows anyone to walk up and start folding in seconds
- Drop-In Feed System: Three-roller drop-in feed system produces dependable feeding of forms with no fanning required
- AutoStack Stacker Wheels: Fully-automated stacker wheels eliminate moving them by hand when switching paper sizes and fold types

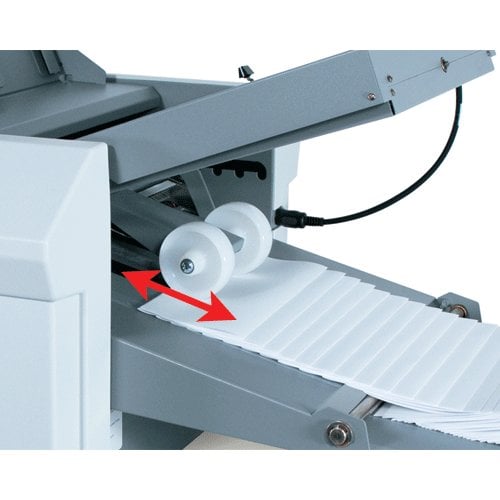

- Telescoping Conveyor System: Conveyor can be set between 14" (356mm) and 36" (915mm) in length and holds up to 500 folded pieces
- Noise Reduction: Fold plates are enclosed and insulated to reduce operating noise
- 6-Digit Resettable & 8-Digit Life Counters: Provides maximum audit control
- AutoBatch: Programmable to process pre-set number of sheets into sets with a delay
- Folding Features:
- Six Standard Folds in Common Paper Sizes: Pre-programmed for 6 popular fold types in letter, legal and ledger paper sizes equalling 18 preset fold settings
- Custom Folds: Up to 36 custom folds can be programmed and stored into memory

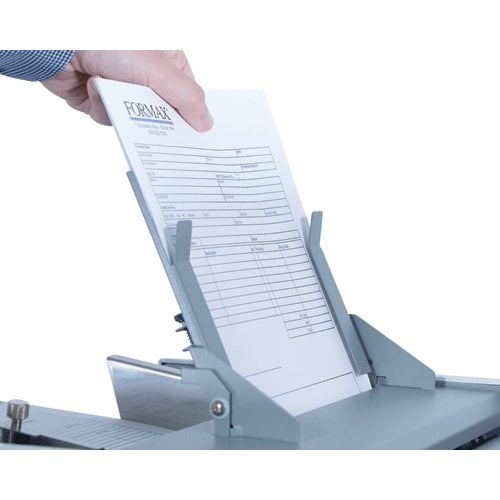

- Dedicated Multi-Sheet Feeder: Allows for up to 4 stapled or unstapled sheets to be folded at once, with the ability to select standard or custom folds in letter and legal paper sizes
- Standard Fold Settings Modification: Even the six standard fold types can be modified individually for each paper size for maximum flexibility and customization
- Cross-Folding: A guide is included for two pass operation
- Technical Features:

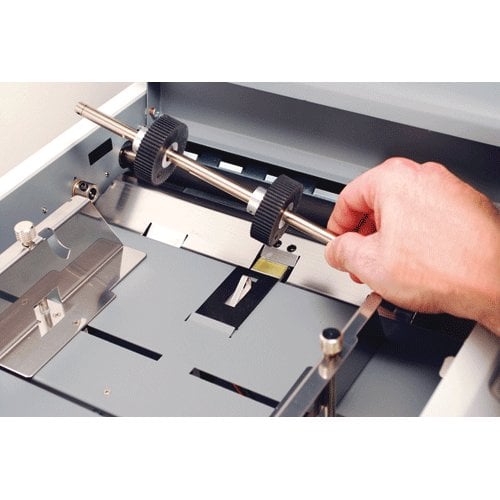

- Easy-Off Feed Wheel Shaft: Feed wheels can be changed without removing side covers
- Seven Point Fold Stops: Fold plates utilize seven point fold stops for crisp, accurate folds of large paper sizes at high speeds
- Removable Roller Cover: Easily removed for improved access to fold rollers and exit area
- Options:
- Locking Cabinet: Fully enclosed for storage
- V-Stack36i Vertical Stacker: Aligns with FD 38Xi outfeed and vertically stacks up to 22" of folded documents, making them easier to unload for further processing
Specifications
- Speed: Up to 17,000 sheets per hour - based on 11" (279mm) Z-Fold
- Hopper Capacity: Up to 500 sheets 20# (75 gsm)
- Pre-Set Folds: Pre-programmed for C,V,Z, Gate, Fold Out and Double Parallel
- Pre-Set Paper Sizes: 11", 14", 17", A5, A4, A3, B6, B5, B4
- Custom Folds: Up to 36
- Paper Size:
- Min: 3.5" W x 5" L (88.9 W x 127 L mm)
- Max: 12.25" W x 18" L (311 W x 457 L mm)
- Dimensions:
- Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm)
- Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)
- Weight: 73 lbs (33kg)
- Power: 110-240VAC 50/60 Hz
- Safety Certifications: UL & CE applied for
- Manufacturer's Warranty: 90-Day Manufacturer's Warranty on Parts
Compare to Similar Paper Folders
-
Model NameModelSpeedHopper CapacityPre-Set FoldsPre-MarkedPaper SizesPaper SizeDimensionsWeightPowerOptionSafety CertificationsWarranty
-
FD-346
Up to 15,500 sheets per hour – based on 11" (279mm) Z-Fold, 6 SettingsUp to 500 sheets 20# (75gsm)C, V, Z, Gate, Fold Out and Double ParallelFD Model: 11", 14", 17"FE Model: A5, A4, A3, B6, B5, B4Min: 3.5" W x 5" L (88.9 W x 127 L mm), Max: 12.25" W x 18" L (311 W x 457 L mm)Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm), Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)67 lbs (30kg)FD Model: 110VAC 50/60 HzFD 300-20 - Multi-Sheet FeederUL, CUL, and CE approved90 Days Warranty Parts -
FD 386
Up to 17,000 sheets per hour – based on 11" (279mm) Z-FoldUp to 500 sheets 20# (75 gsm)Pre-programmed for C,V,Z, Gate, Fold Out and Double ParallelN/A11", 14", 17", A5, A4, A3, B6, B5, B4Min: 3.5" W x 5" L (88.9 W x 127 L mm), Max: 12.25" W x 18" L (311 W x 457 L mm)Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm), Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)73 lbs (33kg)110-240VAC 50/60 HzFD 300-20 - Multi-Sheet FeederUL & CE applied for90 Days Warranty Parts -
FD 38Xi
Up to 17,000 sheets per hour – based on 11" (279mm) Z-FoldUp to 500 sheets 20# (75 gsm)Pre-programmed for C,V,Z, Gate, Fold Out and Double ParallelN/A11", 14", 17", A5, A4, A3, B6, B5, B4Min: 3.5" W x 5" L (88.9 W x 127 L mm), Max: 12.25" W x 18" L (311 W x 457 L mm)Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm), Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)73 lbs (33kg)110-240VAC 50/60 HzN/AUL & CE applied for90-Day Warranty on Parts
