Product Description

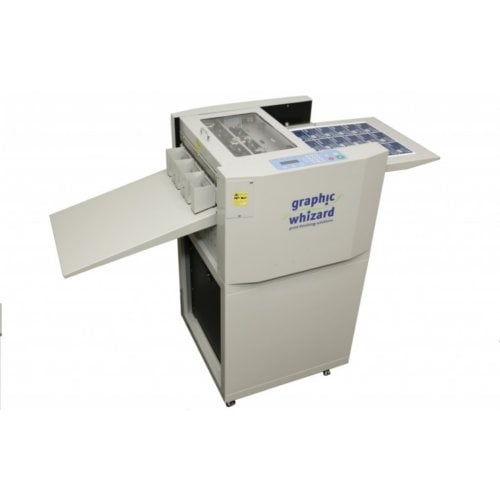

The Graphic Whizard PT-331SCC can slit, cut, crease or perf up to 350gsm paper in a single pass. It can accommodate up to 13" x 26" paper size ,and can do 32 cuts and creases at a time. The PT-331SCC is also featured with interchangeable crease/perf dies, full or partial cross perf, preset programs for quick job changeover, manual cut/crease input for customized jobs, and easy change slitting formats without the need of replacing cartridges.
Product Details
- Slit, cut, crease or perf in a single pass.
- 150-350 gsm.
- Interchangeable crease/ perf dies.
- Full or partial cross perf.
- Up to 32 creases/ perfs in one pass.
- Registration mark cut compensation.
- Preset programs for quick job changeover.
- Manual cut/crease input for customized jobs.
- Easily change slitting formats without the need of replacing cartidges.
Specifications
- Electrical: 110V, 50/60Hz, 15A
- Paper Weight: 150-350 gsm
- Stock Input Size: Min - 8.2" x 8.2" / Max - 13" x 26"
- Finished Output Size: Min - 2" x 1.8" / Max - 13" x 26"
- Crease/Perforate: 0-32 per pass
- Minimum Gap between Crease: 0.1 mm
- Display and Operation: LCD screen and keypad
- Feed: Handfed
- Image Shift Compensation: Cut compensation (Y axis)
- Gutter Slit: 8mm
- Gutter Cut: 0mm or 3mm - 15mm
- Manufacturer's Warranty: 3 Year Manufacturer Mechanical Parts and Electronics
