We're sorry, but we no longer offer this item.
Call us at 1-800-944-4573 for personalized recommendations
check out these similar items that may be a good fit
Product Description

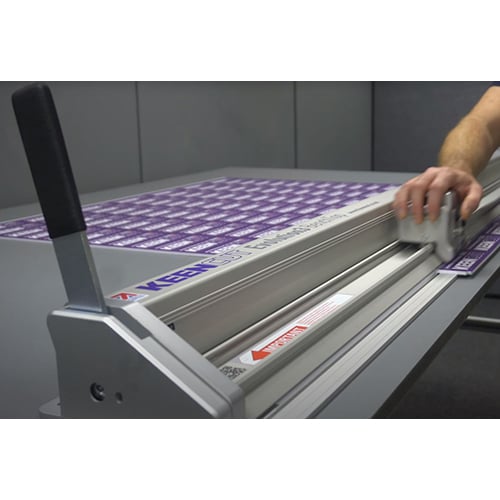

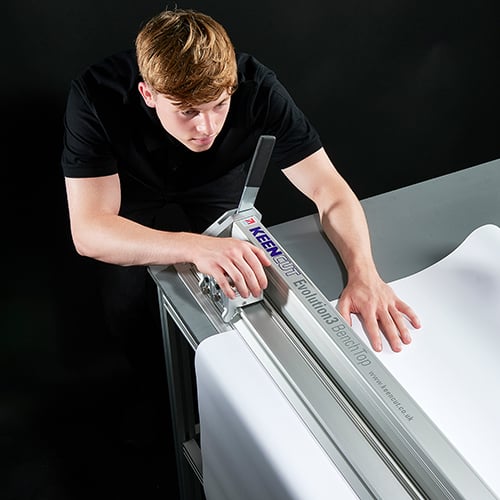

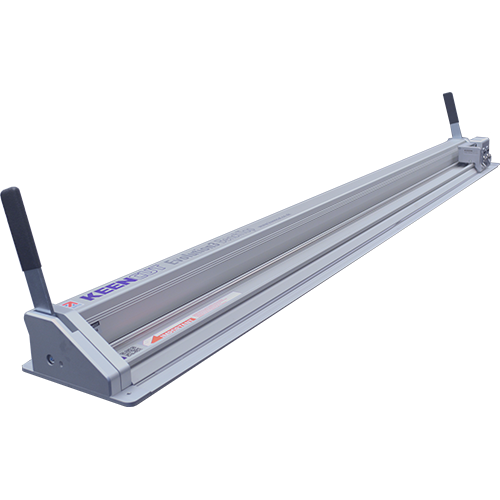

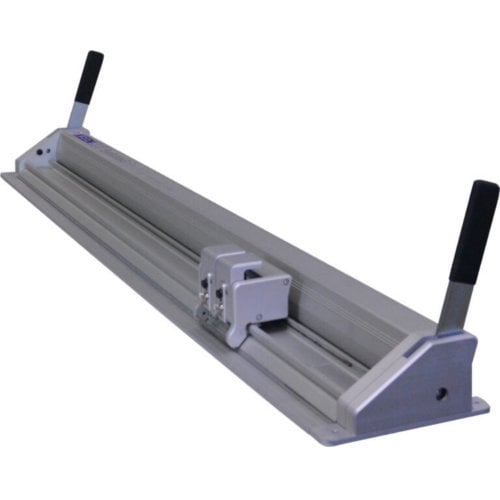

The Keencut Evolution3 160" BenchTop Cutter is perfect for a busy studio or medium use production environment. It is guaranteed to cut within .008" of a straight line for the length of the cut. The Lift-and-Hover saves time and avoids mistakes allowing users to line up their cuts quicker and more accurately. The site line strip enables operators to see exactly where the cut line is. The stainless steel slideway track and rollers on the QuikSwap tool heads provide a very strong and steady movement up and down the machine, with very little sideways motion that could misalign the cut. Plus, it is equipped with Anti-sag system that holds the cutter bar level for accurate line-up. This Keencut Evolution3 160" BenchTop Cutter is perfect for cutting up to 1/2" thick materials such as foam boards, banners, corrugated plastic, paper, tissue, card, fabric & textiles, inkjet media, pvc booard (up to 10mm thick),and acrylic (score & snap up to 1/4"). The Keencut Evolution3 BenchTop Cutter is designed to fit the optional Keencut BenchTop Bench. Combine the BenchTop Bench with the Evolution3 BenchTop cutter to create the ultimate precision cutting table. Looking to Cut ACM? Keencut’s new Evolution3 Rocker tool head (sold separately) is a general-purpose cutting head. It has an ergonomic design which follows the natural curvature of your hand and offers maximum comfort for all-day cutting. The Rocker tool head will cut materials such as banners, cardboard and foamboard up to 10mm (3/8″) and can be used for occasional cutting of aluminum composite panels.Product Details
- Materials cut:
- Semi-rigid materials
- Corrugated cardboard ≤ 13mm (1/2″)
- PVC foamboard ≤ 13mm (1/2″)
- Corrugated plastic ≤ 13mm (1/2″)
- Foam centred board ≤ 13mm (1/2″)
- Rigid materials
- Cast acrylic / Plexiglas ≤ 3mm (3/32″) scoring only
- Aluminium composite panel, e.g. DiBond ≤ 3mm (3/32″) Rocker tool head only, for occasional use
- Flexible materials
- Banners
- Pop-ups
- Magnetic sheets
- Film
- Self-adhesive vinyls
- Textiles
- Delicate materials: tissue paper, wallpaper
- Semi-rigid materials
- Dimensions:
- Cut Length cm ("): 410cm (161")
- A cm ("): 448 cm (176")
- B cm ("): 20.5cm (8")
- Packed Weight: 72kg (159 lbs)
- Packed Dimensions cm ("): 462 x 38 x 32cm (182" x 15" x 13")
- What's in the Box?
- One (1) Evolution3 160" BenchTop Cutter Bar
- 100 Graphik blades
- One (1) Double Graphik tool head (mounted)
- Warranty: 5 year Comprehensive Guarantee
Specifications
- Quick and easy to use - saves time and money
- Reliable and built to last with a 5-year warranty
- Lift-and-Hover (patent pending) for fast, accurate cut alignment
- Future-proof and versatile QuikSwap tool heads
- Guaranteed ultra high precision 0.2mm accuracy
- Cuts PVC foamboard up to 13mm
- Lift-and-Hover alignment system
- Quikswap Tool Heads:
Double Graphik tool head - Two-way cutting with two individual blade holders
- Graphik blades are stronger and more stable than regular blades
- Supplied as standard with every Evolution3
Ideal for: vinyl, banner, cardboard, up to 13mm PVC foamboard, foamcentred board, corrugated plastic & paper, pop-up & roll-up materials Fabric tool head - Spring-loaded cutting wheel
- Consistent pressure for reliable cutting
- Cuts in both directions
Ideal for: fabric, paper, film, vinyl, banners, delicate materials Creaser tool head - Creases corrugated and plain card
- A range of creaser wheels to suit different materials
Ideal for: stout paper and card, cardboard, grey board Rocker tool head - Versatile general-purpose tool
- Uses Medium duty blades for standard cutting & Tech D .012 Blades for ACM
Ideal for: banners, cardboard and foamboard up to 10mm (3/8″) & occasional cutting of aluminum composite panels up to 3mm (3/32”) - Product Guide:
- Quick and easy
- Raise the clamp with minimal effort
- Lift-and-Hover holds the cutter bar just above the media
- Anti-sag holds the cutter bar parallel to the surface of the media
- Sightline strip shows exactly where the cut will be made
- Simple to use
- Intuitive - minimal training needed
- Lift-and-Hover can be operated from either end
- Single person operation even with the largest sheet size
- Saves time and money
- Better alignment means fewer mistakes and less waste
- Faster working for higher productivity
- Reliable and built to last
- Designed and manufactured to Keencut’s exacting standards of precision
- 5-year warranty
- Fits With: 44" Evolution3 Benchtop Bench
- Quick and easy
Outstanding Features

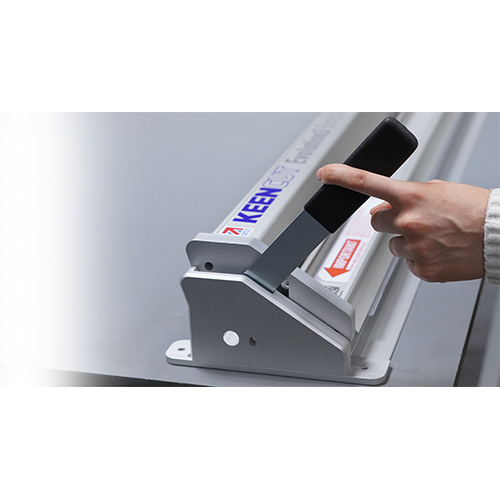

Single-handed, fast accurate alignment Two unique features enable single-handed, fast and accurate alignment of all materials irrespective of thickness. The Lift-and-Hover system enables the clamping bar to be easily raised and then lowered so it hovers just above the material surface. The anti-sag mechanism means the cutter bar can be suspended exactly parallel to the media surface over the whole length of the cut with zero sag, even on the longest sized cutter. |
Guaranteed accuracy The Evolution3 is the most accurate cutter of its type on the market and is guaranteed to cut within 0.2mm (0.008″) of a straight line for the full length of the cut. The in-built ultra-high precision accuracy, combined with the perfect alignment made possible using the sightline strip, means every butt-jointed panel will join seamlessly. This ultra-high precision accuracy will save you time and money with less waste and fewer mistakes. |
Total stability The self-adjusting track roller system fitted to the QuikSwap tool heads provides a strong and smooth movement up and down the length of the cutter bar, with zero sideways movement to ensure a perfect straight line. This, coupled with rigid blade clamping, gives perfect blade control and spot-on accuracy, so less wastage and mistakes. |
|||||
Simple to use The combination of the Lift-and-Hover and the sightline strip really does make cutting easier and faster than ever before. Even first-time users will be able to cut accurately with confidence. |
Heavy duty reliability The entire Evolution3 range has been built to last, using high quality materials and well tested engineering principles. The cutting head bearing system and clamping are tough enough to keep perfect blade control, even with the most difficult of materials. Keencut makes the majority of components on its precision CNC machines, keeping tolerances and quality under constant control, assuring exceptional accuracy and total reliability |
Future proof and versatile QuikSwap tool heads The QuikSwap tool head family gives users the ultimate flexibility. Each tool is designed for a specific purpose, such as general cutting, creasing and fabric cutting and can be attached or detached from the cutter in seconds. You can mount single or multiple tool heads to suit your work. The Graphik tool head is supplied as standard with other optional QuikSwap tool heads available to extend your cutting capability. New tools are also being developed to meet emerging requirements. |
|||||
The versatile Rocker head The optional Rocker tool head is the latest addition to the QuikSwap range. It is a versatile general-purpose tool for cutting materials such as banners, cardboard and foamboard up to 10mm (3/8″). The ergonomic design follows the natural curvature of your hand and offers maximum comfort for everyday cutting. It also provides two-way cutting – pulling to cut lighter weight materials and pushing for those that require more effort. For those who occasionally cut aluminium composite panels, such as Dibond or Alupanel, the Rocker head can be fitted with the Tech-D.012 blade. The cutting technique requires a series of careful strokes and we advise that you watch our video guide to perfect your cutting action. |
Five year guarantee Like all Keencut machines, the Evolution3 is built to give many years of excellent service. All components are manufactured in-house to ensure quality and all Evolution3 cutters come with a five year comprehensive guarantee. |
In the box 100 Graphik blades |
|||||
Evolution3 BenchTop Cutters
| Product Name | Item Number |
| Keencut Evolution3 44" BenchTop Cutter | E3BT110 |
| Keencut Evolution3 64" BenchTop Cutter | E3BT160 |
| Keencut Evolution3 84" BenchTop Cutter | E3BT210 |
| Keencut Evolution3 104" BenchTop Cutter | E3BT260 |
| Keencut Evolution3 124" BenchTop Cutter | E3BT310 |
| Keencut Evolution3 142" BenchTop Cutter | E3BT360 |
| Keencut Evolution3 160" BenchTop Cutter | E3BT410 |
| Keencut Evolution3 180" BenchTop Cutter | E3BT460 |
| Keencut Evolution3 200" BenchTop Cutter | E3BT510 |
Evolution3 BenchTop Benches
| Product Name | Item Number |
| To fit Evolution3 BenchTop 44" cutter | BTB110 |
| To fit Evolution3 BenchTop 64" cutter | BTB160 |
| To fit Evolution3 BenchTop 84 cutter | BTB210 |
| To fit Evolution3 BenchTop 104" cutter | BTB260 |
| To fit Evolution3 BenchTop 124" cutter | BTB310 |
| To fit Evolution3 BenchTop 142" cutter | BTB360 |
| To fit Evolution3 BenchTop 160" cutter | BTB410 |
| To fit Evolution3 BenchTop 180" cutter | BTB460 |
| To fit Evolution3 BenchTop 200" cutter | BTB510 |
Evolution3 Tool Heads
| Product Name | Item Number |
| Creaser Tool Head | E3T-CRE |
| Fabric Tool Head; uses 45mm textile blades | E3T-FAB |
| Double Graphik Tool Head; fits CA50-032 blades | E3T-GR2 |
| Rocker tool head for Evolution3 | E3T-ROC |
Evolution3 Blades & Consumables
| Product Name | Item Number |
| Textile Cutting Strip for Evolution3 SmartFold (2 x 15ft long) | EVOTCS |
| Yellow 'T' shape silicon cord (x 33ft) | SILYT |
| Medium Duty Blades for Rocker head (Box of 100) | CA50-019 |
| Tech D .012 Blades for Rocker Head(Box of 100) | CA50-017 |
| Graphik Blades (Box of 100) | CA50-032 |
| Olfa 45mm Circular Textile Blades (Pack of 10) | CIR45 |
Quick Cutter Guide
| Model Name | SteelTrak | Excalibur 3S | Evolution3 SmartFold | Evolution3 BenchTop | Evolution3 FreeHand | Sabre Series 2 | Simplex |
|---|---|---|---|---|---|---|---|
| Model |  |
 |
 |
 |
 |
 |
 |
| Cut sizes | 165cm (65") 210cm (82") 250cm (98") |
160cm (63") |
110cm (44") 160cm (64") 210cm (84") 260cm (104") 310cm (124") 360cm (142") 410cm (160") 460cm (180") 510cm (200") |
110cm (44") 160cm (64") 210cm (84") 260cm (104") 310cm (124") 360cm (142") 410cm (160") 460cm (180") 510cm (200") |
110cm (44") 160cm (64") 210cm (84") 260cm (104") 310cm (124") |
100cm (40") 150cm (60") 200cm (80") 250cm (100") 300cm (120") |
110cm (44") 160cm (64") 210cm (84") 260cm (104") 310cm (124") |
| Why buy? | Volume production of rigid and semi rigid materials. Need to V-groove. | Some need to cut rigid and semi rigid materials | Production cutting needs with high accuracy for semi rigid and light weight materials. Need to free up space on workbench by folding down. No need for cutting mat - integrate cutting strip included. | Regular cutting needs with high accuracy for semi rigid and lightweight materials. Cutting mat required if using Fabric head. | Portable cutting with high accuracy. Cutting mat required. | General purpose cutting of most standard semi rigid and light weight materials with less need for accuracy. Cutting mat required if using fabric blade. | Light cutting needs with little accuracy and a high need for portability. Cutting mat required. |
| Aluminimum composite panel e.g Dibond | = 4mm (1/8") | = 3mm (3/32") | = 3mm (3/32") scoring with Rocker tool head only | ≤ 3mm (3/32") scoring with Rocker tool head only | N/A | N/A | N/A |
| Steel composite panel e.g Multishield | = 3mm (3/32") | N/A | N/A | N/A | N/A | N/A | N/A |
| V-grooves Dibond | = 6mm (3/32") - with optional v-grooving tool in 5 size | N/A | N/A | N/A | N/A | N/A | N/A |
| MDF | = 3mm (3/32") | = 3mm (3/32") | N/A | N/A | N/A | N/A | N/A |
| Cast acrylic e.g Plexiglas | = 3mm (3/32") - Scoring only | = 3mm (3/32") - Scoring only | = 3mm (3/32") - Scoring only | ≤ 3mm (3/32") - Scoring only | ≤ 3mm (3/32") - Scoring only | ≤ 3mm (3/32") - Scoring only | ≤ 3mm (3/32") - Scoring only with optional SCO |
| Glass | = 6mm (1/4") - with optional glass scoring kit | N/A | N/A | N/A | N/A | N/A | N/A |
| PVC foamboard | = 13mm (1/2") | = 13mm (1/2") | = 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 6mm (1/4") |
| Corrugated/fluted plastic | = 13mm (1/2") | = 13mm (1/2") | = 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 10mm (3/8") |
| Corrugated cardboard | = 13mm (1/2") | = 13mm (1/2") | = 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 10mm (3/8") |
| Foam centred board | = 13mm (1/2") | N/A | = 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 10mm (3/8") |
| Mountboard | = 6mm (1/4") | N/A | N/A | N/A | N/A | N/A | N/A |
| Aluminimum sheet | = 1mm (1/4") - with optional cutting head | N/A | N/A | N/A | N/A | N/A | N/A |
| Banners | N/A | N/A | Yes | Yes | Yes | Yes | Yes |
| Pop-ups | N/A | N/A | Yes | Yes | N/A | N/A | N/A |
| Film & self-adhesive vinyls | N/A | N/A | Yes | Yes | Yes | Yes | Yes |
| Magnetic sheet | N/A | N/A | Yes | Yes | Yes | Yes | Yes |
| Textiles, tissue paper and wallpaper | N/A | N/A | Yes | Yes | Yes | Yes | Yes - with optional textile cutter |
| Included with machine | 100 medium duty utility blades, Twin wheel cutter, spare sightline strip | 100 medium duty utility blades, Twin wheel cutter, spare sightline strip | 100 Graphik blades, double Graphik tool head | 100 Graphik blades, double Graphik tool head | 100 Graphik blades, double Graphik tool head | 100 medium duty utility blades, 10 Graphik blades, 1 Graphik blade holder, 1 rotary blade holder, 1 medium duty blade holder | 100 medium duty utility blades |
| Accessories |
Medium duty utility blades V-groove tool blades for vgroove tool free standing kit glass cutting kit aluminium cutting head Squaring arm extension |
Medium duty utility blades free standing kit Squaring arm extension |
Graphik blades Fabric tool head Creaser tool head Rocker tool head techD.012 blades SmartFold bench |
Graphik blades Fabric tool head Creaser tool head Rocker tool head techD.012 blades BenchTop bench |
Graphik blades Fabric tool head Creaser tool head Rocker tool head techD.012 blades BenchTop bench or M-Bench System |
Stand pack Extended squaring arm Hot knife holder Medium duty utility blades Graphik blades 45mm Circular blades |
Textile cutter Medium duty utility blades Scoring blades |
