Product Description

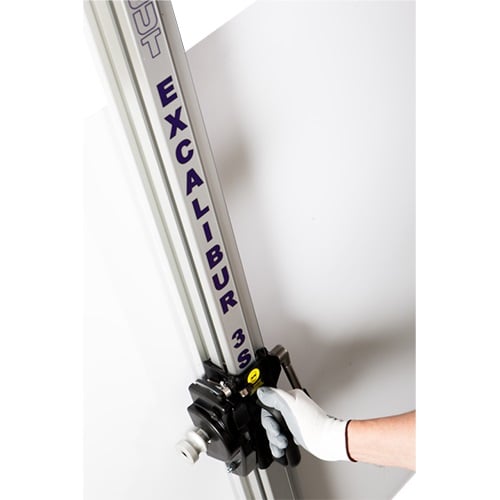

The Keencut Excalibur 3S 63" Vertical Multi-Substrate Cutter provides most of the cutting capabilities of the SteelTrak cutters at an economical price. It is featured with new self-lubricating bearings, included on both cutting heads, that can handle harder substrates such as Aluminum Composite, PVC, foam board and other rigid substrates used by sign makers. The Keencut Excalibur 3S cuts materials up to 13mm (1/2") thick and up to 63" long. Operators can quickly access all 3 cutting tools (composite twin wheel cutting head, standard utility blade, and scoring blade for acrylic) as they are attached to the cutting head. Plus, all the blades of Keencut Excalibur 3S cut on the same line, leaving no wasted panels and making sure that no mistakes guessing where the cut line is. If you are looking for an affordable and best-value vertical substrate cutter, then the Keencut Excalibur 3S is the perfect match for you.
Product Details
- Cuts heavy-duty materials easily
- Consistent perfect cuts
- Precision engineered for accuracy
- Includes three tools as standard
- No dust, debris or static build up
- Quick payback through reduced waste and cutting time
- Safety by design
- Simple intuitive operation
- Manufactured with premium quality materials
- Guaranteed for 5 years
Perfect cuts Accuracy is assured with a clear sightline strip acting as your guide to precise alignment. A one-piece horizontal squaring arm ensures positioning and rigidity either side of the cut line. Once aligned, materials are held firmly by a unique pressure-sensitive clamp, which is designed to protect delicate surfaces from damage. |

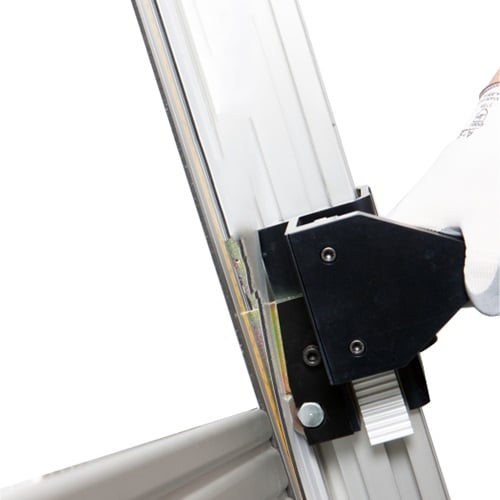

Safety by design Blades are securely mounted within the cutter head and fitted with a safety lock so all of the blades automatically disengage when not in use. When in operation the Excalibur 3S creates no distracting noise and no dust. |

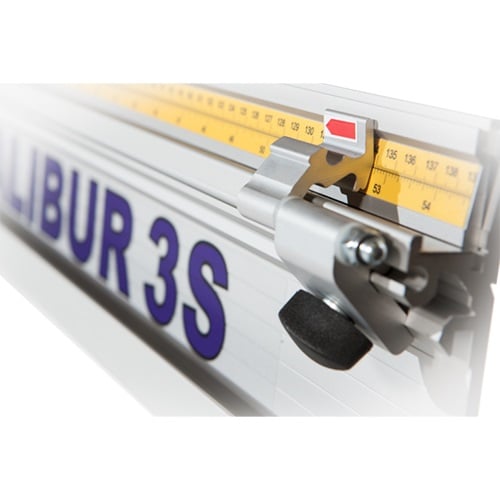

Reduces set-up time To increase productivity, the Excalibur 3S has been designed for a quick set-up. The cutting and scoring tools are permanently fitted for immediate engagement and the quick set production stops can be adjusted rapidly to provide consistent high production runs or one-off cutting. |
|||

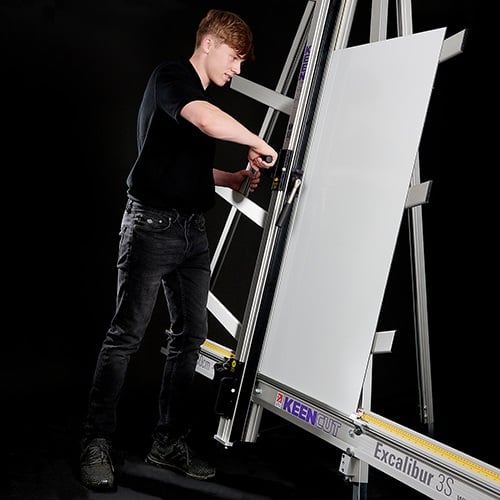

Reduces user fatigue The vertical design utilises body weight to minimise the effort needed to cut tough materials, there is no need for electric power. The upright cutting position and the low friction bearing system combine to reduce user fatigue, whilst telescopic legs can be fixed at the most comfortable working height. |

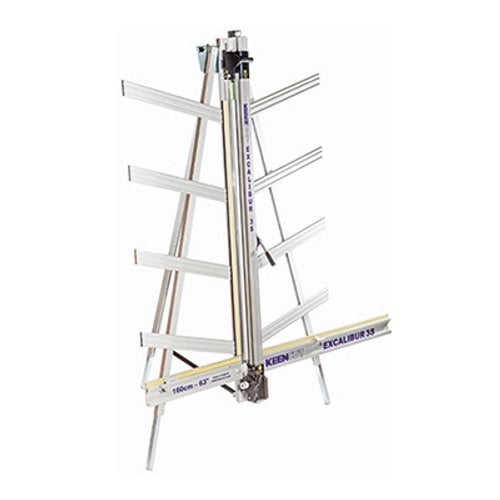

Space conscious The option for wall mounting saves workshop space but for those with limited wall space or requiring more flexibility, a free-standing kit is available. |
Cost-effective solution The lower cutter uses off-the-shelf blades, so no costly specialist blades are required. The twin wheel cutters circular blades are made of high-grade tool steel. |
|||
Versatile cutter The Excalibur 3S will cut a wide variety of materials. The twin wheel cutter will tackle tougher materials including aluminium composite panels, e.g DiBond and MDF up to 3mm (3/32"), producing a clean, safe edge in a single pass. |
Five year guarantee By manufacturing in-house, with only the highest quality materials, Keencut can guarantee that the Excalibur 3S will provide reliable long-lasting and accurate service. All Keencut products are offered with a comprehensive five year guarantee |
In the box 100 medium duty utility blades |
Specifications
- Materials cut:
- Rigid materials
- Aluminium composite panel, e.g Dibond ≤ 3mm (3/32")
- MDF ≤ 3mm (3/32")
- Cast acrylic / Plexiglas ≤ 3mm (3/32") (scoring only)
- Semi-rigid materials
- PVC foamboard ≤ 13mm (1/2")
- Corrugated/fluted plastic, e.g Correx ≤ 13mm (1/2")
- Corrugated cardboard ≤ 13mm (1/2")
- Foam centred board ≤ 13mm (1/2")
- Magnetic sheet ≤ 4mm (1/8")
- Rigid materials
- Dimensions:
- Cut Length cm ("): 160cm (63")
- A cm ("): 244cm (96")
- B cm ("): 213cm (84")
- Wall Mounted - Standard - C cm ("): 30 - 40 (12 - 16)
- Free-standing - Optional - C cm ("): 80 - 90 (32 - 36)
- Packed Weight: 67kg (147lbs)
- Packed Dimensions cm ("): 231 x 40 x 30cm (91 x 16 x 12")
- Manufacturer's Warranty: Guaranteed for 5 years
- Old Part Number: 60373
- New Part Number: EXC3S
Replacement Blades and Accessories
| Product Name | Item Number |
| Medium Duty Utility Blades (100) | CA50-019 |
| Composite/Masonite twin wheel blade set for Excalibur | EXCOW |
| Yellow 'T' shape silicon cord (x 33ft) | KX12 |
| Superior Quality Blades (box of 100) | CA50-010 |
Quick Cutter Guide
-
Product NameModelCut sizesWhy buy?Aluminimum composite panel e.g DibondSteel composite panel e.g MultishieldV-grooves DibondMDFCast acrylic e.g PlexiglasGlassPVC foamboardCorrugated/fluted plasticCorrugated cardboardFoam centred boardMountboardAluminimum sheetBannersPop-upsFilm & self-adhesive vinylsMagnetic sheetTextiles, tissue paper and wallpaperIncluded with machineAccessories
-
SteelTrak
Volume production of rigid and semi rigid materials. Need to V-groove.= 4mm (1/8")= 3mm (3/32")= 6mm (3/32") - with optional v-grooving tool in 5 size= 3mm (3/32")= 3mm (3/32") - Scoring only= 6mm (1/4") - with optional glass scoring kit= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")= 6mm (1/4")= 1mm (1/4") - with optional cutting headN/AN/AN/AN/AN/A100 medium duty utility blades
Twin wheel cutter
spare sightline strip -
Excalibur 3S
Some need to cut rigid and semi rigid materials= 3mm (3/32")N/AN/A= 3mm (3/32")= 3mm (3/32") - Scoring onlyN/A= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")N/AN/AN/AN/AN/AN/AN/A100 medium duty utility blades
Twin wheel cutter
spare sightline strip -
Evolution3 SmartFold
Production cutting needs with high accuracy for semi rigid and light weight materials. Need to free up space on workbench by folding down. No need for cutting mat - integrate cutting strip included.= 3mm (3/32") scoring with Rocker tool head onlyN/AN/AN/A= 3mm (3/32") - Scoring onlyN/A= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")N/AN/AYesYesYesYesYes100 Graphik blades, double Graphik tool head -
Evolution3 BenchTop
Regular cutting needs with high accuracy for semi rigid and lightweight materials. Cutting mat required if using Fabric head.= 3mm (3/32") scoring with Rocker tool head onlyN/AN/AN/A= 3mm (3/32") - Scoring onlyN/A= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")N/AN/AYesYesYesYesYes100 Graphik blades, double Graphik tool head -
Evolution3 FreeHand
Portable cutting with high accuracy. Cutting mat required.N/AN/AN/AN/A= 3mm (3/32") - Scoring onlyN/A= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")N/AN/AYesN/AYesYesYes100 Graphik blades, double Graphik tool head -
Sabre Series 2
General purpose cutting of most standard semi rigid and light weight materials with less need for accuracy. Cutting mat required if using fabric blade.N/AN/AN/AN/A= 3mm (3/32") - Scoring onlyN/A= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")= 13mm (1/2")N/AN/AYesN/AYesYesYes100 medium duty utility blades, 10 Graphik blades, 1 Graphik blade holder, 1 rotary blade holder, 1 medium duty blade holder -
Simplex
Light cutting needs with little accuracy and a high need for portability. Cutting mat required.N/AN/AN/AN/A= 3mm (3/32") - Scoring only with optional SCON/A= 6mm (1/4")= 10mm (3/8")= 10mm (3/8")= 10mm (3/8")N/AN/AYesN/AYesYesYes - with optional textile cutter100 medium duty utility blades
