Name: Martin Yale 1501X AutoFolder Paper Folding Machine
Brand: Martin Yale
SKU: 1501X
Rating: 5.0 (1 reviews)

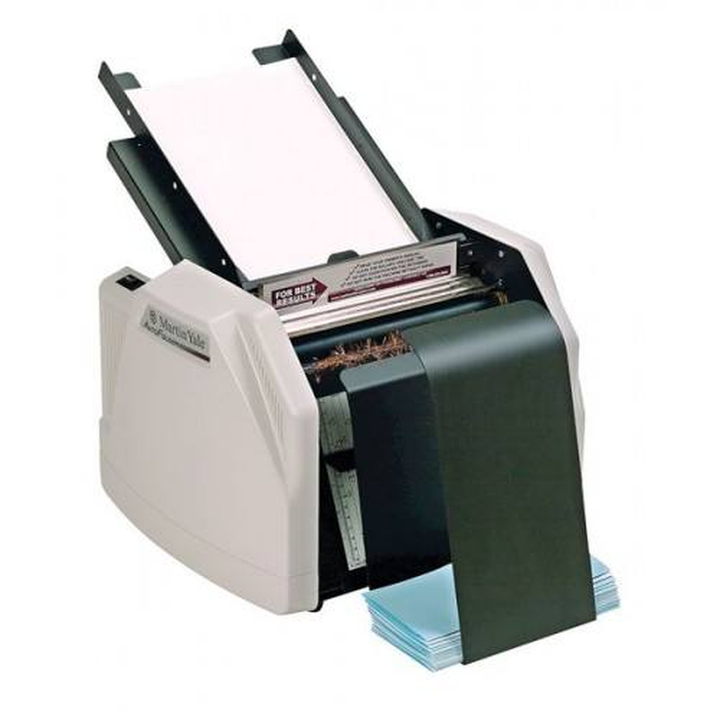

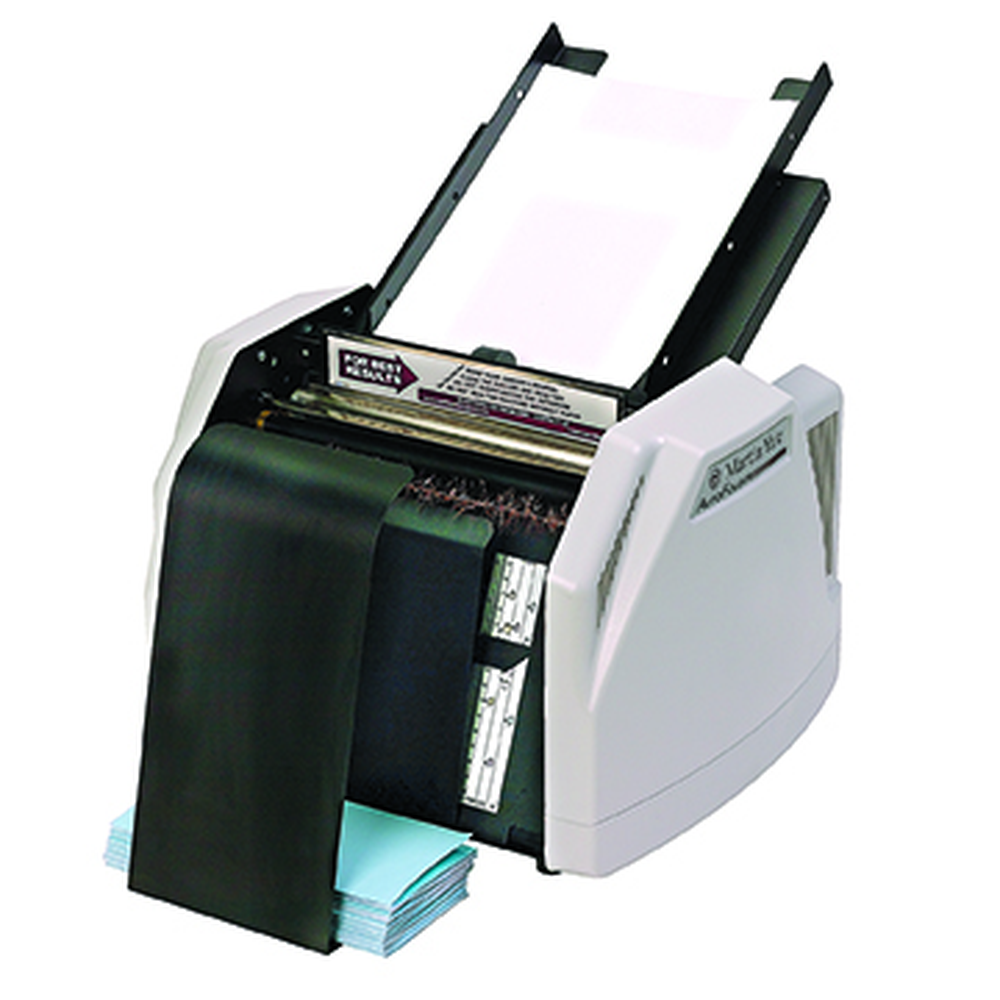

Martin Yale 1501X AutoFolder Paper Folding Machine

$1,513.51

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# 1501X

Automatically folds sizes from 8.5" x 11" and 8.5" x 14", 16-28lb. bond paper, 60gsm to 105gsm.
Stapled sets of up to 3 sheets can be folded by manual feeding documents into the feed table bypass.
Five different fold types: Letter fold, Half fold, Z-fold, Double-Parallel fold, and Gate fold.
Paper Folding Capacity: 7,500 sheets per hour

Product Description

The Martin Yale 1501x Autofolder paper folding machine offer the productivity that you need without becoming overly complicated. In fact, it is a popular choice with Churches, Schools, businesses and associations who are looking for a solid high quality paper folder for a great price. The 1501x is capable of handling both letter and legal sized sheets and is capable of producing four different folds at a speed of 8,000 sheets per hour. You can load up to 200 sheets of paper into the feed hopper press the button and let the 1501 do its magic. The Martin Yale 1501x will even fold sets of 3 sheets through its bypass tray. It offers an incredible set of features for a great value. Check out the Martin Yale 1501x Autofolder today.

Product Details

Automatically folds sizes from 8.5" x 11" and 8.5" x 14", 16-28lb. bond paper, 60gsm to 105gsm.

Operates at a speed of up to 7,500 sheets per hour.

Handles sheets sizes starting at 3.5" x 5".

Stapled sets of up to 3 sheets can be folded by manual feeding documents into the feed table bypass.

Five different fold types: Letter fold, Half fold, Z-fold, Double-Parallel fold, and Gate fold.

Specifications

Paper Folding Capacity: 7,500 sheets per hour

Electrical: 115v/230

Dimensions: 24" W x 15" D x 16" H

Manual Paper Feed: up to 3 sheets

Feed Tray Capacity: up to 150 sheets

Weight: 23.3 lbs.

Manufacturer's Warranty: 180 Day Manufacturer's Warranty (Extended Warranties Available)

Spiral / Binding101 Part Number: 04MY1501X

Compare to Similar Paper Folding Machines

Model

1217A AutoFolder

1501X AutoFolder

P7400 RapidFold Desktop AutoFolder

P7200 RapidFold Desktop AutoFolder

P6400 Desktop Paper Folder

P6200 Desktop Paper Folder

Usage

Small to Medium Jobs

Small Jobs at Desktop

Setup Type

Manual Setup

Hand Feed

Speed Shts/Hr

10300

7500

4000

Up to 1800 sets

Fold Types

Ltr, Half, Z, Double Parallel, Church

Ltr, Half, Z, Double Parallel

Ltr & Half

Ltr Only

Sheet Size Range

Min: 4" x 4"
Max: 12" x 18"

Min: 3 1/2" x 5"
Max: 8 3/4" x 14"

Min: 8 1/2" x 11"
Max: 8 1/2" x 14"

Min: 8 1/2" x 11"
Max: 8 1/2" x 11"

Min: 8 1/2" x 11"
Max: 8 1/2" x 11""

Feed Table Capacity

250 Sheets of 20# Paper

167 Sheets of 20# Paper

50 Sheets of 20# Paper

Hand Feed

Exit Conveyor

Yes

Skew Controls

Yes

Automatic Off

Variable Speed

Auto-Jam Detect

Yes

Size (W x D x H)

42" x 17.5" x 17"

24" x 15" x 16"

20" x 13" x 10 1/2"

14 1/4" x 6 3/4" x 7"

13" x 5 3/4" x 5 7/8"

Shpg. Wt.

59 lbs.

38 lbs.

17 lbs.

20 lbs.

12 lbs.

11 lbs.

Mfr. Warranty

Manufacturer's one-year limited warranty

Paper Weight Range

Min: 16# bond
Max: 135# Index

Min: 16# bond
Max: 28# bond

Min: 20# bond
Max: 24# bond

Maintenance Kit Number

PRE-WRA1217XSP

PRE-WRA1501XSP

PRE-WRAP7400SP

PRE-WRAP6400SP

Paper Weight Range

Feed Wheel, Retarder, Cleaning Pad, Roller Cleaner

Feed Wheel, Retarder Buttons, Cleaning Pad, Roller Cleaner

Tension Belts, Cleaning Pad, Roller Cleaner

Staff Review

Martin Yale 1501x AutoFolder Paper Folding Machine Review

A wide variety of automatic paper folders are available on the market today. But one to look at a little closer is the Martin Yale 1501x AutoFolder. This machine delivers functionality and productivity without being complicated to operate. Its compact, easy to use design combined with high speed performance make it perfect for churches, schools, and other businesses. Here is a more detailed look at the 1501x AutoFolder.

Strengths:

While slightly large to sit on a desk, this AutoFolder is still small enough for table top use. It weighs about 33 pounds, light enough to be moved around easily for shared use.
A large feed tray has capacity for 200 sheets of 20lb bond. The folder will automatically feed them into the machine, fold them, and then eject the finished product into the catch tray. A manual bypass allows up to three loose or stapled sheets to be folded together. This is very handy for multi-page invoices, newsletters, and correspondence.
This machine is mainly designed to handle letter, A4, and legal size documents. However, the manually adjustable fold plates allow custom folds for paper as small as 3-1/2" x 5" and as large as 8-3/4" x 14". The plates require simple adjustments with a preset guide to help you with the most common sizes and folds.
Four fold styles are offered by this machine: "C" fold, "Z" fold, half or single fold, and double parallel or engineering fold. The adjustable plates do allow for a variety of custom folds but require careful and precise modification to ensure straight folds.
Paper weights accepted by this device range from 16lb-28lb bond.
The motor is rated for output as fast as 7500 sheets per hour. However, it isn't recommended that you routinely use it at this rate. Doing so will quickly wear out your machine.
Martin Yale offers a one year limited warranty against defects. This does not include consumable parts, labor, or shipping costs.

Weaknesses:

This machine cannot fold heavier cardstocks, glossy paper, or coated materials. If your office doesn't frequently use these mediums, then this won't be an issue for you. But if these are commonly used for brochures or other documents, you will want to invest in a folder specifically designed with this capability.
The plates have to be manually adjusted. For a print shop where things are being moved around often, this may not be an issue. But many offices will find adjusting the plates to be a headache, as it can take much trial and error before getting them in the exact spot for precise folds. By upgrading to the 1701, you can eliminate the hassle and enjoy the simplicity of using electronically adjusted fold plates.

For many small to medium offices, the Martin Yale 1501x is an perfect system for quickly folding all their documents. Even with a few downsides, businesses not affected by these will appreciate the speed, capacity, and functionality of this device. The efficiency provided will increase productivity, saving both time and money. Eventually this machine will pay for itself. We think the Martin Yale 1501x is best suited for offices with moderate folding needs who mainly deal with one or two sizes of paper.
