Product Description

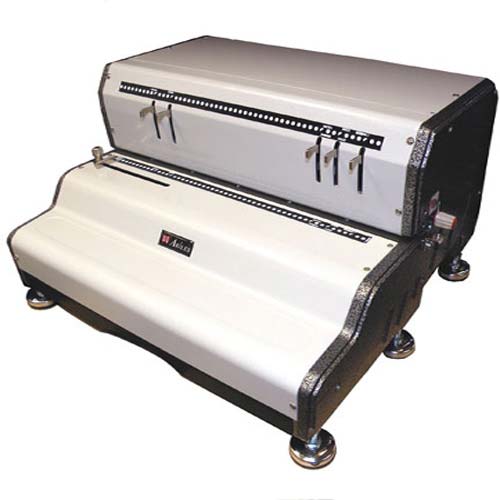

The Akiles CoilMac ECP41 Electric Coil Punching Machine is designed for professional, convenient, fast and easy punching. It is constructed from cast-hardened and heat-treated steel dies providing a premium strength and hardness. ECP41 is equipped with heavy-duty punch motor allowing single punches up to 25 sheets of 20 lbs paper. It features 5 disengageable pins specially designed to guarantee a clean punch with most standard paper size. Addition feature includes side and punching margin control, which delivers an evenly centered with the correct punch-margin-depth for all document sizes with every powerful punch. The Akiles CoilMac ECP41 made it easy to use with the electric punch operation, allowing the free use of both hands with the operator complete control of punching and inserting by a simple press of the foot pedal.
Product Details
- 5 Disengageable Punch Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes.
- Side Margin Control: Provides and evenly centered punch for all document sizes.
- Depth Margin Control: 4 settings provide the perfect punch margin depth for different coil sizes.
- Punching & Inserting Switch.
- Foot Pedal Operation: Allows the free use of both hands, with full control of punching and inserting.
- Waste Drawer
- Reverse (Anti-Jam) Function: For trouble free punching.
- Power Switch
- Heavy-Duty Punch Motor: Single punches up to 25 sheets of paper (20 lbs).
- Open Punching Throat & Continuous Punching Guide: For an easy alignment & punching of longer documents up to 26".
- Hardened Punch Die System: Individually cast-hardened and heat-treated steel punch dies ensures many years of trouble-free operation.
- Fully Featured / Reliable / Easy to Use / Powerful
- Punches 4:1 Pitch .250 (43 Hole) Pattern on 11" side
Specifications
- Model: CoilMac-ECP41
- Pitch: 4:1 (0.25")
- Punching Length: 13.5" (53 holes)
- Inserting: Electric
- Hole Punch: Round (4mm)
- Disengaging Dies: 5 out of 53
- Single Punching Capacity: Up to 25 sheets (20 lbs paper)
- Binding Capacity: Up to 2" (with Finish@Coil-M or E1)
- Crimping Pliers: Included
- Compatible Supplies: Plastic Spiral Binding Coils
- Weight / Volume: 60 lbs & 4.33 CbFt
- Warranty: 90 Day Warranty
Compare to Similar Coil Binding Machines
-
Coilmac-ECP Series, CoilMac-ECI Series and AlphaCoil-E
-
Model NameModelPitchPunching LengthInsertingHole PunchDisengaging DiesSingle Punching CapacityBinding CapacityCrimping PliersWeight / Volume
-
CoilMac ECP
4:1 (0.25")13.5" (53 holes)ElectricRound (4mm)5 out of 53Up to 25 sheets (20 lbs paper)Up to 2" (with Finish@Coil-M or E1)Included60 lbs & 4.33 CbFt -
CoilMac ECP41-Plus
4:1 (0.248")13.5" (54 holes)ElectricOval (4mm x 5mm)All 54Up to 25 sheets (20 lbs paper)Up to 2" (with Finish@Coil-M or E1)Included60 lbs & 4.33 CbFt -
CoilMac ECI 4:1
4:113" (53 dies)ElectricRound (4mm radius)5Up to 20 sheets (20 lbs paper)Up to 7/8"Included59 lbs / 2.8 CbFt -
CoilMac ECI 5:1
5:113" (65 dies)ElectricRound (4mm radius)5Up to 20 sheets (20 lbs paper)Up to 7/8"Included59 lbs / 2.8 CbFt -
Coilmac ECI+
4:113"ElectricOval (5mm x 4mm)FullUp to 20 sheets (20 lbs paper)Up to 7/8"Included59 lbs / 2.8 CbFt -
AlphaCoil-E
4:1 (0.25")Up to Letter / A4 SizeElectricRound (4mm)All 46Up to 20 sheets of 20Lb paperUp to 1" (Electric) / Up to 2" (Manual)Included49 Lbs & 1.9 CbFt
