Product Description

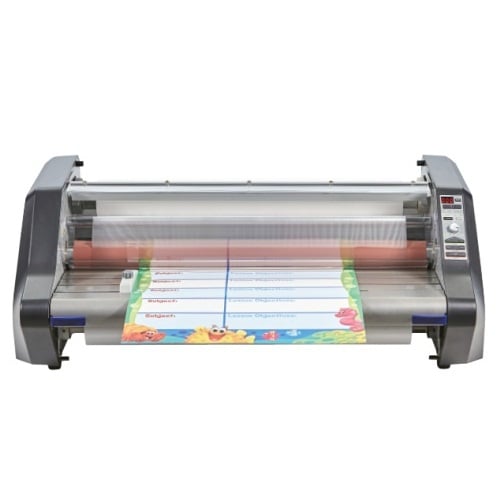

This new and improved GBC Ultima 65 Laminator now comes with an EZload film technology that is up to 50% faster than the old version. Unlike the old GBC Ultima 65 (1710740A), this new version has so many new features and improvements that will help increase your performance and productivity when laminating. Some of these new features are the following: less than 10-minute warm-up time, AutoGrip Shafts for easier and faster film replacement, Pivoting Table for easier access when changing film, Attached Idler Bar for easier film threading, AutoSpeed feature to always ensure that you are laminating at the right speed, Rear Stop Button to easily stop the machine while viewing output, and Footage Counter to conveniently track film usage. The GBC Ultima 65 accomodates film up to 3mil thick and can handle documents up to 27" wide. This GBC Ultima 65 EZload 27" Roll Laminator is the perfect solution for everything from posters to class photos.
Product Details

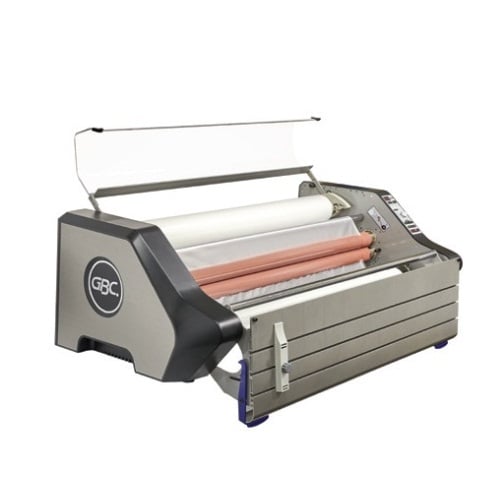

- Pivoting table and heat shield provide easier access when changing film, no need to remove the table.
- New Ultima 65 EZload film rolls are easier to install and take the guess work out of how to put the film in.

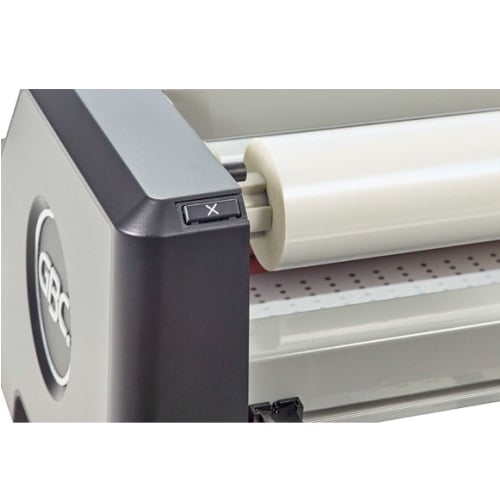

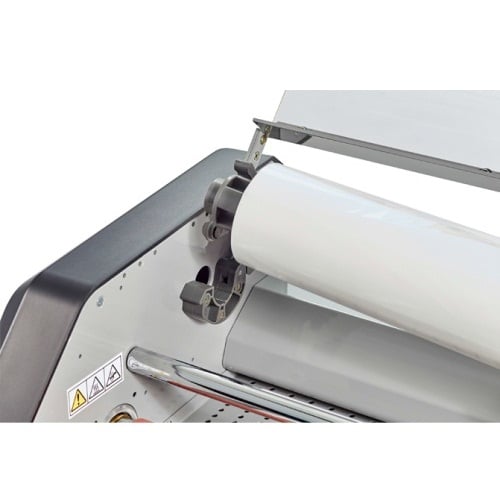

- With Standard Film, AutoGrip shafts make it simpler to remove and add film.
- AutoSpeed ensures quality lamination and eliminates the guess work of which speed to use.
- Additional stop button on the back of the machine allows the user to view the output and to easily stop the machine.

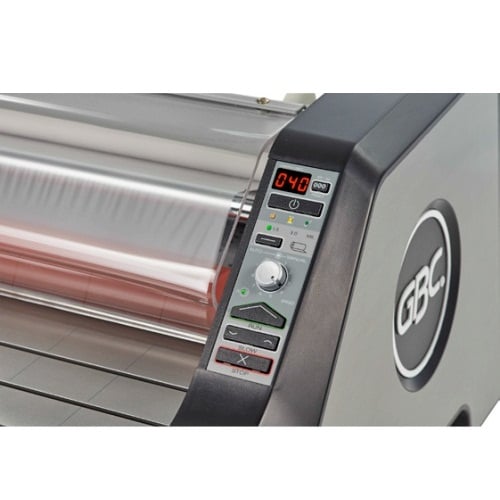

- Easy to use one touch control panel with large Run, Stop and Reverse buttons gives the user perfect control of the machine.
- Removable shaft hooks on the back of the machine reduce the chances of common film wraps and provide storage for AutoGrip shafts.
Specifications
- Warm-up Time: Less Than 10 Minutes
- Variable Speed: 2 - 10 ft./min.
- AutoSpeed: Yes
- Compatible Films: GBC Ultima 65 and Pinnacle 27 EZload Laminating Films
- Maximum Film Thickness: 3 mil
- Core Size: 1"
- Maximum Document Size: 27"
- AutoGrip Shafts: Yes
- Pivoting Table: Yes
- Attached Idler Bar: Yes
- Auto Speed: Yes
- Extended Exit with Shaft Hooks: Yes
- Ready Light Indicator: Yes
- Reverse Function: Yes
- Slow Forward Function: Yes
- Rear Stop Button: Yes
- Rear Trimmer: Yes

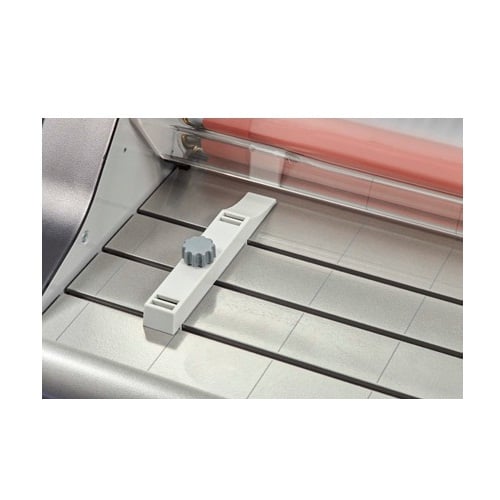

- Edge Guide: Yes
- Footage Counter: Yes
- Standby Mode: 2 hrs without use
- Auto Shut-off: 3 hrs without use
- Warranty: 90-Day Warranty
- Dimensions: 35" (W) x 21" (D) x 14" (H)
- Weight: 111 lbs
- Power Requirements: 120V, 60Hz
- Safety: CU, C/UL
Compare to Similar Laminators
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| Product Name | New GBC Catena 35 12" Roll Laminator - 1715835 | GBC Ultima 65 EZload 27 Inch School Roll Laminator - 1710740B | GBC Pinnacle 27 EZ Load 27" Thermal Roll Laminator - 1701720EZA | GBC Pinnacle 27 Standard 27" Thermal Roll Laminator - 1701700A | GBC HeatSeal Ultima 35 EzLoad 12" Roll Laminator - 1701680 |
| Product code | 1715835 | 1710740B | 1701720EZA | 1701700A | 1701680 |
| Core Diameter | 1" and 2.25" | 1" | |||
| Dimensions | 27" x 13" x 18" | 35" (W) x 21" (D) x 14" (H) | 42" x 15" x 24 1/2" | 42" x 15" x 24 1/2" | 18.11" x 11.14" x 16.92" |
| Thickness (mil) | Up to 10 mil | Up to 10 mil | |||
| Warm-up time (minutes) | 10 | 8-10 | 8-10 | 1 | |
| Warranty | None | Limited 90-day | Limited 1-year warranty | Limited 1-year warranty | Limited 1-year warranty |
Old vs New Model
 Old Ultima |
 New Ultima |
New Features/ Improvements |
|
|---|---|---|---|
| SKU | 1710740A | 1710740B | |
| Max. Document Size | 27" | 27" | |
| Max. Film Thickness | 3 mil | 3 mil | |
| Warm-Up Time | 10 min | <10 min | |
| Speed | Variable, up to 10' per min | Variable, up to 10' per min | |
| Standard School Film "Nap I" | ✔ | ✔ | |
| Ultima 65 EZload Film | ✔ | Up to 50% faster film loading. | |
| AutoGrip Shafts | ✔ | Makes placing standard film on the shaft easier and faster. | |
| Pivoting Table | ✔ | Improved access when changing the bottom roll and no need to find a place to put the table when changing film. | |
| Attached Idler Bar | ✔ | Eliminates need to cumbersomely thread film underneath the bar. | |
| AutoSpeed | ✔ | Always laminate at the right speed. | |
| Rear Stop Button | ✔ | No more reaching around the machine to try and find the stop button when waiting for your output. | |
| Footage Counter | ✔ | Conveniently track film usage. | |
| Extended Exit with Shaft Hooks | ✔ | Reduce the chances of film wraps and provide storage for AutoGrip shafts. | |
| Open Design | ✔ | Improved access when changing film or clearing jams. | |
| Slow Forward/Reverse Button | ✔ (Reverse Only) | ✔ | More control feeding smaller jams or clearing jams - works even when heat shield is open. |
| Rear Trimmer | ✔ | ✔ | |
| Edge Guide | ✔ | ✔ | |
| Standby Mode | 1 hour without use | 2 hours without use | We listened to teachers and extended the stand-by time without compromising safety. |
| Auto Shut-off | 2 hours without use | 3 hours without use | |
| Warranty | Limited 90-day | Limited 90-day |
