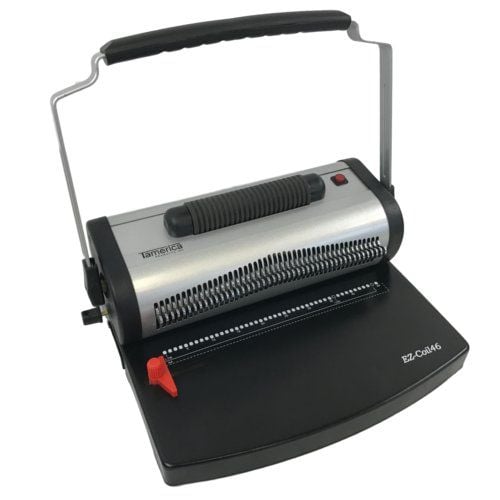

Tamerica EZ-Coil 46 Manual 4:1 Coil Punch and Bind Machine w/ Electric Inserter
219.00 NewCondition InStock

Tamerica EZ-Coil 46 Manual 4:1 Coil Punch and Bind Machine w/ Electric Inserter

Part #: EZ-COIL46
Brand: Tamerica
9 Questions, 9 Answers
Review
Rating:
100%
  • Die Pitch: 4:1 .248 Round Hole
  • Max Binding Capacity: 220 sheets
  • Disengageable Pins: 46
  • Adjustable Punch Depth: Yes
  • 1 Year Manufacturer's Warranty
  • Price Match Guarantee
  • Free Shipping

$219.00

Buy Now, Pay Later
Starting at $20/month
Learn More >

Qualifies for FREE Shipping!*

SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
video

Product Description

This Tamerica EZ-Coil 46 is a user-friendly and compact manual 4:1 coil punch and bind machine with electric grooved inserter that is perfect for low-volume business production. It can punch up to 15 sheets and can bind up to 220 sheets of 20lb paper. It is also equipped with 46 Disengageable Pins, oval holes, adjustable punch depth, adjustable edge guide, and an open throat design. This Tamerica EZ-Coil 46 is backd by a 1-year warranty.

Product Details

    Manual Coil Punch w/ Electric Inserter
  • 4 x 5mm Oval Hole Size
  • 15-Sheet Max Punching Capacity
  • 220-Sheet MAx Binding Capacity
  • Open Throat Horizontal Paper Load
  • 46 Fully Disengageable Pins
  • Adjustable Punch Depth
  • Adjustable Edge Guide
  • Includes Crimping Pliers

Product Reviews

Review
Rating:
100%
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Item Specifications

  • Max Punching Capacity: 15 sheets
  • Max Binding Capacity: 220 sheets (25mm)
  • Die Pitch: 4:1 .248 Round Hole
  • Punching Length: 11.7"
  • PunchingFormat: Manual
  • Hole Distance: : 6.35mm (4:1)
  • Hole Spec: 4 x 5.5mm oval
  • Depth Margin:2.5 / 4.5 / 6.5mm
  • Punch Holes: 46
  • Disengageable Pins: 46
  • Power Supply: 110V/60Hz

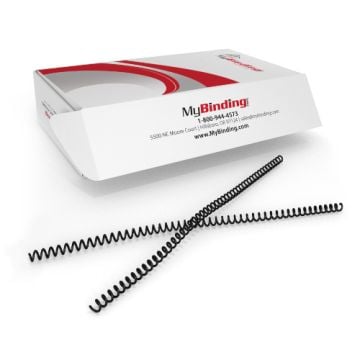

  • Compatible Supplies: Plastic Spiral Binding Coils
  • Machine Dimensions: 17.3" x11" x9"
  • Manufacturer's Warranty: 1 Year Manufacturer's Warranty

Demonstration Video

Tamerica EZ-Coil46 Binding Machine Demo Video

Transcript: Welcome to MyBinding.com. This is the EZ-Coil46 Coil Binding Machine with Electric Inserter from Tamerica. The EZ-Coil46 allows you create your own coil bound booklets quickly and cost effectively. Start by setting the machine for the type and size of booklet you want to make. The adjustable orange edge guide has a marker for A4 paper with 46 holes, but I’m going to be making an 8.5x11” book with 44 holes. On the left side there’s depth guide knob to adjust how far in the paper is punched. Always punch a test page before punching your printed pages. Looks good on both sides, but sometimes you ... Read More
Welcome to MyBinding.com. This is the EZ-Coil46 Coil Binding Machine with Electric Inserter from Tamerica. The EZ-Coil46 allows you create your own coil bound booklets quickly and cost effectively. Start by setting the machine for the type and size of booklet you want to make. The adjustable orange edge guide has a marker for A4 paper with 46 holes, but I’m going to be making an 8.5x11” book with 44 holes. On the left side there’s depth guide knob to adjust how far in the paper is punched. Always punch a test page before punching your printed pages. Looks good on both sides, but sometimes you can get a half punch on the edge. Just pull out the pins above those holes to disengage them and try another test page to make sure. Then punch your pages 15 at a time and if your covers are thick, do them separately. Stack your pages and covers and feed your coil into the end about 5 or 6 holes. Plug the power adapter into the machine and press the red button on top to start the inserter. Gently push the coil against the spinning cylinder until it spins the coil right to the end. Included with the machine are a pair of coil crimpers. Turn the booklet so the coil is facing you. Then take your coil crimpers and make sure the red dot is facing the ceiling. Take the coil coming out of the last hole on the page and crimp through it with one fluid motion. It should cleanly cut off the end and leave a nice notch so it can’t come unwound. And with that you’re done. In just a couple minutes you have a lasting, professional coil booklet. After you’ve made a few, don’t forget to empty the waste tray. The EZ-Coil46 can bind booklets up to 220 pages and each machine comes with a 1 year warranty. For more videos and all your binding needs, go to MyBinding.com

Questions & Answers

Unfortunately we do not have info on how many sheets of 65 lb paper the Tamerica EZ-Coil 46 Manual 4:1 Coil Punch and Bind Machine w/ Electric Inserter would be able to punch, only 20 lb paper (15). Most likely, it would be approx. 3-7 sheets.

Answered by MyBinding.com
3 years ago
The Tamerica EZ-Coil 46 Manual 4:1 Coil Punch and Bind Machine w/ Electric Inserter can bind up to 25mm plastic coil , with the electric coil inserter. Unfortunately, you cannot use the inserter with the Metal Coil. For all metal coil and plastic coil larger than 25 mm, you would be able to use the machine to punch your paper, but you would have to manually insert the coil in your books.

Answered by MyBinding.com
3 years ago
Thank you for your question. Unfortunetely, this machine is not able to punch through chipboard.

Answered by MyBinding
3 years and 6 months ago ago
We currently do not sell a package of mixed sizes and colors. Our sizes and colors are sold in 100pks and 50pks depending on the size. If you would like to see the colors available we do have our sample pack that shows color swatches. https://www.mybinding.com/color-coil-sample-pack-45-colors.html - this link will take you straight to that package!

Answered by MyBinding.com
3 years and 8 months ago ago
Asked by Karen Stoker
Yes, it does.

Answered by Mybinding
3 years and 11 months ago ago
Thank you for your question. Yes, the EZ-Coil machine will work to punch half size books. You will just need to run a test paper to make sure the correct dies are engaged for half size books.

Answered by MyBinding
4 years and 4 months ago ago
Thank you for your question. The manufacturer recommends that you only punch 1 cover at a time, to prevent jamming of the machine.

Answered by MyBinding
4 years and 5 months ago ago
Thank you for your question. Unfortunately, this machine is not available with a UK plug. The CoilMac machines can be special ordered with a UK plug,
It does have a lead time, and special pricing. Please give us a call at 1-800-944-4573, and we can order that for you.

Answered by Mybinding.com
4 years and 7 months ago ago
Thank you for your question. The Tamerica EZ-Coil 46 Manual 4:1 Coil Punch and Bind Machine w/ Electric Inserter would be able to punch a sheet of stock laminated with a 10 mil thick laminate, one at a time.

Answered by MyBinding
5 years and 4 months ago ago
