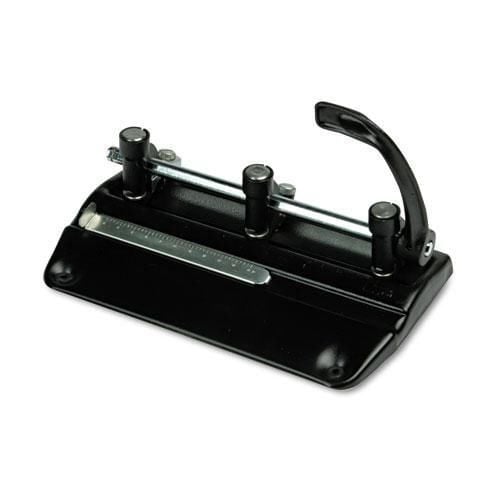

Master 5335B Heavy-Duty 3-Hole Punch by Martin Yale
57.8 NewCondition InStock

Master 5335B Heavy-Duty 3-Hole Punch by Martin Yale

Part #: MY5335B
Brand: Master
Reviews
Rating:
100%
  • Adjustable punch heads for convenient 2 or 3-hole punching
  • Accepts 2 to 7 punch heads for any format desired
  • Large capacity paper chip pan and non-skid feet
  • Made from heavy-gauge steel construction
  • 1 Year Warranty
  • Price Match Guarantee
  • Ships Free Over $75
  • Brand New
In Stock

$57.80

FREE shipping for orders over $75*
SWIPE FOR MORE IMAGES
  • 0
  • 1
video

Product Description

The Master 5335B Heavy-Duty 3-Hole Punch by Martin Yale offers a gel-padded handle for added comfort when drilling up to 32 sheets of 20lb paper. It is featured with 11/32" hole diameter, fixed center, a large-capacity paper chip pan ,and non-skid feet. Plus, its adjustable ruled paper guide ensures exact centering. Part Number is MY5335B.

Product Details

  • Adjustable punch heads for convenient 2 or 3-hole punching
  • Accepts 2 to 7 punch heads for any format desired
  • Large capacity paper chip pan and non-skid feet
  • Made from heavy-gauge steel construction

Item Specifications

  • Hole Diameter: 11/32"
  • Capacity: 32 sheets
  • Color: Black
  • Dimensions: 11 1/8" W x 6 5/8" D x 7" H
  • Part Number: MY5325B
  • Warranty:1 Year Parts and 90 Days Labor

Product Reviews

Reviews
Rating:
100%
Write Your Own Review
You're reviewing:Master 5335B Heavy-Duty 3-Hole Punch by Martin Yale
Your Rating

Demonstration Video

Master 5335B Heavy-Duty 3-Hole Punch

Transcript: This is the Master 5335B Heavy Duty 3 Hole Punch!

Before using, first adjust the edge guide to your paper size. I’ll set mine to 11 inches. There is an arrow that you line it up to.

Okay, now we can insert our pages. Now the product description says it can punch 32 sheets at a time, but a more realistic number is 20 sheets at a time.

With 11/32” holes they are slightly larger than your standard hole punches.

To change the punch heads, first unscrew the back screw. You’ll probably find that you have to open the catch tray to further unscrew the nut on the bottom. This will release t ...
Read More
This is the Master 5335B Heavy Duty 3 Hole Punch!

Before using, first adjust the edge guide to your paper size. I’ll set mine to 11 inches. There is an arrow that you line it up to.

Okay, now we can insert our pages. Now the product description says it can punch 32 sheets at a time, but a more realistic number is 20 sheets at a time.

With 11/32” holes they are slightly larger than your standard hole punches.

To change the punch heads, first unscrew the back screw. You’ll probably find that you have to open the catch tray to further unscrew the nut on the bottom. This will release the screw and the backstop.

Now pop off this little metal ring from the end. And I will say this probably won’t be easy—with this hole punch this entire process can get annoying and take a decent amount of time.

But now wiggle out the lever rod from the punch heads. Since I only unscrewed the end one that is the only one I will be freeing up for this demonstration. It comes right off now.

To put it back on, or a new one on, hook it into the front end of the punch, then proceed to wiggle the rod back in. But you will have to push the top down so it lines up with the crevasse in the rod.

Then screw everything back on, and pop the little metal ring back in place—and you’re done.

Compare to Similar Paper Punches


Model NumberModelHole Diameter (inch)Number of HolesCapacity (sheets)Battery OperatedElectrical (volt)
5335B 11/32" 2 to 7 32 No Manual
EP312 9/32" 3 10 Optional 115
EP323 9/32" 2 or 3 12 Optional 115
DP20 9/32" 2 or 3 20 No Manual
MP3 9/32" 3 20 No Manual
MP40 9/32" 3 30 No Manual
MP50 9/32" 3 40 No Manual
3020B 9/32" 2 or 3 30 No Manual
325B 9/32" 2 to 7 24 No Manual
5325B 9/32" 2 to 7 32 No Manual
5340B 13/32" 2 to 7 32 No Manual
525M 11/32" 2 to 7 40 No Manual
1325B 9/32" 2 to 7 40 No Manual
1340PB 12/32" 2 to 7 40 No Manual
MP80 9/32" 3 80 No Manual
EP210 1/4" 2 12 Optional Manual
MP250 9/32" 2 40 No Manual
3275B 9/32" 2 40 No Manual
