Product Description

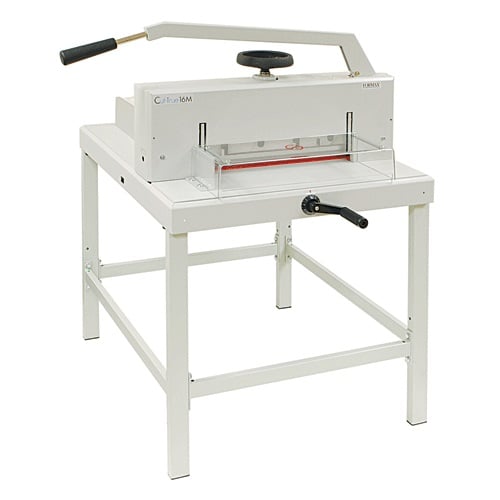

The Cut-True 16M Manual Paper Cutter delivers precise, professional cutting for sheets up to 18.7" wide and stacks up to 3.15" thick, featuring a hardened-steel guillotine blade and lever-activated arm for smooth operation. Its LED laser cut line, spindle-guided back gauge, and calibrated scales ensure accurate adjustments and exact alignment. Designed with safety in mind, it includes front and rear transparent covers, a blade lock, external blade depth adjustment, easy front-access blade changes, and a wooden paper push for safe positioning. A durable metal stand provides a comfortable working height with included feet for tabletop use. Ideal for brochures, invitations, and more, this cutter is a strong solution for print shops and in-plant finishing plus, replacement blades and cutting sticks are available as accessories for extended use and peak cutting performance.
Product Details
- High-Quality Hardened Steel Blade: Delivers clean, consistent cuts.

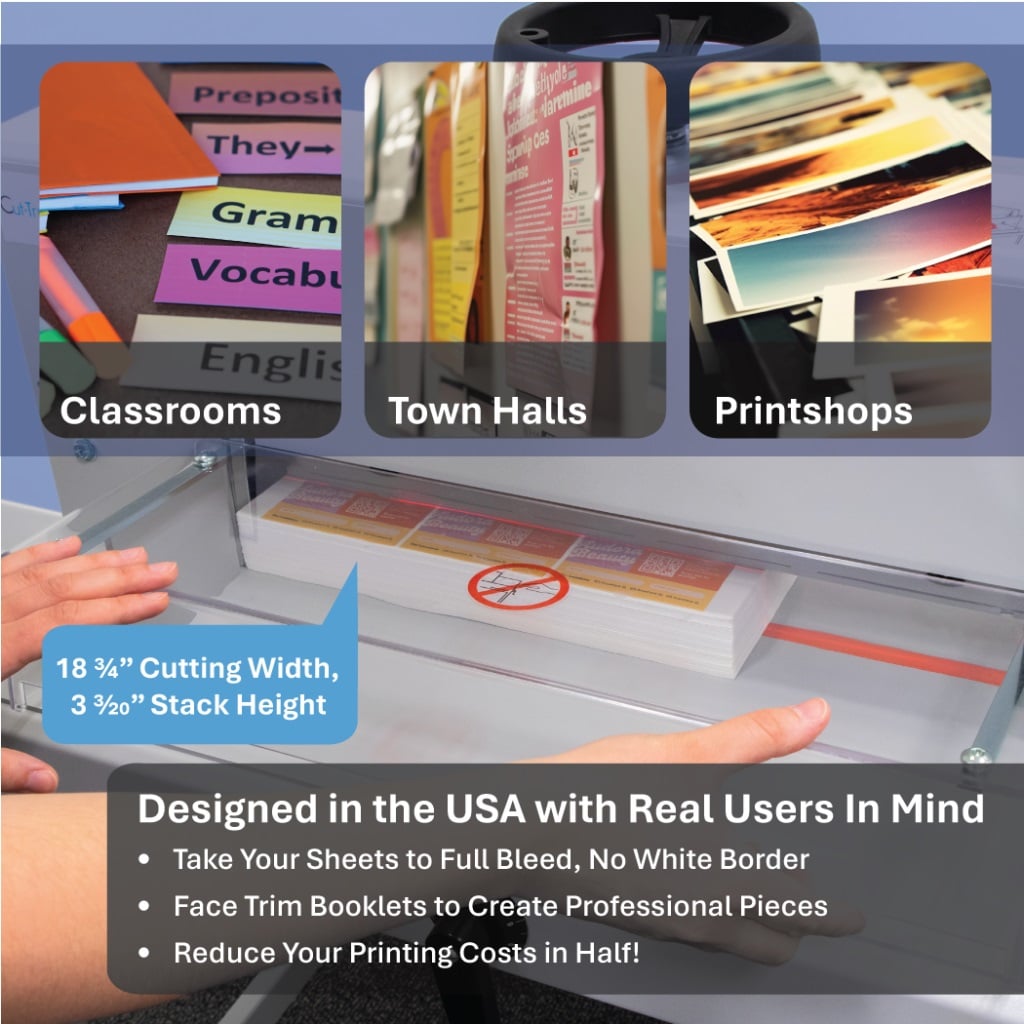

- Large Cutting Capacity: Cuts stacks up to 3.15” tall and 18.7” wide.

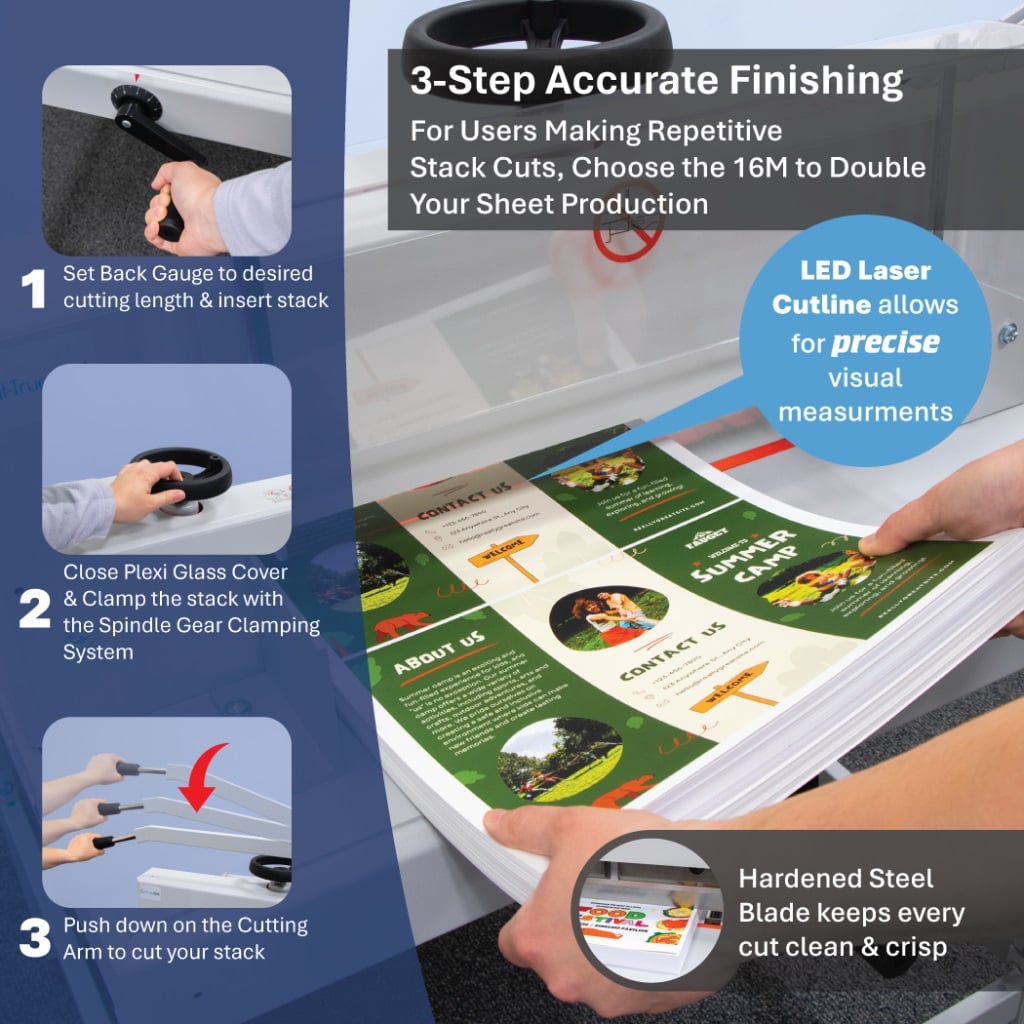

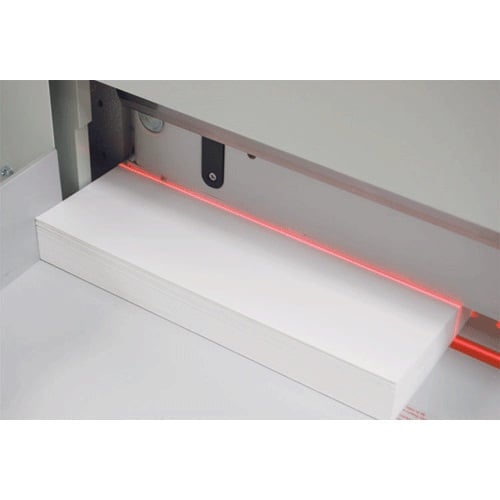

- LED Laser Cut Line: Ensures precise alignment before cutting.

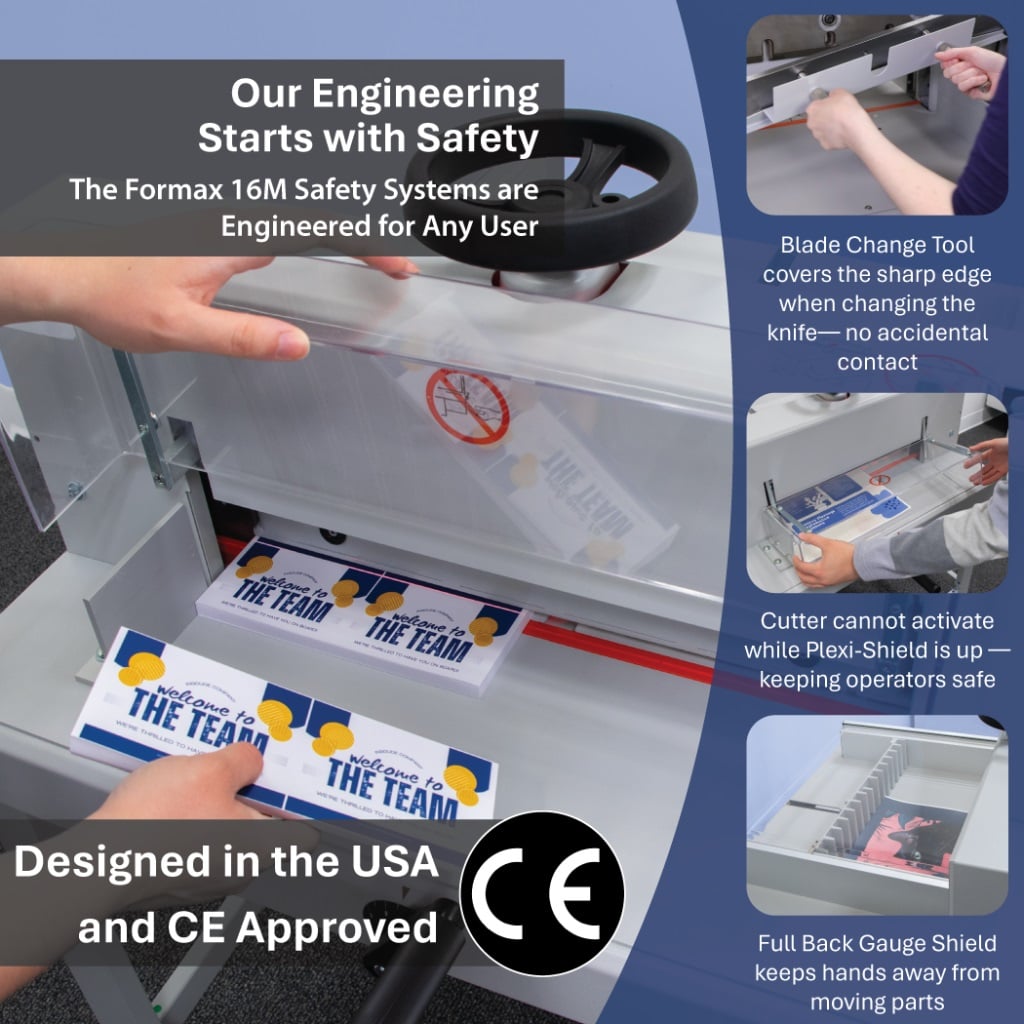

- Front & Rear Safety Covers: Provides added operator protection.
- Manual Lever Cutting Arm: Smooth, controlled cutting action.
- Geared Clamping System: Secures paper stacks firmly in place.
- Spindle-Guided Back Gauge: Allows accurate, repeatable positioning.
- Calibrated Scale (Inches & Metric): Supports fine adjustments.
- Clearly Marked Common Paper Sizes: Speeds up setup.
- Solid Steel Blade Carrier: Improves stability and durability.
- Wooden Paper Push: Helps align stacks safely.
- All-Metal Stand & Tabletop Feet Included: Use as a floor model or benchtop cutter.
- External Blade Depth Adjustment: No disassembly required.
- Front Blade Access: Simplifies blade changes.
- Blade Change Safety Tool Included: Enhances operator safety.
Specifications
- Cutting Action: Manual lever handle
- Maximum Cutting Width: 18.7” (475mm)
- Maximum Paper Stack Height: 3.15” (80mm)
- Length Behind Blade: 19.37” (492mm)
- Length in Front of Blade: 8.25” (210mm)
- Narrow Cut: .99” (25mm)
- Table Size: 30.3” W x 31.5” D (770 x 800mm)
- LED Laser: Cut Line Yes
- Clamp Style: Spindle-guided clamping wheel
- Back Gauge Adjustment: Manual crank
- Back Gauge Reading: Scale, in inches and metric
- Blade Change Safety Tool: Included
- Dimensions: 46.25” H x 39” W x 35” D (1175 x 991 x 889mm)
- Weight: 199 lbs. (90kg)
- Safety Certifications: CE approved
- Optional Supplies: 16M-10 Replacement Blade, 16M-20 Replacement Cutting Sticks
- Manufacturer's Warranty:
- 90 day limited Manufacturer's Warranty on parts.
- Excluding wearables and labor.
Replacement Blades and Accessories
| Product Name | Item Number |
| Formax Cut-True 16M Replacement Blade | FDCT16M10 |

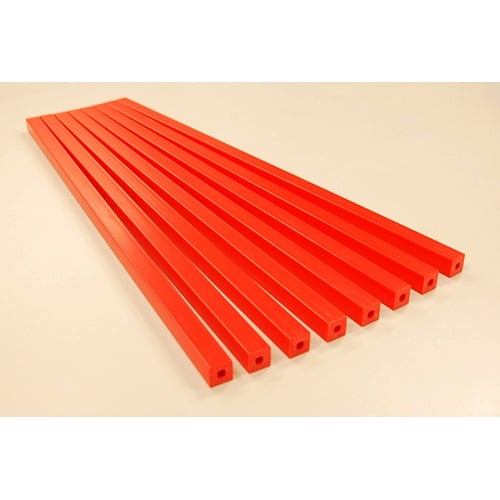

| Formax 16M Cutting Sticks - 8pk | FDCT16M20 |
Compare to Similar Formax Guillotine Paper Cutters
| Model Name | Cut-True 31HE | Cut-True 29H | Cut-True 29A | Cut-True 27S | Cut-True 22S | Cut-True 16M | Cut-True 15M | Cut-True 13M |
|---|---|---|---|---|---|---|---|---|
| Model |  |
 |
 |
 |
 |
 |
 |
 |
| Cutting Action | Dual-button electric | Dual-button electric | Dual-button electric | Dual-button electric | Dual-button electric | Manual lever handle | Manual lever handle | Manual lever handle |
| Maximum Cutting Width | 28.7” | 20.5" | 20.5" | 18.9" | 16.9" | 18.7" | 16.9" | 14.5" |
| Cutting Capacity | 1000 Sheets | 700 Sheets | 700 Sheets | 700 Sheets | 440 Sheets | 700 Sheets | 600 Sheets | 370 Sheets |
| Maximum Paper Stack Height | 3.94” | 3.15" | 3.15" | 3.15" | 1.75" | 3.15" | 2.15" | .75" |
| Cutting Length Behind Blade | 26.5” | 20.5" | 20.5" | N/A | N/A | N/A | N/A | 10.5" |
| Length in Front of Blade | 25” | 18.25" | 18.25" | N/A | N/A | N/A | N/A | 1.25" |
| Programmable Jobs | Up to 100 programs with up to 100 steps each | Up to 100 programs with up to 100 steps each | Up to 100 programs with up to 100 steps each | N/A | N/A | N/A | N/A | N/A |
| Minimum Cut w/False Clamp | 2.36” | 2.36” | 2.36” | N/A | N/A | N/A | N/A | N/A |
| Minimum Cut w/o False Clamp | 1.18” | 1.18” | .98" | N/A | N/A | N/A | N/A | N/A |
| Narrow Cut | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 1.25" |
| LED Laser Cut Line | N/A | N/A | N/A | Yes | Yes | Yes | Yes | Yes |
| Clamp Style | Automatic, hydraulic | Automatic, hydraulic | Automatic, electronically adjustablee | Automatic | Spindle-guided clamping wheel | Spindle-guided clamping wheel | Spindle-guided clamping wheel | Lever |
| Back Gauge Adjustment | Fully programmable using touchscreen, accurate to 0.1mm | Fully programmable using touchscreen, accurate to 0.1mm | Fully programmable using touchscreen, accurate to 0.1mm | Manual crank | Manual crank | Manual crank | Manual crank | Thumbscrew |
| Back Gauge Reading | N/A | N/A | N/A | Digital readout, in both inches and metric | Digital readout, in both inches and metric | Scale, in both inches and metric | Scale, in both inches and metric | Scale, in both inches and metric |
| Dimensions | 73” W x 69” D x 56.9” H | 49.2" H x 36.75" W x 53.2" D | 49.2" H x 36.75" W x 53.2" D | 51" H x 36" W x 39" D | 46.75" H x 24.75" W x 33" D | 46.25" H x 39" W x 35" D | 42.5" H x 26.8" W x 29.1" D | 12.75" H x 18.75" W x 17.5" D |
| Weight | 1,323lbs. | 1,014 lbs. | 683 lbs. | 550 lbs. | 198.6 lbs. | 199 lbs. | 133 lbs. | 38 lbs. |
| Safety Certifications | N/A | N/A | CE approved, UL pending | CE approved, UL pending | CE approved, UL pending | CE approved | CE approved | CE approved |
| Warranty | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. |
Video
Formax Cut True 15M & 16M Cutter Demo
