Product Description

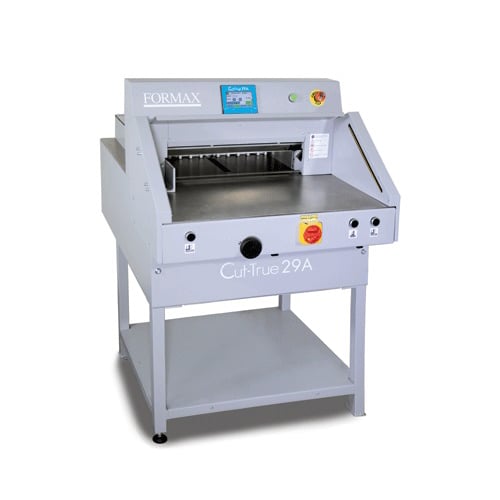

The Formax Cut-True 29A Electric Guillotine Paper Cutter provides highly accurate cutting for stacks up to 3.15" high and 20.5" wide, featuring a touchscreen control panel, automatically adjusting back gauge, job memory for up to 100 programs, and a bright LED cutting line for precise alignment. Its electronically controlled two-hand operation and hardened steel blade deliver crisp, consistent results, while the infrared safety curtain, blade lock, key lock, transparent guards, automatic blade return, and included wooden paper push ensure operator protection. The anti-friction work surface with optional wide side tables makes handling large sheets easier, and the removable false clamp prevents marking delicate or bound materials. Ideal for high-volume finishing in print shops and in-plant operations, the Cut-True 29A combines power, productivity, and safety plus, replacement blades and cutting sticks are available as accessories to maintain peak cutting performance.
Product Details
- Hardened Steel Blade: Designed for accurate cuts and long life
- Electronically-Controlled: Paper clamp pressure and blade carrier
- False Clamp: Minimizes marking of sensitive paper stock, easily stores within the machine when not in use

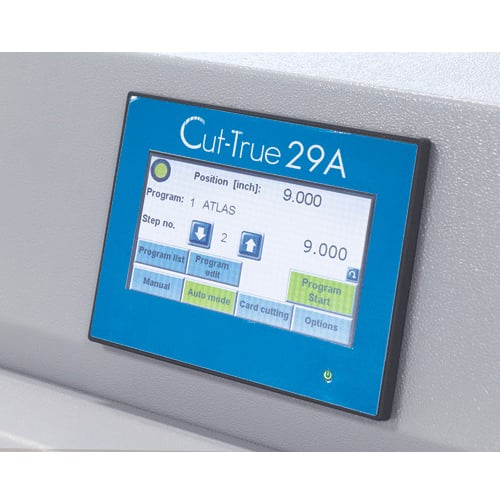

- Touchscreen Control Panel: Easily set, adjust and program jobs

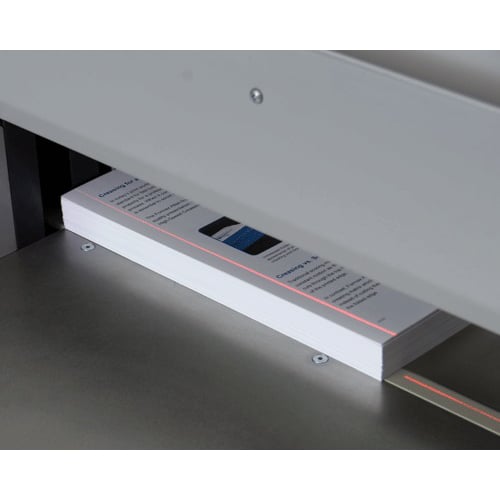

- LED Cutting Line: Bright red LED line indicates exactly where the blade will cut, allowing for precise adjustments prior to cutting
- Solid Steel Blade Carrier
- Fine-Tuning Knob: Allows users to precisely adjust the back gauge position
- Low-Friction Work Table: Makes it easy for operators to move and position large paper stacks
- Convenient Storage Shelf
- Programmable Jobs: Up to 100 jobs/100 steps
- Cutting Capacity: Accurately cuts through paper stacks up to 3.15" high, up to 20.5" wide
- Automatic Blade Return from Any Position

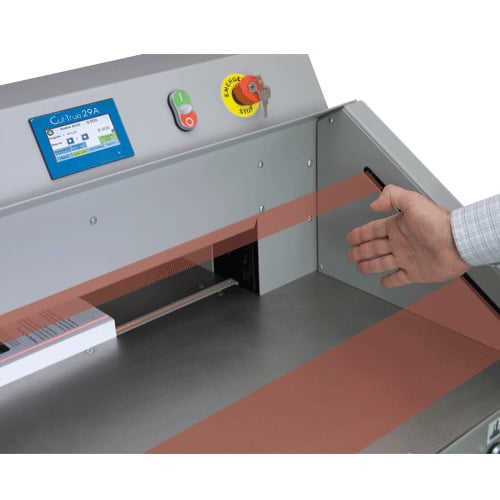

- Infrared Safety Curtain: Light beam curtain shuts down operation if the plane is interrupted
- Two-Hand Operation: Keeps hands out of the cutting area, electronically controlled for added safety
- Easy Blade Change from Front of Cutter: Blade change safety tool included
- Wooden Paper Push Tool: Helps to quickly and safely align the paper stack
- Main Switch and Safety Key Lock: Keeps cutter secure from unauthorized operators
- Transparent Rear Safety Guard

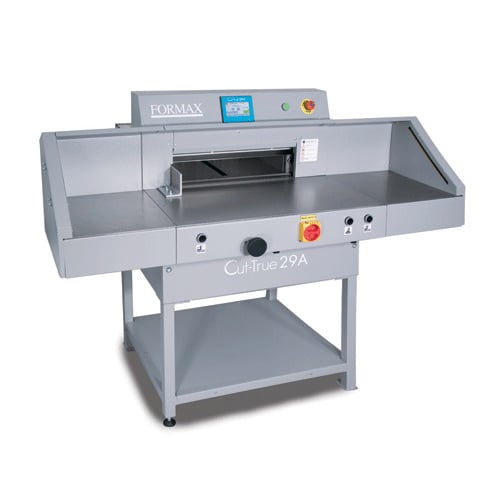

- Options: Wide Side Tables (Pair) - Provide additional space to maneuver larger paper stock
- Supplies: (29-10) Replacement Blade and (29-20) Replacement Cutting Sticks, pkg of 8
Specifications
- Cutting Action: Dual-button electric
- Cut Capacity: 700 Sheets
- Maximum Cutting Width: 20.5" (520mm)
- Maximum Paper Stack Height: 3.15" (80mm)
- Programmable Jobs: Up to 100 programs with up to 100 steps each
- Touchscreen Features: Program jobs, alternate between inches/mm, paper eject function, programming via cutting, business card cutting mode
- Length Behind Blade: 20.5" (520mm)
- Length in Front of Blade: 18.25" (464mm)
- Minimum Cut w/False Clamp: 1.6" (40mm)
- Minimum Cut w/o False Clamp: .98" (25mm)
- Table Size: 30.75" W x 15.75" D ( 781x 400mm) or 56" W x 15.75" D (1422 x 400mm) w/optional wide side tables
- Clamp Style: Automatic, electronically adjustable
- Back Gauge Adjustment: Fully programmable using touchscreen, accurate to 0.1mm
- Blade Change Safety Tool: Included
- Dimensions: 49.2" H x 36.75" W x 53.2" D (1250mm H x 934mm W x 1352mm D)
- Dimensions w/Optional side tables: 49.2" H x 61.5" W x 53.2" D (1250mm H x 1563mm W x 1352mm D)
- Weight: 683 lbs. (310kg)
- Power Supply: 230V, 50Hz, 20A dedicated line NEMA Plug: 6-20
- Manufacturer's Warranty:
- 90 day limited Manufacturer's Warranty on parts.
- Excluding wearables and labor.
Replacement Blades and Accessories
| Product Name | Item Number |
| Replacement Blade for Formax Cut-True 29A and 29H Cutters | FDCT29-10 |

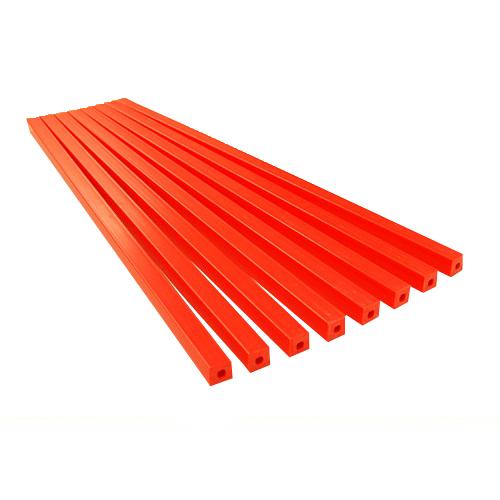

| Cutting Sticks for Formax Cut-True 29A and 29H Cutters - 12pk | FDCT29-20 |
| Side Tables for Formax Cut-True 29A and 29H Cutters - 1 Pair | STFCT29-30 |
Compare to Similar Formax Guillotine Paper Cutters
| Model Name | Cut-True 31HE | Cut-True 29H | Cut-True 29A | Cut-True 27S | Cut-True 22S | Cut-True 16M | Cut-True 15M | Cut-True 13M |
|---|---|---|---|---|---|---|---|---|
| Model |  |
 |
 |
 |
 |
 |
 |
 |
| Cutting Action | Dual-button electric | Dual-button electric | Dual-button electric | Dual-button electric | Dual-button electric | Manual lever handle | Manual lever handle | Manual lever handle |
| Maximum Cutting Width | 28.7” | 20.5" | 20.5" | 18.9" | 16.9" | 18.7" | 16.9" | 14.5" |
| Cutting Capacity | 1000 Sheets | 700 Sheets | 700 Sheets | 700 Sheets | 440 Sheets | 700 Sheets | 600 Sheets | 370 Sheets |
| Maximum Paper Stack Height | 3.94” | 3.15" | 3.15" | 3.15" | 1.75" | 3.15" | 2.15" | .75" |
| Cutting Length Behind Blade | 26.5” | 20.5" | 20.5" | N/A | N/A | N/A | N/A | 10.5" |
| Length in Front of Blade | 25” | 18.25" | 18.25" | N/A | N/A | N/A | N/A | 1.25" |
| Programmable Jobs | Up to 100 programs with up to 100 steps each | Up to 100 programs with up to 100 steps each | Up to 100 programs with up to 100 steps each | N/A | N/A | N/A | N/A | N/A |
| Minimum Cut w/False Clamp | 2.36” | 2.36” | 2.36” | N/A | N/A | N/A | N/A | N/A |
| Minimum Cut w/o False Clamp | 1.18” | 1.18” | .98" | N/A | N/A | N/A | N/A | N/A |
| Narrow Cut | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 1.25" |
| LED Laser Cut Line | N/A | N/A | N/A | Yes | Yes | Yes | Yes | Yes |
| Clamp Style | Automatic, hydraulic | Automatic, hydraulic | Automatic, electronically adjustablee | Automatic | Spindle-guided clamping wheel | Spindle-guided clamping wheel | Spindle-guided clamping wheel | Lever |
| Back Gauge Adjustment | Fully programmable using touchscreen, accurate to 0.1mm | Fully programmable using touchscreen, accurate to 0.1mm | Fully programmable using touchscreen, accurate to 0.1mm | Manual crank | Manual crank | Manual crank | Manual crank | Thumbscrew |
| Back Gauge Reading | N/A | N/A | N/A | Digital readout, in both inches and metric | Digital readout, in both inches and metric | Scale, in both inches and metric | Scale, in both inches and metric | Scale, in both inches and metric |
| Dimensions | 73” W x 69” D x 56.9” H | 49.2" H x 36.75" W x 53.2" D | 49.2" H x 36.75" W x 53.2" D | 51" H x 36" W x 39" D | 46.75" H x 24.75" W x 33" D | 46.25" H x 39" W x 35" D | 42.5" H x 26.8" W x 29.1" D | 12.75" H x 18.75" W x 17.5" D |
| Weight | 1,323lbs. | 1,014 lbs. | 683 lbs. | 550 lbs. | 198.6 lbs. | 199 lbs. | 133 lbs. | 38 lbs. |
| Safety Certifications | N/A | N/A | CE approved, UL pending | CE approved, UL pending | CE approved, UL pending | CE approved | CE approved | CE approved |
| Warranty | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. | 90 day limited warranty on parts. Excluding wearables and labor. |
