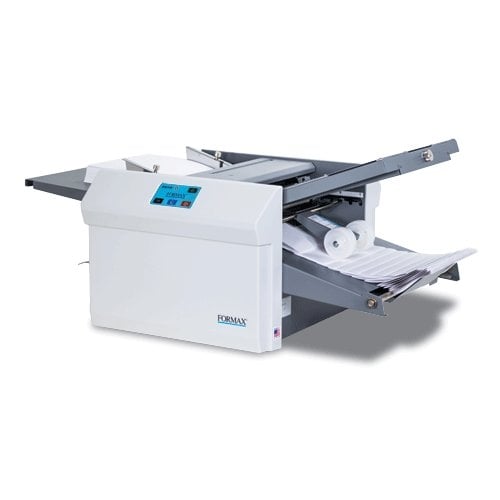

Formax FD-346 Tabletop Paper Folder and Accessories

Name: Formax FD-346 Tabletop Paper Folder and Accessories
Brand: Formax
SKU: FD-346-GRP
Availability: InStock

$4,046.00

Need Shopping Advice?
Call - (800)944-4573

Folds up to 15,500 sheets per hour (11" Z-fold) onto a telescoping conveyor
Takes sheets from 3.5" x 5" up to 12.25" x 18", pre-marked for 11", 14" and 17"
6 pre-marked folds (C, V, Z, gate, fold out, double parallel) plus custom folds
Drop-in feed holds 500 sheets, with a color touchscreen and optional 4-sheet feeder

SKU

PRODUCT NAME

PRICE

QUANTITY

FD-346

Formax FD-346 Tabletop Paper Folder with Touch Screen

$4,046.00

04FXFD30020

Formax FD 300-20 Multi-Sheet Feeder for FD 346 and FD 386

$561.00

Product Description

Formax introduces the FD 346 Paper Folder, which replaces the discontinued FD 342, featuring a brand-new color touchscreen for convenience and increased productivity. The touchscreen features internationally-recognized symbols in place of text, making it quick and easy for anyone to use with little to no training. The FD 346 is a fast and dependable solution for a variety of applications, folding up to 15,500 sheets per hour, in sizes up to 12" x 18". Simply load up to 500 sheets in the hopper, select the fold, and press start. Once the job is finished, the patented telescoping conveyor system holds up to 500 finished pieces. For easy batch processing, users can select the Formax AutoBatch program. Simply input a specific number of sets, sheets per set and delay between sets, and the FD 346 will take care of the rest. Six popular folds are clearly marked on the fold plates, for quick and easy set-up and operation with fine-tuning knobs for precise adjustments. The optional multi-sheet feeder allows users to fold up to 4 stapled or unstapled sheets at once through a dedicated feed system. Forget the days of hand-folding documents, and let the new Formax FD 346 Paper Folder do all the hard work, while you get more important things done.

Product Details

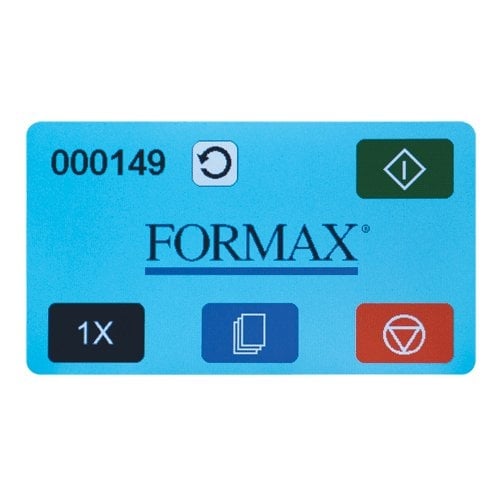

Color Touchscreen Control Panel: Graphics-based and designed for easy, walk-up use.

Fast Processing: Large jobs are processed quickly at speeds of up to 15,500 pieces per hour.

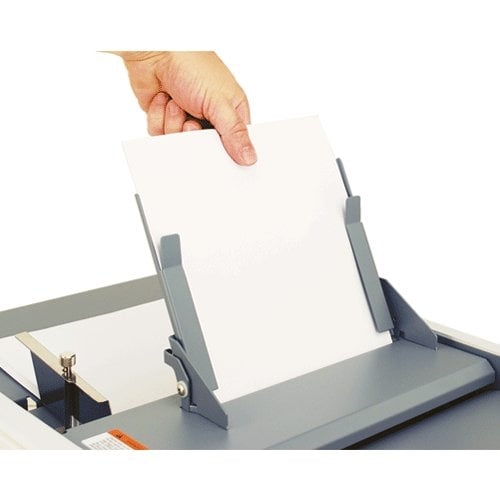

Drop-In Feed System: Three roller drop-in feed system produces dependable feeding of forms with no fanning required.

Adjustable Stacker Wheels: Stacker wheels can be manually adjusted to neatly and sequentially stack different paper sizes and fold types.

Telescoping Conveyor System: Conveyor can be set between 14" (356mm) and 36" (915mm) in length and holds up to 500 folded pieces.

6-Digit Resettable & 8-Digit Life Counters: Provide maximum audit control.

AutoBatch Setting: Programmable to process pre-set number of sheets and stops.

Pre-Marked for Six Standard Folds in Common Paper Sizes: Fold plates are clearly marked for 6 popular fold types in letter, legal and ledger paper sizes.

Custom Folds: Fold plates can be easily adjusted for custom fold setup.

Optional Dedicated Multi-Sheet Feeder: Allows for up to 4 stapled or unstapled sheets to be folded at the same time.

Fine-Tune Adjustment: Precisely sets fold stops for crisp, accurate folds.

Cross-Folding: A guide is included for two pass operation.

Easy-Off Feed Wheel Shaft: Feed wheels can be changed without removing side covers.

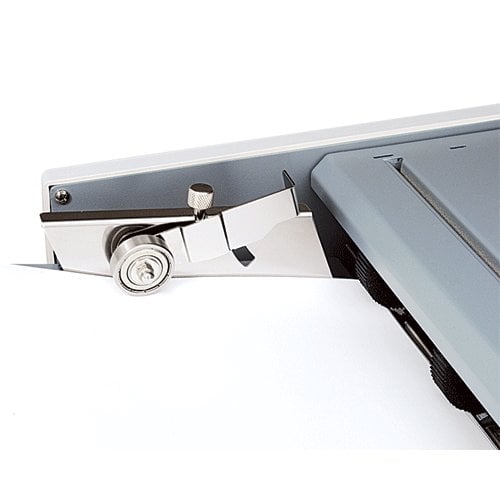

Quick Release Fold Stops: Fold settings are quickly and easily adjusted with the quick release system.

Removable Roller Cover: Easily removed for improved access to fold rollers and exit area.

Self Centering Side Guides: Guides move in and out together to help ensure documents are fed squarely.

Paper Out & Cover Open Sensors: If the paper is out or the cover is open the folder will not run.

Fault Detection: Folder automatically stops when a fault is detected, an LED lights up on the control panel to indicate the possible fault location.

Specifications

Speed: Up to 15,500 sheets per hour – based on 11" (279mm) Z-Fold, 6 Settings

Hopper Capacity: Up to 500 sheets 20# (75gsm)

Pre-Marked Folds: C, V, Z, Gate, Fold Out and Double Parallel

Pre-Marked: FD Model: 11", 14", 17"

Paper Sizes: FE Model: A5, A4, A3, B6, B5, B4

Paper Size:

Min: 3.5" W x 5" L (88.9 W x 127 L mm)
Max: 12.25" W x 18" L (311 W x 457 L mm)

Dimensions:

Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm)
Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)

Weight: 67 lbs (30kg)

Power:

FD Model: 110VAC 50/60 Hz
E Model: 220VAC 50/60 Hz

Option: FD 300-20 - Multi-Sheet Feeder

Safety Certifications: UL, CUL, and CE approved

Compare to Similar Paper Folders

Model Name

Model

Speed

Hopper Capacity

Pre-Set Folds

Pre-Marked

Paper Sizes

Paper Size

Dimensions

Weight

Power

Option

Safety Certifications

Warranty
FD-346

Up to 15,500 sheets per hour – based on 11" (279mm) Z-Fold, 6 Settings

Up to 500 sheets 20# (75gsm)

C, V, Z, Gate, Fold Out and Double Parallel

FD Model: 11", 14", 17"

FE Model: A5, A4, A3, B6, B5, B4

Min: 3.5" W x 5" L (88.9 W x 127 L mm), Max: 12.25" W x 18" L (311 W x 457 L mm)

Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm), Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)

67 lbs (30kg)

FD Model: 110VAC 50/60 Hz

FD 300-20 - Multi-Sheet Feeder

UL, CUL, and CE approved

90 Days Warranty Parts
FD 386

Up to 17,000 sheets per hour – based on 11" (279mm) Z-Fold

Up to 500 sheets 20# (75 gsm)

Pre-programmed for C,V,Z, Gate, Fold Out and Double Parallel

N/A

11", 14", 17", A5, A4, A3, B6, B5, B4

Min: 3.5" W x 5" L (88.9 W x 127 L mm), Max: 12.25" W x 18" L (311 W x 457 L mm)

Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm), Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)

73 lbs (33kg)

110-240VAC 50/60 Hz

FD 300-20 - Multi-Sheet Feeder

UL & CE applied for

90 Days Warranty Parts
FD 38Xi

Up to 17,000 sheets per hour – based on 11" (279mm) Z-Fold

Up to 500 sheets 20# (75 gsm)

Pre-programmed for C,V,Z, Gate, Fold Out and Double Parallel

N/A

11", 14", 17", A5, A4, A3, B6, B5, B4

Min: 3.5" W x 5" L (88.9 W x 127 L mm), Max: 12.25" W x 18" L (311 W x 457 L mm)

Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm), Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)

73 lbs (33kg)

110-240VAC 50/60 Hz

N/A

UL & CE applied for

90-Day Warranty on Parts

Video

Formax FD 346 Desktop Touchscreen Document Folder Demo Video

Transcript :

FORMAX presents the FD 346 Desktop Touchscreen Document Folder is accurate, dependable and easy to us, ideally for small size to mid-size businesses, schools and churches looking for quick and easy set up for operation. The FD 346 is one of the first manual set folders controlled by an intuitive touch screen display. The FD 346 folds documents up to speed of 15 500 sheets per hour and can process sheets up to 12 by 18 inches. Its drop feed system has the capacity of up to five hundred sheets with three feed tires for accurate, consistent feeding. The unique patented and telescoping conveyor can be extended out to hold up to 500 documents. The FD 346 features easy set fold plates with pre-marked fold settings, the FORMAT auto batch mode a six digit resettable count and a simple to use touch screen interface. Setting up the FD 346 is simple and it takes just minutes. First lift the infield tray extension until it latches onto place then install the telescoping conveyor tray. Next install the upper fold plate, match the pins on the inside of the folder with the notches on each side of the fold plate. Slide the fold plate in until it locks into place. Install the lower fold plate with the same process. The fold plates are clearly marked with six common fold setting for eleven inch, fourteen inch and seventeen inch documents. In addition they can easily be adjusted to create custom folds, to adjust the fold setting simply squeeze the fold top clamp, slide the top to the desired position and release. The fine tune nobs at the end of each fold plate can be used for precise adjustment to the fold stop positon. To load paper lift the infield tray lever and load the paper stack under the feed tires, switch the power on and press the one time button to test one sheet for inspection, adjust the fold plates if needed, with the fold set press the green start icon to start, to stop press the red stop icon. To reset the counter at the end of the run press the reset icon next to the counter display. The auto batch program is used to process a set of documents with a delay between each set for easy handling, to access this mode press the blue icon located at the center bottom of the screen. In the auto batch screen you can select the number of sets, the number of sheets in each set and the delay in each set, with the settings entered press the green start icon to begin processing. To exit auto batch simply press the blue home icon. The FD 346 also includes a cross fold guide for feeding folded documents through the folder a second time for additional folding. Fold the sheets in half then place the folded documents back into the feeder, attach the cross fold guide, select the next fold and press start. In addition an optional multi sheet feeder is available for folding up to four stapled or unstapled sheets at the same time. The FORMAX FD346 is proudly made in the USA and is built to last, constructed with a heavy duty steel frame and molded high impact side covers. The FD 346 offers an unmatched ease of operations with its intuitive touch screen interface making it ideal for small to mid-size businesses, churches and schools
