Product Description

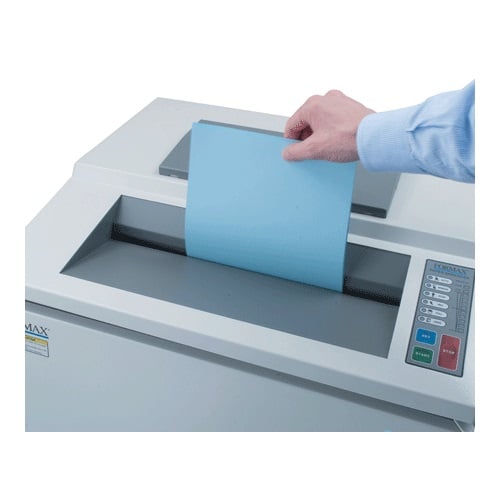

The Formax FD 8502AF AutoFeed Office Shredder boosts productivity with a dedicated AutoFeed hopper that holds up to 175 sheets (up to 11" x 17"), allowing users to load, press start, and walk away—no more hand-feeding stacks. The standard hand-feed slot accepts 22–24 sheets at a time with a wide 16" throat for everyday shredding tasks. Built for heavy office use, it features a user-friendly LED control panel with load indicator, heat-treated steel cutting blades, a rugged steel cabinet, a lifetime-guaranteed waste bin, and a powerful AC geared motor for long-lasting performance and secure document destruction. To reduce energy consumption, ECO Mode automatically enters standby when inactive for 5 minutes.
Product Details
- AutoFeed Hopper: Feeds stacks automatically for hands-free shredding.
- Traditional Hand-Feed Slot: Allows manual feeding when needed.
- Auto Start/Stop/Reverse: Enables smooth operation and automatic jam clearing.
- LED Control Panel with Load Indicator: Monitors performance and shred load in real time.
- Heat-Treated Steel Cutting Blades: Durable and reliable for long-term use.
- High-Quality Geared Motor: Provides consistent, heavy-duty power.
- All-Metal Cabinet with Casters: Strong build with easy mobility.
- Door Safety Sensor: Stops shredding when the door is open.
- Full Bin Sensor: Alerts when the waste bin needs emptying.
- Staple & Paper Clip Safe: Shreds documents without removing small metal items.
- Auto Cleaning Function: Maintains cutting performance.
- Oil Indicator: Reminds you when lubrication is needed.
- Thermal Overload Protection: Prevents overheating.
- Safety Circuit Breakers: Adds protection for safe, reliable operation.
Specifications
- Cutting Style: Cross Cut
- Shred Size: 5/32” x 1-1/5” (4 x 30mm)
- AutoFeed Capacity: Up to 175 sheets*
- Hand-Feed Capacity: 22 to 24 sheets*
- Speed: 35 fpm (10m per minute)
- Dimensions: 24” W x 20” D x 35” H (61 x 51 x 89cm)
- Bin Capacity: 26 gal (98l)
- Weight: 242 lbs (110kg)
- Security Level: P-4
- Power Supply: 110V, 50/60Hz
- Manufacturer's Warranty:
- Lifetime limited Manufacturer's Warranty on cutting heads.
- 1-year Manufacturer's Warranty on all other parts.
- Spiral / Binding101 Part Number: 04FXFD8502AF
Compare to Similar Shredders
| Model Name | Formax FD 8502AF | Formax FD 8402CC | Formax FD 8402SC | Formax FD 8502CC | Formax FD 8502SC | Formax FD 8602CC | Formax FD 8602SC | Formax FD 8652CC | Formax FD 8704CC |
|---|---|---|---|---|---|---|---|---|---|
| Model |  |
 |
|
 |
|
 |
|
 |
 |
| Part Number | FD-8502AF | FD-8402CC | FD-8402SC | FD-8502CC | FD-8502SC | FD-8602CC | FD-8602SC | FD-8652CC | FD-8704CC |
| Cutting Type | Cross Cut | Cross Cut | Strip Cut | Cross Cut | Strip Cut | Cross Cut | Strip Cut | Cross Cut | Cross Cut |
| Shred Size | 5/32" x 1-1/5" | 5/32" x 1-1/5" | 1/4" | 5/32" x 1-1/5" | 5/32" | 5/32" x 1-1/5" | 1/4" | 5/32" x 1 19/32" | 5/32" x 1-5/8" |
| Sheet Capacity | Up to 175 sheets (AF) 22 to 24 sheets (HF) |
24 to 26 sheets |
30 to 32 sheets |
23 to 25 sheets |
20 to 22 sheets |
35 to 37 sheets |
29 to 31 sheets |
Up to 32 sheets |
40 to 45 sheets |
| Speed | 35 fpm | 33 fpm | 30 fpm | 35 fpm | 33 fpm | 22 fpm | 30 fpm | Up to 33 fpm | 12 fpm |
| Feed Opening | 12.2" | 12.2" | 16" | 16" | 16" | 16" | 9.4" | ||
| Dimensions (W x x H): | 24" x 20" x 35" | 20" x 20" x 34" | 20" x 20" x 34" | 24" x 20" x 35" | 24" x 20" x 35" | 24" x 20" x 35" | 24" x 20" x 35" | 28" x 24" x 43" | 20" x 20" x 36" |
| Bin Capacity | 26 gal | 28 gal | 28 gal | 33 gal | 33 gal | 33 gal | 33 gal | 53 gal | 28 gal |
| Security Level | Level 3 (HIPAA Compliant) | Level 3 (HIPAA Compliant) | Level 2 | Level 3 (HIPAA Compliant) | Level 2 | Level 3 (HIPAA Compliant) | Level 2 | Level 3 (HIPAA Compliant) | Level 3 (HIPAA Compliant) |
| Power Supply | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110-120V, 50/60 Hz |
Video
Formax 8502AF AutoFeed Office Shredder Demo Video
Transcript :
