Product Description

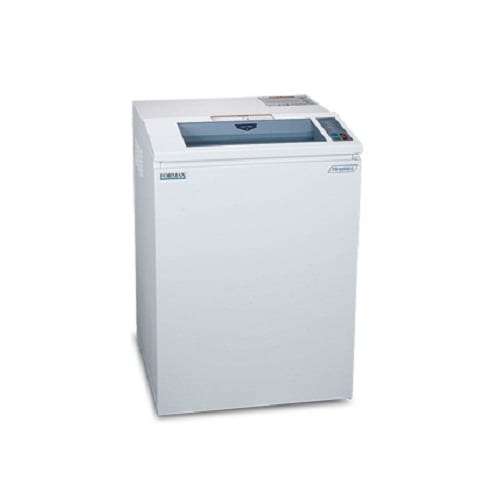

This Formax OnSite FD 8502CC Cross-Cut Paper Shredder is built to the highest standards for operator convenience, safety and reliability. This shredder has an easy-to-use LED control panel which puts commercial-grade power right at your fingertips. It can shred 23-25 sheets at a time, up to 35 feet per minute, with a shred size of 5/32" x 1 1/5". The Formax OnSite FD 8502CC features a heat-treated steel blades, a steel cabinet, lifetime guaranteed waste bin, and a powerful AC geared-motor that ensure years of reliable performance and information security in your office. Plus, it has an ECO Mode that saves energy by automatically switching into standby mode after 5 minutes of inactivity. Finally, this Formax OnSite FD 8502CC Cross-Cut Paper Shredder has an optional EvenFlow Automatic Oiling System that periodically lubricates the cutting blades based on motor run time, keeping the shredder in peak operating condition.
Product Details
- Auto Start/Auto Stop: Optical sensor detects paper and starts operation automatically

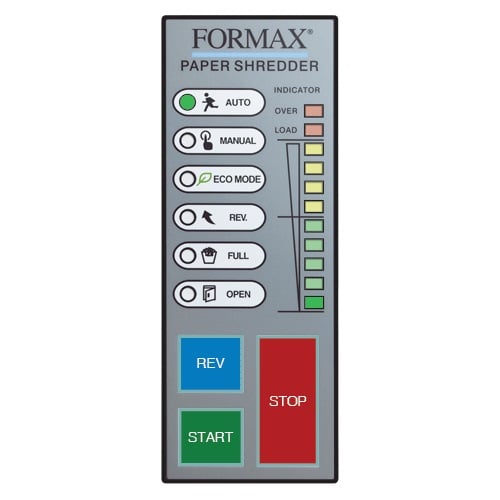

- LED Control Panel with Load Indicator
- Door Safety Sensor: Motor stops automatically if cabinet door is opened
- Auto Reverse: In case of paper jam, built-in controls switch motor into reverse to clear jam
- Heat-treated steel cutters are specially ground for longevity and require minimal oil
- High Quality Geared Motor: Powerful, effi cient AC geared-motor with heavy duty steel gears for high performance and minimal noise
- Extra-wide 16" feed opening
- All-Metal Cabinet with casters
- Auto Sensor: When the waste bin is full, the motor stops automatically
- Lifetime Guaranteed Heavy-Duty Waste Bin
- Auto Cleaning: If shred capacity is decreased, press reverse button for 5 seconds and motor will run in reverse for 1 minute
- Oil Indicator: After every 4 hours of use, the control panel LED fl ashes to suggest oiling cutting blades for optimal performance
- Self-Diagnosis System: Records operation time, number of auto-reverse sequences, volume of paper shredded, and can display information for service technicians
- Thermal Overload Protection
- Safety Circuit Breaker ensures safe operation
- Accepts staples, paper clips and credit cards
- Manual Function: Can be used when shredding small sized paper or fi lms which can't be detected by the sensor

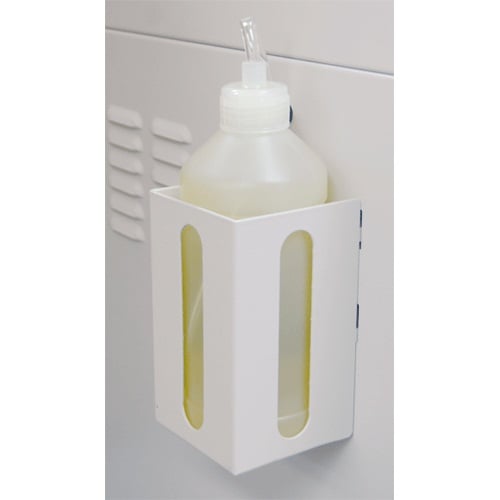

- Optional EvenFlow Semi-Automatic Oiling System: Easy-to-use pump and copper nozzles keep the heat-treated steel blades in peak condition
Specifications
- Cutting Style: Cross Cut
- Shred Size: 5/32" x 1-1/5"
- Sheet Capacity: 23 to 25
- Speed: 35 fpm
- Feed Opening: 16"
- Dimensions: 24" W x 20" D x 35" H
- Bin Capacity: 26 gal.
- Weight: 242 lbs.
- Security Level: P-4 (Old Level 3)
- Power Supply: 110V, 50/60 Hz
- Manufacturer's Warranty:
- Lifetime limited Manufacturer's Warranty on cutting heads.
- 1-year Manufacturer's Warranty on all other parts.
- Spiral / Binding101 Part Number: 04FXFD8502CC
Compare to Similar Shredders
| Model Name | Formax FD 8502CC | Formax FD 8402CC | Formax FD 8402SC | Formax FD 8502SC | Formax FD 8502AF | Formax FD 8602CC | Formax FD 8602SC | Formax FD 8652CC | Formax FD 8704CC |
|---|---|---|---|---|---|---|---|---|---|
| Model |  |
 |
|
|
 |
 |
|
 |
 |
| Part Number | FD-8502CC | FD-8402CC | FD-8402SC | FD-8502SC | FD-8502AF | FD-8602CC | FD-8602SC | FD-8652CC | FD-8704CC |
| Cutting Type | Cross Cut | Cross Cut | Strip Cut | Strip Cut | Cross Cut | Cross Cut | Strip Cut | Cross Cut | Cross Cut |
| Shred Size | 5/32" x 1-1/5" | 5/32" x 1-1/5" | 1/4" | 5/32" | 5/32" x 1-1/5" | 5/32" x 1-1/5" | 1/4" | 5/32" x 1 19/32" | 5/32" x 1-5/8" |
| Sheet Capacity | 23 to 25 sheets |
24 to 26 sheets |
30 to 32 sheets |
20 to 22 sheets |
Up to 175 sheets (AF) 22 to 24 sheets (HF) |
35 to 37 sheets |
29 to 31 sheets |
Up to 32 sheets |
40 to 45 sheets |
| Speed | 35 fpm | 33 fpm | 30 fpm | 33 fpm | 35 fpm | 22 fpm | 30 fpm | Up to 33 fpm | 12 fpm |
| Feed Opening | 16" | 12.2" | 12.2" | 16" | 16" | 16" | 9.4" | ||
| Dimensions (W x x H): | 24" x 20" x 35" | 20" x 20" x 34" | 20" x 20" x 34" | 24" x 20" x 35" | 24" x 20" x 35" | 24" x 20" x 35" | 24" x 20" x 35" | 28" x 24" x 43" | 20" x 20" x 36" |
| Bin Capacity | 33 gal | 28 gal | 28 gal | 33 gal | 26 gal | 33 gal | 33 gal | 53 gal | 28 gal |
| Security Level | Level 3 (HIPAA Compliant) | Level 3 (HIPAA Compliant) | Level 2 | Level 2 | Level 3 (HIPAA Compliant) | Level 3 (HIPAA Compliant) | Level 2 | Level 3 (HIPAA Compliant) | Level 3 (HIPAA Compliant) |
| Power Supply | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110-120V, 50/60 Hz |
