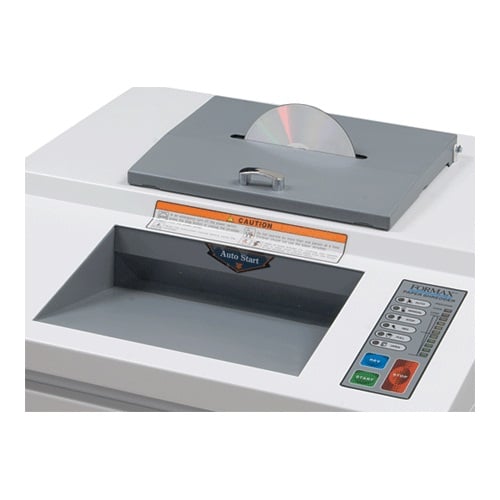

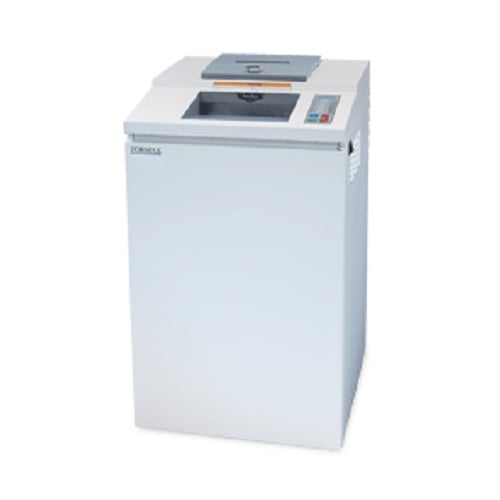

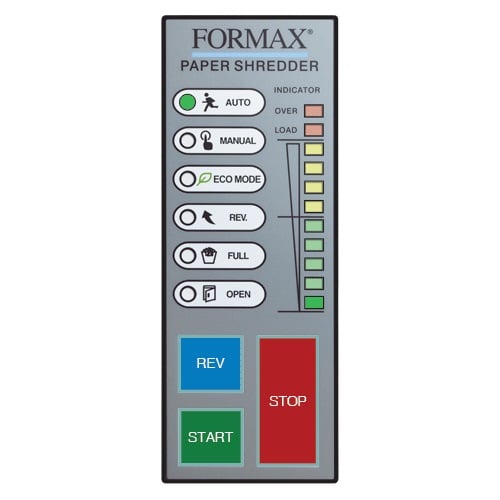

The OnSite FD 8704CC Multimedia Office Shredder combines commercial-grade performance with a compact design, featuring two dedicated feed openings—one for up to 45 sheets of paper at a time and another for shredding multiple CDs, DVDs, or DV tapes. It shreds paper at speeds up to 12 feet per minute into 5/32″ x 1 5/8″ particles and includes a large 28-gallon waste bin for extended operation. Designed for durability, it comes equipped with heat-treated steel blades, a powerful AC geared motor, a lifetime-guaranteed waste bin, and an intuitive LED control panel. ECO Mode automatically enters standby after 5 minutes to save energy, and the optional EvenFlow™ Automatic Oiling System ensures optimal cutting performance with minimal maintenance.
| Model Name | Formax FD 8704CC | Formax FD 8402CC | Formax FD 8402SC | Formax FD 8502CC | Formax FD 8502SC | Formax FD 8502AF | Formax FD 8602CC | Formax FD 8602SC | Formax FD 8652CC |
|---|---|---|---|---|---|---|---|---|---|
| Model | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
| Part Number | FD-8704CC | FD-8402CC | FD-8402SC | FD-8502CC | FD-8502SC | FD-8502AF | FD-8602CC | FD-8602SC | FD-8652CC |
| Cutting Type | Cross Cut | Cross Cut | Strip Cut | Cross Cut | Strip Cut | Cross Cut | Cross Cut | Strip Cut | Cross Cut |
| Shred Size | 5/32" x 1-5/8" | 5/32" x 1-1/5" | 1/4" | 5/32" x 1-1/5" | 5/32" | 5/32" x 1-1/5" | 5/32" x 1-1/5" | 1/4" | 5/32" x 1 19/32" |
| Sheet Capacity | 40 to 45 sheets |
24 to 26 sheets |
30 to 32 sheets |
23 to 25 sheets |
20 to 22 sheets |
Up to 175 sheets (AF) 22 to 24 sheets (HF) |
35 to 37 sheets |
29 to 31 sheets |
Up to 32 sheets |
| Speed | 12 fpm | 33 fpm | 30 fpm | 35 fpm | 33 fpm | 35 fpm | 22 fpm | 30 fpm | Up to 33 fpm |
| Feed Opening | 9.4" | 12.2" | 12.2" | 16" | 16" | 16" | 16" | ||
| Dimensions (W x x H): | 20" x 20" x 36" | 20" x 20" x 34" | 20" x 20" x 34" | 24" x 20" x 35" | 24" x 20" x 35" | 24" x 20" x 35" | 24" x 20" x 35" | 24" x 20" x 35" | 28" x 24" x 43" |
| Bin Capacity | 28 gal | 28 gal | 28 gal | 33 gal | 33 gal | 26 gal | 33 gal | 33 gal | 53 gal |
| Security Level | Level 3 (HIPAA Compliant) | Level 3 (HIPAA Compliant) | Level 2 | Level 3 (HIPAA Compliant) | Level 2 | Level 3 (HIPAA Compliant) | Level 3 (HIPAA Compliant) | Level 2 | Level 3 (HIPAA Compliant) |
| Power Supply | 110-120V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz |
