Product Description

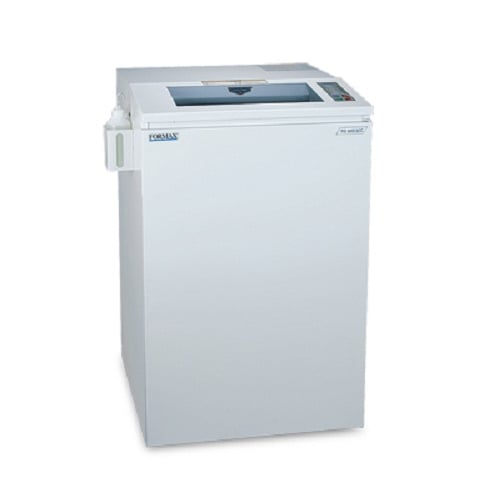

The Formax OnSite FD 8652CC AutoOiler Shredder delivers industrial-strength performance for centralized office environments, featuring the fully-automatic EvenFlow™ internal oiler that keeps cutting blades properly lubricated for peak efficiency. It shreds up to 32 sheets at once at speeds up to 33 feet per minute, with an extra-wide 16″ feed opening and a high-capacity 53-gallon waste bin for continuous workflow. Built for durability and information security, it includes heat-treated steel blades, a powerful AC geared motor, a lifetime-guaranteed waste bin, a steel cabinet, and an intuitive LED control panel with load indicator. ECO Mode reduces energy consumption by entering standby after 5 minutes of inactivity.
Product Details

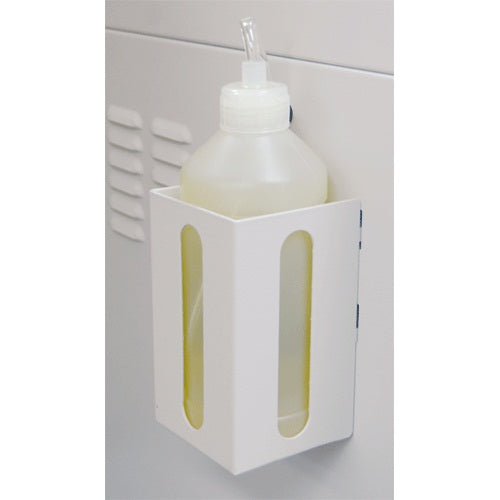

- Internal AutoOiler System: Automatically lubricates cutting blades for optimal performance.
- Auto Start/Stop/Reverse: Smooth operation with automatic jam clearing.

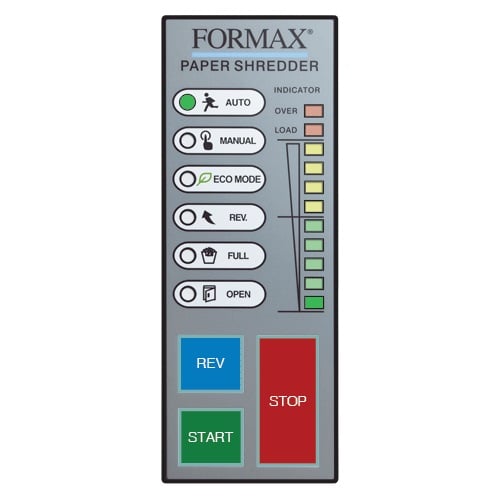

- LED Control Panel with Load Indicator: Easy monitoring of system status and shred load.
- Energy-Saving ECO Mode: Reduces power use during idle periods.
- Heat-Treated Steel Cutting Blades: Durable and long-lasting.
- Heavy-Duty Waste Bin: Lifetime guaranteed for maximum durability.
- Door Safety Sensor: Shuts off operation when the door is open.
- Rugged AC Geared Motor: Reliable power for continuous shredding.
- All-Metal Cabinet with Casters: Strong construction with easy mobility.
- Extra-Wide 16” Feed Opening: Handles larger documents and materials.
- Full Bin Sensor: Alerts when the waste bin needs to be emptied.
- Shreds Staples, Paper Clips & Credit Cards: No need to pre-sort materials.
- Auto Cleaning Function: Maintains cutting performance. Safety Circuit Breakers: Added protection for safe and reliable operation.
Specifications
- Cutting Style: Cross Cut
- Shred Size: 5/32” x 1 19/32” (4 x 41mm)
- Sheet Capacity: Up to 32 sheets* (70gsm)
- Speed: Up to 33 fpm (10m per minute)
- Feed Opening: 16” (41cm)
- Dimensions: 28” W x 24” D x 43” H (71 x 61 x 109cm)
- Bin Capacity: 53 gal (200l)
- Weight: 317 lbs (144kg)
- Security Level: P-4
- Power Supply: 110V, 50/60 Hz 20Amp
- Manufacturer's Warranty:
- Lifetime limited Manufacturer's Warranty on cutting heads.
- 1-year Manufacturer's Warranty on all other parts.
- Product Number: FD-8652CC
- Spiral / Binding101 Part Number: 04FXFD8652CC
Compare to Similar Shredders
| Model Name | Formax FD 8652CC | Formax FD 8402CC | Formax FD 8402SC | Formax FD 8502CC | Formax FD 8502SC | Formax FD 8502AF | Formax FD 8602CC | Formax FD 8602SC | Formax FD 8704CC |
|---|---|---|---|---|---|---|---|---|---|
| Model |  |
 |
|
 |
|
 |
 |
|
 |
| Part Number | FD-8652CC | FD-8402CC | FD-8402SC | FD-8502CC | FD-8502SC | FD-8502AF | FD-8602CC | FD-8602SC | FD-8704CC |
| Cutting Type | Cross Cut | Cross Cut | Strip Cut | Cross Cut | Strip Cut | Cross Cut | Cross Cut | Strip Cut | Cross Cut |
| Shred Size | 5/32" x 1 19/32" | 5/32" x 1-1/5" | 1/4" | 5/32" x 1-1/5" | 5/32" | 5/32" x 1-1/5" | 5/32" x 1-1/5" | 1/4" | 5/32" x 1-5/8" |
| Sheet Capacity | Up to 32 sheets |
24 to 26 sheets |
30 to 32 sheets |
23 to 25 sheets |
20 to 22 sheets |
Up to 175 sheets (AF) 22 to 24 sheets (HF) |
35 to 37 sheets |
29 to 31 sheets |
40 to 45 sheets |
| Speed | Up to 33 fpm | 33 fpm | 30 fpm | 35 fpm | 33 fpm | 35 fpm | 22 fpm | 30 fpm | 12 fpm |
| Feed Opening | 12.2" | 12.2" | 16" | 16" | 16" | 16" | 9.4" | ||
| Dimensions (W x x H): | 28" x 24" x 43" | 20" x 20" x 34" | 20" x 20" x 34" | 24" x 20" x 35" | 24" x 20" x 35" | 24" x 20" x 35" | 24" x 20" x 35" | 24" x 20" x 35" | 20" x 20" x 36" |
| Bin Capacity | 53 gal | 28 gal | 28 gal | 33 gal | 33 gal | 26 gal | 33 gal | 33 gal | 28 gal |
| Security Level | Level 3 (HIPAA Compliant) | Level 3 (HIPAA Compliant) | Level 2 | Level 3 (HIPAA Compliant) | Level 2 | Level 3 (HIPAA Compliant) | Level 3 (HIPAA Compliant) | Level 2 | Level 3 (HIPAA Compliant) |
| Power Supply | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110V, 50/60 Hz | 110-120V, 50/60 Hz |
Video
Formax FD 8652 Onsite Shredder Demo Video
