Product Description

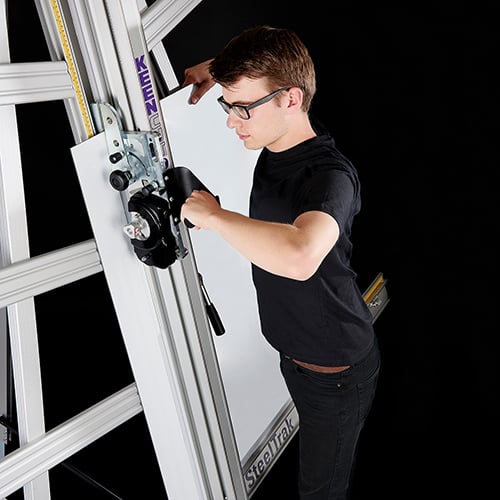

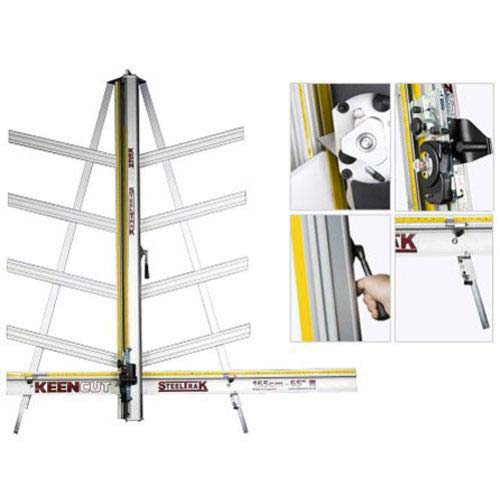

The Keencut SteelTrack vertical substrate cutter is designed specificall with the sign, print shop, and graphics industry in mind. Capable of cutting even the thickest of materials - up to 5mm Dibond, PVC, Glass, Acrylic, and much more, the Keencut SteelTrak cutter is perfect for businesses with heavy duty cutting needs. Equipped with a 3 blade cutting head to easily cut a wide range of materials all on the same line, plenty of cutting options, material securing mechanisms, and more all backed by Keencut's 5 year general Manufacturer's Warranty, the Keencut SteelTrack vertical cutter is easily one of the most reliable and versatile cutters available today. Check out all of the features below and save on the Keencut SteelTrack vertical material cutter today with MyBinding.com. This product is currently only available to our customers in the United States of America. If you are located internationally, you will need to contact a local dealer to purchase this particular product.
Product Details
- Heavy-duty construction to withstand tough use in a production environment
- Quick payback through reduced waste and cutting time
- All tools fitted and instantly selectable
- Guaranteed for 5 years
- Materials Cut:
- Rigid Materials
- Aluminium composite panel e.g Dibond ≤ 4mm (1/8″)
- Steel composite panel e.g Multishield ≤ 3mm (3/32″)
- V-grooves Dibond ≤ 3mm (3/32″) with optional SteelTrak v-groover
- MDF ≤ 3mm (3/32″)
- Cast acrylic / Plexiglas (scoring only) ≤ 3mm (3/32″)
- Glass ≤ 6mm (1/4″) with optional glass cutting kit (Product code: STGLC)
- Semi-rigid Materials
- PVC foamboard ≤ 13mm (1/2″)
- Corrugated/fluted plastic ≤ 13mm (1/2″)
- Corrugated cardboard ≤ 13mm (1/2″)
- Foam centred board ≤ 13mm (1/2″)
- Mountboard ≤ 6mm (1/4″)
- Aluminium sheet ≤ 1mm (1/25″) with optional cutting head ( Product code: STALC)
- Rigid Materials

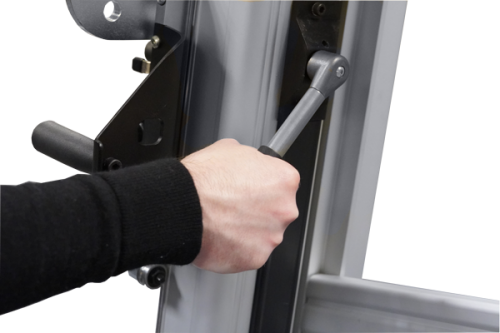

Perfect cut every time To ensure precision accuracy, the SteelTrak’s unique pressure-sensitive clamp can be first applied lightly to allow for fine adjustments, before the pressure is increased for a firm hold. The clamp is designed to protect delicate boards and printed surfaces. The sightline strip helps you achieve exact alignment and all the blades cut along the same line. |

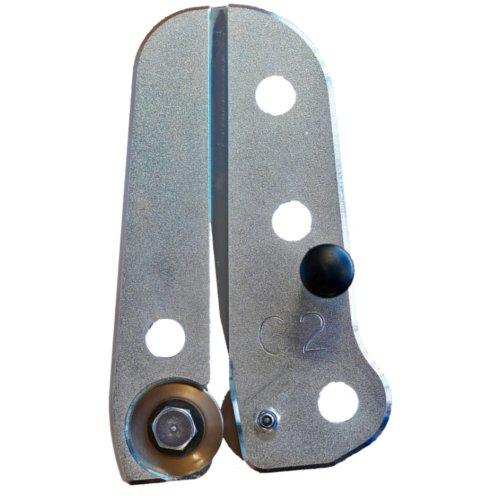

Cut steel and aluminium composite safely and accurately The newly developed SteelTrak C2 composite cutting head will cut steel composite panel, e.g Multishield and aluminium composite panel, e.g DiBond, in a single pass without creating dangerous sparks or dust. The new cutting head significantly reduces any curvature on the cut material to facilitate successful flat-bed printing and minimise waste. There is no need for extra edge finishing, so productivity is increased, and safety guaranteed. Note: The SteelTrak is now supplied with the new SteelTrak C2 composite cutting head as standard. Existing SteelTrak users can purchase an upgrade from their Keencut dealer. |
Saves time and money In a high production environment, repeatable accurate cutting reduces waste and increases productivity. A pair of left and right-hand production stops and a precise squaring arm allows users to quickly cut boards to a specific measurement. Scoring and cutting blades are permanently mounted for instant use and cut along the same line. With the SteelTrak, there is no need for additional tools or finishing products. |
|||
Cut and finish large sheet materials in one pass For those who need to cut larger sheet materials, the ST250 is the perfect choice. It will cut and finish 2.4m x 1.2m (8’ x 4’) sheet materials in one pass. Both the ST210 and the ST250 are fitted with an extendable arm to allow easy reach to the top of the machine. |
Space saving and silent The upright structure and wall mounting feature saves workshop space. The design uses your body weight to minimise the effort needed to cut tough materials. There is no noise and no need for electric power and the upright design and the low friction bearing system combined together reduces user fatigue. |
Sign trays and much more With the addition of the optional V-groove tool, the SteelTrak creates perfect sign trays, self-standing displays, boxes and exhibition stands. The V-groove tool fits directly onto the SteelTrak cutting head and is ready for action in seconds. |
|||
Five year guarantee By manufacturing in-house, with only the highest quality materials, Keencut can guarantee that the SteelTrak will provide reliable long-lasting and accurate service. All Keencut products are offered with a comprehensive five year guarantee. Register your product to activate your guarantee |
In the box 100 medium duty utility blades |
||||
Specifications
- Cut Length cm ("): 165cm (65")
- A cm ("): 244cm (96")
- B cm ("): 213cm (84")
- Wall Mounted – Standard – C: 52-58 cm (20 – 22”)
- Free Standing – Optional – C: 100 cm (40”)
- Packed Weight: 75 kg (165 lbs)
- Packed Dimensions cm ("): 233 x 46 x 35cm (92" x 18" x 14")
SteelTrak Vertical Substrate Cutters
| Product Name | Item Number |

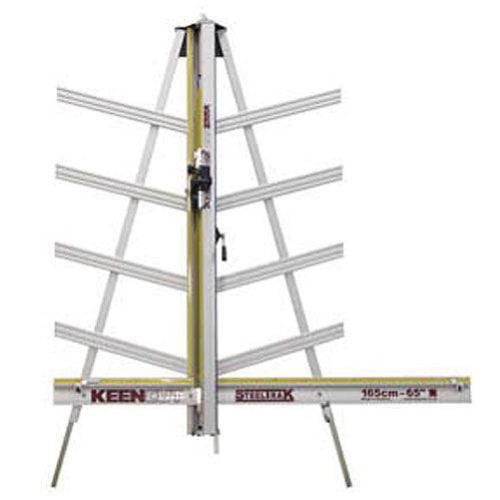

| Keencut SteelTrak 65" Vertical Substrate Cutter | ST165 |
| Keencut SteelTrak 82" Vertical Substrate Cutter | ST210 |
| Keencut SteelTrak 98" Vertical Substrate Cutter | ST250 |
Free-Standing Kits and Tool Heads
| Product Name | Item Number |
| Free-standing kit for SteelTrak 165cm - 65" | FSK160 |
| Free-standing kit for SteelTrak 210cm - 82" | FSK210 |
| Free-standing kit for SteelTrak 210cm - 98" | FSK250 |
| Product Name | Item Number |
| Steel composite cutting head for SteelTrak | STC2C |

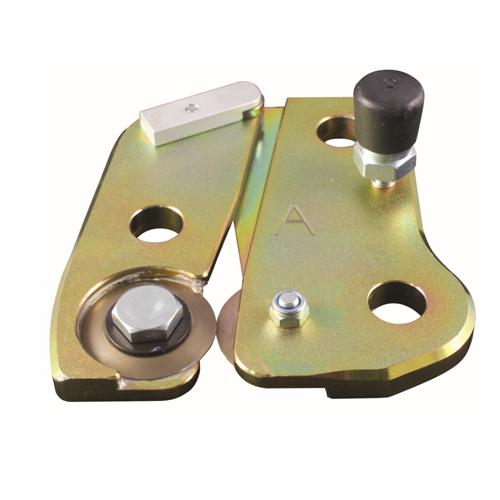

| Aluminium twin wheel cutting head for SteelTrak | STALC |
| Glass cutting kit for SteelTrak | STGLC |

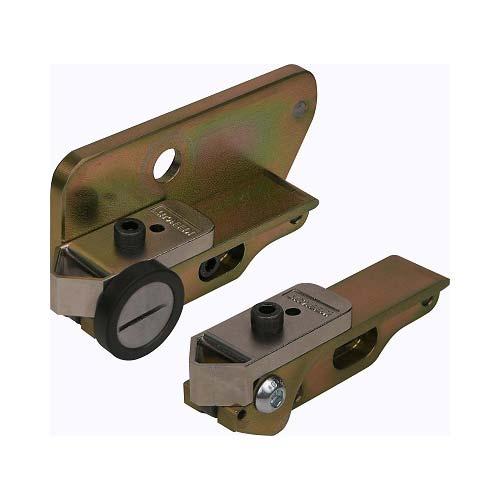

| 2mm V-Groove cutting tool for SteelTrak | STVG2 |
| 3mm V-Groove cutting tool for SteelTrak | STVG3 |
| 4mm V-Groove cutting tool for SteelTrak | STVG4 |
| 6mm V-Groove cutting tool for SteelTrak | STVG6 |
Accessories, Blades & Consumables
| Product Name | Item Number |

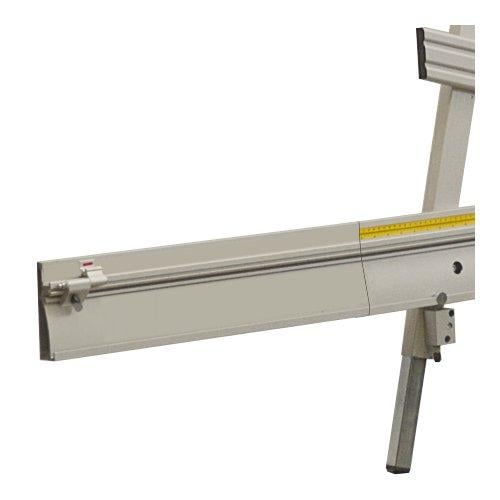

| Squaring arm extension - 700mm (27.5") for SteelTrak | STSAE |
| Yellow 'T' shape silicon cord (x 33ft) | SILYT |
| Tungsten Carbide Glass Cutting Wheel (each) | CA50-015 |
| Medium Duty Blades (Box of 100) | CA50-019 |
| V-Groove Replacement Blade for SteelTrak (x 5) | STVGB |

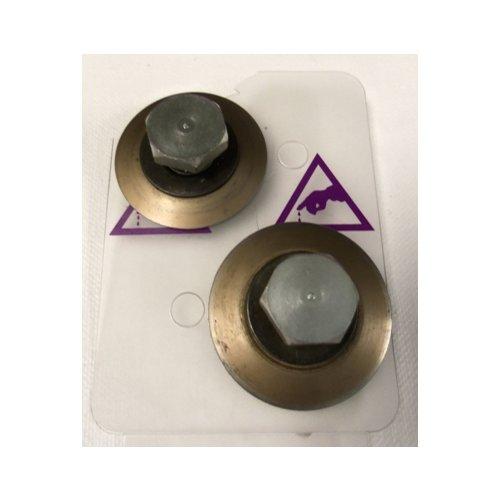

| Aluminium twin wheel cutter blade set for SteelTrak | STALW |
| Composite twin wheel cutter blade set for SteelTrak | STCOW |
| Superior Quality Blades (box of 100) | CA50-010 |
Quick Cutter Guide
| Model Name | SteelTrak | Excalibur 3S | Evolution3 SmartFold | Evolution3 BenchTop | Evolution3 FreeHand | Sabre Series 2 | Simplex |
|---|---|---|---|---|---|---|---|
| Model |  |
 |
 |
 |
 |
 |
 |
| Cut sizes | 165cm (65") 210cm (82") 250cm (98") |
160cm (63") |
110cm (44") 160cm (64") 210cm (84") 260cm (104") 310cm (124") 360cm (142") 410cm (160") 460cm (180") 510cm (200") |
110cm (44") 160cm (64") 210cm (84") 260cm (104") 310cm (124") 360cm (142") 410cm (160") 460cm (180") 510cm (200") |
110cm (44") 160cm (64") 210cm (84") 260cm (104") 310cm (124") |
100cm (40") 150cm (60") 200cm (80") 250cm (100") 300cm (120") |
110cm (44") 160cm (64") 210cm (84") 260cm (104") 310cm (124") |
| Why buy? | Volume production of rigid and semi rigid materials. Need to V-groove. | Some need to cut rigid and semi rigid materials | Production cutting needs with high accuracy for semi rigid and light weight materials. Need to free up space on workbench by folding down. No need for cutting mat - integrate cutting strip included. | Regular cutting needs with high accuracy for semi rigid and lightweight materials. Cutting mat required if using Fabric head. | Portable cutting with high accuracy. Cutting mat required. | General purpose cutting of most standard semi rigid and light weight materials with less need for accuracy. Cutting mat required if using fabric blade. | Light cutting needs with little accuracy and a high need for portability. Cutting mat required. |
| Aluminimum composite panel e.g Dibond | = 4mm (1/8") | = 3mm (3/32") | = 3mm (3/32") scoring with Rocker tool head only | ≤ 3mm (3/32") scoring with Rocker tool head only | N/A | N/A | N/A |
| Steel composite panel e.g Multishield | = 3mm (3/32") | N/A | N/A | N/A | N/A | N/A | N/A |
| V-grooves Dibond | = 6mm (3/32") - with optional v-grooving tool in 5 size | N/A | N/A | N/A | N/A | N/A | N/A |
| MDF | = 3mm (3/32") | = 3mm (3/32") | N/A | N/A | N/A | N/A | N/A |
| Cast acrylic e.g Plexiglas | = 3mm (3/32") - Scoring only | = 3mm (3/32") - Scoring only | = 3mm (3/32") - Scoring only | ≤ 3mm (3/32") - Scoring only | ≤ 3mm (3/32") - Scoring only | ≤ 3mm (3/32") - Scoring only | ≤ 3mm (3/32") - Scoring only with optional SCO |
| Glass | = 6mm (1/4") - with optional glass scoring kit | N/A | N/A | N/A | N/A | N/A | N/A |
| PVC foamboard | = 13mm (1/2") | = 13mm (1/2") | = 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 6mm (1/4") |
| Corrugated/fluted plastic | = 13mm (1/2") | = 13mm (1/2") | = 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 10mm (3/8") |
| Corrugated cardboard | = 13mm (1/2") | = 13mm (1/2") | = 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 10mm (3/8") |
| Foam centred board | = 13mm (1/2") | N/A | = 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 13mm (1/2") | ≤ 10mm (3/8") |
| Mountboard | = 6mm (1/4") | N/A | N/A | N/A | N/A | N/A | N/A |
| Aluminimum sheet | = 1mm (1/4") - with optional cutting head | N/A | N/A | N/A | N/A | N/A | N/A |
| Banners | N/A | N/A | Yes | Yes | Yes | Yes | Yes |
| Pop-ups | N/A | N/A | Yes | Yes | N/A | N/A | N/A |
| Film & self-adhesive vinyls | N/A | N/A | Yes | Yes | Yes | Yes | Yes |
| Magnetic sheet | N/A | N/A | Yes | Yes | Yes | Yes | Yes |
| Textiles, tissue paper and wallpaper | N/A | N/A | Yes | Yes | Yes | Yes | Yes - with optional textile cutter |
| Included with machine | 100 medium duty utility blades, Twin wheel cutter, spare sightline strip | 100 medium duty utility blades, Twin wheel cutter, spare sightline strip | 100 Graphik blades, double Graphik tool head | 100 Graphik blades, double Graphik tool head | 100 Graphik blades, double Graphik tool head | 100 medium duty utility blades, 10 Graphik blades, 1 Graphik blade holder, 1 rotary blade holder, 1 medium duty blade holder | 100 medium duty utility blades |
| Accessories |
Medium duty utility blades V-groove tool blades for vgroove tool free standing kit glass cutting kit aluminium cutting head Squaring arm extension |
Medium duty utility blades free standing kit Squaring arm extension |
Graphik blades Fabric tool head Creaser tool head Rocker tool head techD.012 blades SmartFold bench |
Graphik blades Fabric tool head Creaser tool head Rocker tool head techD.012 blades BenchTop bench |
Graphik blades Fabric tool head Creaser tool head Rocker tool head techD.012 blades BenchTop bench or M-Bench System |
Stand pack Extended squaring arm Hot knife holder Medium duty utility blades Graphik blades 45mm Circular blades |
Textile cutter Medium duty utility blades Scoring blades |
