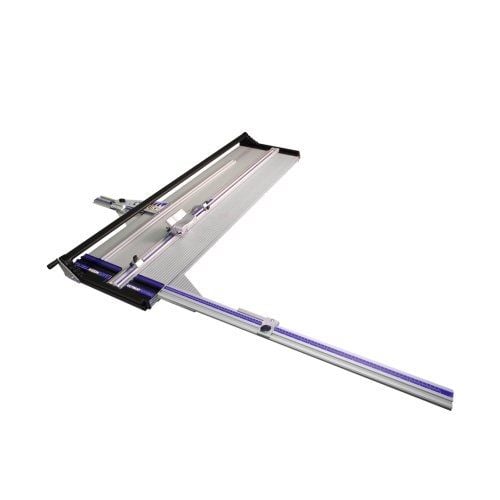

Keencut Ultimat Futura 40" Mat Cutter - 61310
$2,002.50 NewCondition InStock
Keencut Ultimat Futura 40" Mat Cutter - 61310

Keencut Ultimat Futura 40" Mat Cutter - 61310

Part #: 61310
0 Questions, Ask a Question
Brand: Keencut

Your Price: $2,002.50

Retail: $2,225.00

You Save: 10%

Brand New Price Match Guarantee In Stock Free Shipping 5 Year Warranty / 20 Years on Bearing

Your Price: $2,002.50

Retail: $2,225.00

You Save: 10%

ProductDescription

The Foster Keencut Ultimat Futura 40" Mat Cutter features a new cutting head with self-aligning roller bearings, the Ultimat Futura represents the future of manual mat cutters - and offers the smoothest cut ever. The Ultimate Futura Include: Switchable magnetic blade holders for cutting different thicknesses, Large-diameter roller thrust bearings on the cutting head for total control of both blade carriers, No flex, side play or hooks, Base plate that accommodates all accessories, Roller lift and hold system and Patented micro-stops.

Product Details

  • Cutting head is mounted on roller bearings running on steel tracks.
  • 20 year warranty on the bearings.
  • Cuts up to 5mm thick semi-rigid substrates.
  • Designed to cut bevels on 3.5mm thick conservation board.
  • Easy to change blade cartridges mean switching between cutting different materials can be done in seconds.
  • Ergonomically designed cutting head makes it easy to use over long periods- comfortable for left or right-handed users.
  • Roller ‘lift and hold’ system with one-handed operation raises or lowers the cutter bar and frees hands for precise mat placement without holding up the lifting handle.
  • The new high performance slideway and head system uses Foster Keencut’s SteelTraK technology.
  • Sliding gauge pinpoints blade entry and exit spot for exact freehand cutting.
  • Patented micro stop adjusters fitted to the ‘start of cut,’ ‘end of cut’ and ‘margin guide’ stops allow you to dial out overcuts or undercuts in seconds.

ItemSpecifications

  • Cut Size: 40"
  • Includes: Tech D .012 blades (30); Superior Quality utility blades (20); Tech S .012 blades (15); Tech S .015 blades (15)
  • Warranty:
    • 5-year parts warranty (excluding blades, clamp strips, site line strips and cutting wheels).
    • 20-year warranty on the bearings used in the cutting head.
  • Part Number: 61310

ProductReviews

1 Review(s)
image alt text

Reviewed on 8/17/2015

Wonderful addition to studio Review by Charles M.

Always buy the best tools you can afford. Quality tools make work easier and more enjoyable. This mat cutter is simply the best. Yes, it is expensive, but the cost quickly becomes a distant memory the more we use it. No problems with assembly. There are numerous You Tube demos and how-tos. The cutter makes us more productive. More productivity means better profits.

I would highly recommend this cutter for those who desire the highest quality in their work.

1 Item(s)

per page
  • 1 star
    1 star
    1 star
    1 star
    1 star

DemonstrationVideo

Straight Cut Using the Keencut Ultimat Futura

Transcript: This is the Keencut Ultimat Futura 40 inch Mat Cutter!

I am showing you specifically the 40 inch version. There is also a 48 and 62 inch version.

There are two main functions with this cutter—and that is straight cuts and window cuts. A primary function, but not exclusive, is for picture framing mat boards.

If you’re framing, usually you need to cut the board to size, or square it up. You can also cut other materials, which I’ll show.

Before using, always read the manual This video will assist you, along side reading it.

Before we start, there is really only one piece to a...
Read More
This is the Keencut Ultimat Futura 40 inch Mat Cutter!

I am showing you specifically the 40 inch version. There is also a 48 and 62 inch version.

There are two main functions with this cutter—and that is straight cuts and window cuts. A primary function, but not exclusive, is for picture framing mat boards.

If you’re framing, usually you need to cut the board to size, or square it up. You can also cut other materials, which I’ll show.

Before using, always read the manual This video will assist you, along side reading it.

Before we start, there is really only one piece to assemble. and it simply screws in on the side.

Now you can use the lift to bring the cutting bar up just enough to slip in your project using both hands.

For straight cuts, we’ll be using the longest measuring arm.

Next attach the measure arm into the side rail. With it angled up, slip it in, then shift it to the side.

There are two blades on the cutting head. The vertical blade holder has a lock on it to avoid cutting while using the other bevel blade.

Before you make your cut, set the limit stop to the amount you want to cut off. At this current point, it’s set to cut off about two inches.

You can also lift the entire handle up and place in your project.

Before cutting, make sure the blade is long enough to cut through the entire thickness. If it’s not, or if it’s even too long, take the blade out and adjust it. This black screw controls the depth. I’ll also note, that there are several blades to choose from, each optimized for specific materials, I will go over these.

But now that it’s ready, bring the blade down, and push it through the entire project. Then remove the extra

The cutter bar freely rotates to lay flat on any project, you do want to insure that it is in fact parallel with the base before every cut.

Now, with the blades, the TECH S blades are only suppose to be used on one side as they are marked. The TECH 12 blades are for harder boards under 3mm thick, and the TECH S 15 are better for harder thicker boards.

Provided are some higher quality standard blades, which should only be used for vertical cutting. Though the 080 are higher quality than most off brand blades, it is still said to be lesser quality than the TECH blades.

TECH D blades are better general purpose cuts, with the 15 again being for thicker, and soft materials.

If I still have your curiosity at this point, you can continue watching the next video on how to make a bevel cut using the Ultimat Futura mat cutter.

Bevel Cut Using the Keencut Ultimat Futura

Transcript: In this video I’m going to show you how to do a bevel cut using the Keencut Futura. If you haven’t already done so, I recommend watching the video on how to perform a straight cut first—in this video is other general information as well.

I’ll be making a beveled window in my mat for a picture frame as seen here. This is a great supplement to the written instructions—always read the instructions.

For this process we’ll be using the smaller mat guide, and the T-bar slides onto that piece. It slides into place like so.

If you don’t want the mat guide to move from side to si...
Read More
In this video I’m going to show you how to do a bevel cut using the Keencut Futura. If you haven’t already done so, I recommend watching the video on how to perform a straight cut first—in this video is other general information as well.

I’ll be making a beveled window in my mat for a picture frame as seen here. This is a great supplement to the written instructions—always read the instructions.

For this process we’ll be using the smaller mat guide, and the T-bar slides onto that piece. It slides into place like so.

If you don’t want the mat guide to move from side to side, adding this lock piece will help it stay in place.

When you are starting out, it may help to mark where you want your window to be as an added guide.

Next measure out the end of cut limit stop for the size you want your mat window. I will note that I am doing a uniform window. I’m setting them all to 3/4”.

Now for the start of cut limit stop.

And finally the mat guide limit stop.

Next put in a larger scratch sheet, referred to as a slip sheet, and then the real project lined up in the corner on top of the slip sheet.

Bring the cutter bar down and adjust the blade just to the point it is slightly cutting into the slip sheet. If it is too long or too short, adjust the blade depth and put it back into the cutter head. Also note that you should choose the right blade, which I will discuss at the end of the video.

With the blade and project ready push down on the edge stopper and slide it to your project until it comes up to the side of your project, stopping the cutter head from moving and more. Now bring the blade down into your project, let go of the edge stopper, and proceed to make the first cut. Notice how the cutter head is stopped short by the end of cut limiter?

Now do the same process for all four sides of the project. If done correctly you will come out with a nice windowed board.

You may find that the corners are still slightly attached. Like on this framing mat board. If you pull it apart then you’re going to have some unsightly and unprofessional corners. To avoid this you can make micro-adjustments on the appropriate stops, which are color coded with blue, green, and red.
