Model NameModelThroat CapacityMax Laminating SpeedMax Pouch ThicknessMax Laminating ThicknessHeated Roller SystemMemory SettingsSpeed ControlOperating TemperatureDimensionsWeightPower ConsumptionWarranty
-
Akiles Pro-Lam Plus 1606.3″ (160 mm)23″ / min10 mils (250 Mic.)3/64″ (1 mm)2 Hot / 2 ColdN/AN/A176 - 320 F14.5″ x 8.5″ x 4.5″14 lbs (16 Kg)N/A1 Year
-
Akiles Pro-Lam Plus 33013″ (330 mm)23″ / min10 mils (250 Mic.)3/64″ (1 mm)2 Hot / 2 ColdN/AN/A176 - 320 F21″ x 8.5″ x 4.5″20 lbs (26 Kg)N/A1 Year
-
Akiles iLam Plus12.8″ (325mm)21″ / min10 mils (250 Mic.)3/64″ (1 mm)4 Silicone (2 Hot / 2 Cold)N/AN/A293°F (Max)19″ x 18.5″ x 4.5″15 lbs (7 Kg)550 watts1 Year
-
Akiles Pro-Lam Photo13″ (330mm)59″ / min10 mils (250 Mic.)1 mm6 Silicon Rollers (4 Heat / 2 Cold)Electronic (8-bit Micro Processor)9 Settings32 – 320°FN/A39 lbs1150W1 Year
-
Akiles Pro-Lam Ultra13″ (330mm)53″ / min14 mil1/8″ (3 mm)6 Silicon Rollers (4 Heat / 2 Cold)7 Presets9 Settings140°C (Max)1.2 CuFt (Volume)33 lbs1150 W1 Year
-
Akiles Prolam Ultra X613″ (330 mm)59″ / min14 mil (350 mic)1/8″ (3 mm)4 Hot / 2 Cold2 Programmable (Temperature & Speed)9 Settings32°F – 284°F21″ x 10.5″ x 5″35 lbs (16 Kg)1050 W1 Year
-
Akiles Prolam Ultra XL18.9″ (480 mm)47″ / min14 mil (350 mic)1/8″ (3 mm)4 Hot / 2 Cold2 Programmable (Temperature & Speed)9 Settings32°F – 284°F27.25″ x 10.5″ x 5″44 lbs (20 Kg)1200 W1 Year
-
Akiles Prolam Ultra X1013″ (330 mm)142″ / min14 mil (350 mic)1/8″ (3 mm)6 Hot / 4 Cold2 Programmable (Temperature & Speed)9 Settings32°F – 320°F14″ x 25.75″ x 5.75″57 lbs (26 Kg)1560 W1 Year
We're sorry, but we no longer offer this item.
Call us at 1-800-944-4573 for personalized recommendations
or check out these similar items that may be a good fit:

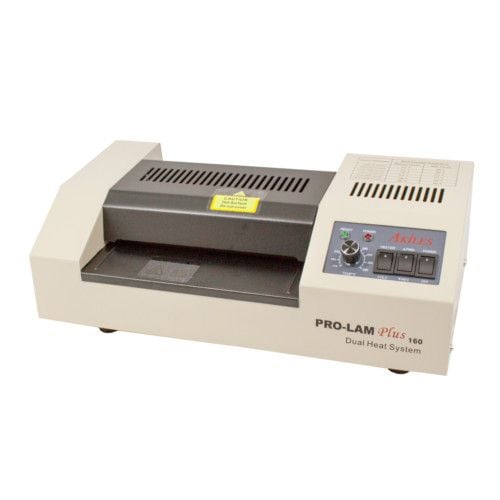

Pro-Lam Plus 160 Akiles Pouch Laminator
- 0
- 1
- 2
- 3
Product Description
Product Details
- Metal Cover (Dual Color). For a longer lasting lifespan & a more professional, heavy duty look.
- Silicon Rollers. Provide the flexibility of laminating with or without a carrier.
- Metal Gears. To guarantee strength and durability.
- Ready Light / Power Light / Power Switch
- Forward / Reverse Switch. Allows easy corrective action for jams. i.e. when document is improperly fed or temperature was set too high.
- Heat / Cold Switch. Offers cold lamination function.
- Electronic Circuit (PCB) & Gradual Temperature Control. For a fast, consistent and easy fine-tuning of temperature. Ideal when operator requires frequent changing of pouch thickness, pouch composition or when laminating different materials.
- 6.3" Throat. Extra-wide entrance for easy pouch feeding.
- Dual Heat System (heated rollers & heat plate combination). For a more efficient lamination at lower temperatures. Allows for a perfect lamination of all standard pouch thicknesses (from 3 mils up to 10 mils).
- Photo Ready. Heated-rollers allow a balanced heat distribution during laminating process, thus guaranteeing a crystal clear, bubble-free laminating result even when you laminate photos & ink-jet printouts.
- Warranty. 1 Year Manufacturer Warranty
Item Specifications
- Model: Prolam Plus 160
- Throat: Capacity 6.3"
- Motor: Heavy-Duty
- Laminating Heat Range: 176 - 320 F
- Maximum Pouch Thickness: 10mil
- Temperature Control: Electronic (PCB)
- Laminating Speed: 540mm / min
- Cover: Metal
- Actual Machine Dimensions (L x W x H): 16-1/2" x 8-1/2" x 5"
- Shipping Length:17"
- Shipping Width:11"
- Shipping Height:7"
- Shipping Weight:16 Lbs.
- Warranty: 1 year
Demonstration Video
It’s made for small lamination projects, here it is a comparison next to a 4x6 photo. Do not insert anything larger.
On the top is a guide to what temperatures to use for every pouch size—with or without a carrier.
And the temperature is completely adjustable.
To use, first place your project into the a pouch. Align for even margins. Then place that into your carrier so the creases line up. A carrier helps keep any extra adhesive from seeping onto your machine. Place the carrier into the machine and…
N ... Read More
This is the Akiles Pro-Lam Plus 160, a high quality pouch laminator!
It’s made for small lamination projects, here it is a comparison next to a 4x6 photo. Do not insert anything larger.
On the top is a guide to what temperatures to use for every pouch size—with or without a carrier.
And the temperature is completely adjustable.
To use, first place your project into the a pouch. Align for even margins. Then place that into your carrier so the creases line up. A carrier helps keep any extra adhesive from seeping onto your machine. Place the carrier into the machine and…
Now you have a high quality laminated project.
If you misplace your project, you can reverse it out and try again.
It also does cold lamination for different applications.
And you’ll see that the highest heat required by the pouches is 293 degrees fahrenheit. But it gives you some leeway with a max heat of 320.
Lastly, if your machine stops working and you don’t know why, you could have blown a fuse—this is a great safety feature and protects your machine from worse damage. Just pop the fuse out and replace it with the spare provided and you’re ready to continue laminating!
