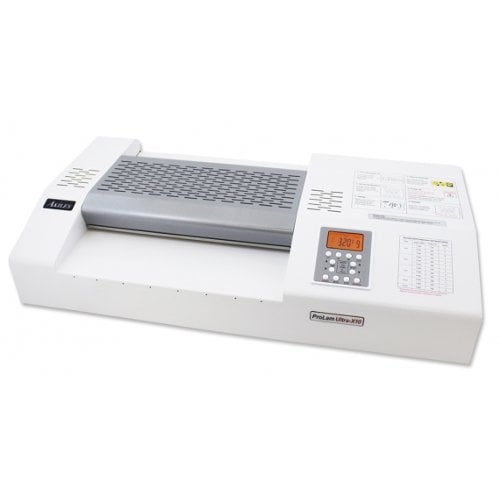

Name: Akiles Prolam Ultra X10 13" Pouch Laminator
Brand: Akiles
SKU: AKPLULTRAX10

Akiles Prolam Ultra X10 13" Pouch Laminator

$1,599.00

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# AKPLULTRAX10

Professional Quality Results: Achieve crystal-clear, bubble-free laminations with the advanced 10 roller system, perfect for both personal and commercial projects.
Versatile Laminating Options: Easily laminate a variety of materials, including pouches up to 14mil thick and boards up to 1/8" thick, catering to diverse project needs.
User-Friendly Operation: The backlit LCD control panel and programmable memory settings make it simple to adjust temperature and speed for optimal results every time.
Enhanced Safety Features: The auto shutoff function ensures the machine cools down and powers off after use, promoting longevity and safe operation.

Product Description

The Akiles ProLam Ultra X10 laminator possesses superior quality and functionality combined with a commercial grade design. The Ultra X10 has a 10 roller system that produces professional, crystal-clear and bubble-free pouches every time. Other features of the Ultra X10 include programmable memory settings, auto shutoff, LCD control panel and a large 13" opening for larger pouch laminating.

Product Details

Throat Capacity: 13" (330 mm)

Max Laminating Speed: 142" / min

Max Pouch Thickness: 14mil (350 mic)

Max Laminating Thickness: 1/8" (3 mm)

Heated Roller System: 6 Hot / 4 Cold

Memory Settings: 2 Programmable (Temperature & Speed)

Speed Control: 9 Settings

Operating Temperature: 32Â°F - 320Â°F

Dimensions: 14" x 25.75" x 5.75"

Weight: 57 lbs (26 Kg)

Power Consumption: 1560 W

Manufacturer's Warranty: 1 Year

Compatible Supplies: Pouch Laminate Up to 13" Wide & 1.5-14mil Thick
Up to 1/8" Pouch Board

Specifications

Commercial Grade 6 or 10 Roller Laminators with Programmable Memory Settings

Programmable Memory Settings: Allows you to save the ideal temperature and speed for your most frequent projects.

Blazing Fast 10 Roller Heat System: The 10 roller heat system grants you one of the fastest laminating speeds in its class (i.e. 142" per minute). 6 heated rollers + 2 cold rollers + 2 ejector rollers guarantees professional grade results at blazing fast speeds.

Auto Shutoff: Automatically cools and shuts down the machine after usage, to prolong the life of your laminator.

13" Throat: Allows the machine to laminate a wide array of pouch sizes.

Removable Cover: Allows quick access to the roller with easy-to-remove thumb screws.

LCD Control Panel: Backlit LCD display with labeled keypad makes it easy to operate.

Setting Guide: Shows the recommend temperature and speed settings for different pouch thicknesses.

13" Capacities: The large 13" (X6 / X10) or extra large 18.9" (XL) throat allows the machine to laminate a wide array of pouch sizes.

Air Cooling System: Patented internal cooling system ensures the laminator stays cool to the touch while in use.

Programmable Memory Settings: Memorize the ideal temperature & speed settings for your most frequently used pouches.

Compare to Similar Pouch Laminators

Model Name

Model

Throat Capacity

Max Laminating Speed

Max Pouch Thickness

Max Laminating Thickness

Heated Roller System

Memory Settings

Speed Control

Operating Temperature

Dimensions

Weight

Power Consumption

Warranty
Akiles Pro-Lam Plus 160

6.3″ (160 mm)

23″ / min

10 mils (250 Mic.)

3/64″ (1 mm)

2 Hot / 2 Cold

N/A

N/A

176 - 320 F

14.5″ x 8.5″ x 4.5″

14 lbs (16 Kg)

N/A

1 Year
Akiles Pro-Lam Plus 330

13″ (330 mm)

23″ / min

10 mils (250 Mic.)

3/64″ (1 mm)

2 Hot / 2 Cold

N/A

N/A

176 - 320 F

21″ x 8.5″ x 4.5″

20 lbs (26 Kg)

N/A

1 Year
Akiles iLam Plus

12.8″ (325mm)

21″ / min

10 mils (250 Mic.)

3/64″ (1 mm)

4 Silicone (2 Hot / 2 Cold)

N/A

N/A

293°F (Max)

19″ x 18.5″ x 4.5″

15 lbs (7 Kg)

550 watts

1 Year
Akiles Pro-Lam Photo

13″ (330mm)

59″ / min

10 mils (250 Mic.)

1 mm

6 Silicon Rollers (4 Heat / 2 Cold)

Electronic (8-bit Micro Processor)

9 Settings

32 – 320°F

N/A

39 lbs

1150W

1 Year
Akiles Pro-Lam Ultra

13″ (330mm)

53″ / min

14 mil

1/8″ (3 mm)

6 Silicon Rollers (4 Heat / 2 Cold)

7 Presets

9 Settings

140°C (Max)

1.2 CuFt (Volume)

33 lbs

1150 W

1 Year
Akiles Prolam Ultra X6

13″ (330 mm)

59″ / min

14 mil (350 mic)

1/8″ (3 mm)

4 Hot / 2 Cold

2 Programmable (Temperature & Speed)

9 Settings

32°F – 284°F

21″ x 10.5″ x 5″

35 lbs (16 Kg)

1050 W

1 Year
Akiles Prolam Ultra XL

18.9″ (480 mm)

47″ / min

14 mil (350 mic)

1/8″ (3 mm)

4 Hot / 2 Cold

2 Programmable (Temperature & Speed)

9 Settings

32°F – 284°F

27.25″ x 10.5″ x 5″

44 lbs (20 Kg)

1200 W

1 Year
Akiles Prolam Ultra X10

13″ (330 mm)

142″ / min

14 mil (350 mic)

1/8″ (3 mm)

6 Hot / 4 Cold

2 Programmable (Temperature & Speed)

9 Settings

32°F – 320°F

14″ x 25.75″ x 5.75″

57 lbs (26 Kg)

1560 W

1 Year
