Akiles Pro-Lam Ultra 6-Roller Laminator 13" with LCD Control

Name: Akiles Pro-Lam Ultra Six Roller Photo Pouch Laminator
Brand: Akiles
SKU: AKPLULTRA
Rating: 5.0 (2 reviews)

$719.00

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# AKPLULTRA

Versatile Laminating Options: Enjoy both thermal and cold lamination capabilities, accommodating a variety of projects and materials.
High-Speed Performance: Achieve professional results with a laminating speed of up to 53 inches per minute, perfect for busy environments.
Customizable Settings: Easily adjust temperature from 32°F to 184°F and select from 9 speed settings for optimal results with different pouch thicknesses.
Durable and Reliable Design: Built with all-metal construction and industrial-grade components, ensuring longevity and consistent performance for all your laminating needs.

Product Description

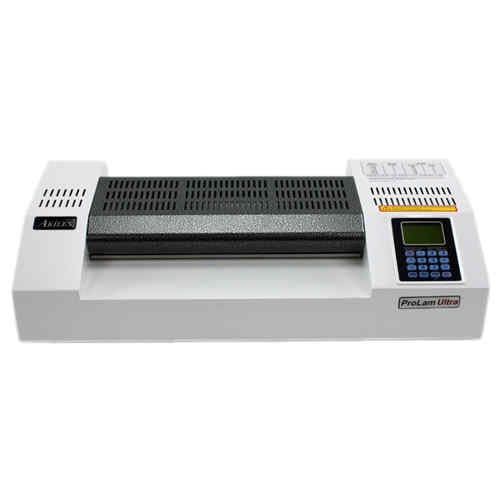

The Akiles Pro-Lam Ultra is the latest addition to the Akiles ProLam Heavy Duty Laminator Series, possessing superior quality and functionality combined with commercial grade design. The ProLam Ultra features a large LCD display and keypad, making it extremely easy to use, and includes seven preset memory settings ensuring you have the correct temperature and speed for different pouch settings. The large 13" throat allows the Pro-Lam Ultra to laminate a wide array of pouch sizes, up to 14 mil. The patented internal air cooling system keeps the laminator cool to the touch, even during extended use. With four heated rollers and two cold rollers, you can achieve a more professional, crystal-clear and bubble-free lamination finish. Along with a reverse function and easy to open cover for direct access to the rollers, you can be assured that the Pro-Lam Ultra offers the ultimate in user-friendly features and professional results for all of your pouch laminating projects.

Product Details

Model: ProLam Ultra

Throat Capacity: 13" (330mm)

Motor: DC 12V / 1150W

Max Pouch Thickness: 14mil

Laminating Speed: 53" per minute

Rollers: 6 Silicon Rollers (4 Heat / 2 Cold)

Temperature Control: Digital Display and Keypad

Speed Control: 9 Settings

Memory Settings: 7 Presets

Reverse Function: Yes

Weight / Volume: 33 lbs / 1.2 cubic ft

Manufacturer's Warranty: 1 Year Manufacturer Manufacturer's Warranty

Compatible Supplies: Pouch Laminate Up to 13" Wide & 1.5-14mil Thick

Specifications

6 Roller Thermal System (4 heated rollers + 2 Cold rollers) allows for a more professional, crystal-clear, bubble-free lamination finish.

User friendly Control Panel with large LCD display and many memory settings and features makes it a very easy-to-use laminator.

Air-Cooling System keeps the laminator cool to the touch while in use.

Auto Shutoff automatically cools and shuts down the machine, prolonging the life of your laminator.

7 Memory Settings ensure you have the correct temperature and speed for different pouch thicknesses.

Removable Cover allows direct access to the rollers and requires no tools to remove.

All Metal Construction for a more professional, heavy duty look & a longer lasting lifespan.

Silicon Rollers provide the flexibility of laminating with or without a carrier.

Metal Gears & Industrial Motor (1150 Watts / 12V) to guarantee strength and durability.

Jam Release (Reverse) Switch allows easy corrective action for jams.

Cold Lamination Function

CE & TUV certified and approved

Manufacturer's Warranty: 1 Year Manufacturer's Warranty

Compare to Similar Pouch Laminators

Model Name

Model

Throat Capacity

Max Laminating Speed

Max Pouch Thickness

Max Laminating Thickness

Heated Roller System

Memory Settings

Speed Control

Operating Temperature

Dimensions

Weight

Power Consumption

Warranty
Akiles Pro-Lam Plus 160

6.3″ (160 mm)

23″ / min

10 mils (250 Mic.)

3/64″ (1 mm)

2 Hot / 2 Cold

N/A

N/A

176 - 320 F

14.5″ x 8.5″ x 4.5″

14 lbs (16 Kg)

N/A

1 Year
Akiles Pro-Lam Plus 330

13″ (330 mm)

23″ / min

10 mils (250 Mic.)

3/64″ (1 mm)

2 Hot / 2 Cold

N/A

N/A

176 - 320 F

21″ x 8.5″ x 4.5″

20 lbs (26 Kg)

N/A

1 Year
Akiles iLam Plus

12.8″ (325mm)

21″ / min

10 mils (250 Mic.)

3/64″ (1 mm)

4 Silicone (2 Hot / 2 Cold)

N/A

N/A

293°F (Max)

19″ x 18.5″ x 4.5″

15 lbs (7 Kg)

550 watts

1 Year
Akiles Pro-Lam Photo

13″ (330mm)

59″ / min

10 mils (250 Mic.)

1 mm

6 Silicon Rollers (4 Heat / 2 Cold)

Electronic (8-bit Micro Processor)

9 Settings

32 – 320°F

N/A

39 lbs

1150W

1 Year
Akiles Pro-Lam Ultra

13″ (330mm)

53″ / min

14 mil

1/8″ (3 mm)

6 Silicon Rollers (4 Heat / 2 Cold)

7 Presets

9 Settings

140°C (Max)

1.2 CuFt (Volume)

33 lbs

1150 W

1 Year
Akiles Prolam Ultra X6

13″ (330 mm)

59″ / min

14 mil (350 mic)

1/8″ (3 mm)

4 Hot / 2 Cold

2 Programmable (Temperature & Speed)

9 Settings

32°F – 284°F

21″ x 10.5″ x 5″

35 lbs (16 Kg)

1050 W

1 Year
Akiles Prolam Ultra XL

18.9″ (480 mm)

47″ / min

14 mil (350 mic)

1/8″ (3 mm)

4 Hot / 2 Cold

2 Programmable (Temperature & Speed)

9 Settings

32°F – 284°F

27.25″ x 10.5″ x 5″

44 lbs (20 Kg)

1200 W

1 Year
Akiles Prolam Ultra X10

13″ (330 mm)

142″ / min

14 mil (350 mic)

1/8″ (3 mm)

6 Hot / 4 Cold

2 Programmable (Temperature & Speed)

9 Settings

32°F – 320°F

14″ x 25.75″ x 5.75″

57 lbs (26 Kg)

1560 W

1 Year

Video

Akiles Pro-Lam Ultra Pouch Laminator Demo Video

Transcript :

Welcome to MyBinding video. This video looks at the ProLam Ultra, a brand new 13 inch pouch laminator by Akiles. The ProLam Ultra is a heavy duty, fast acting laminator. Letâ€™s watch it in action step-by-step.

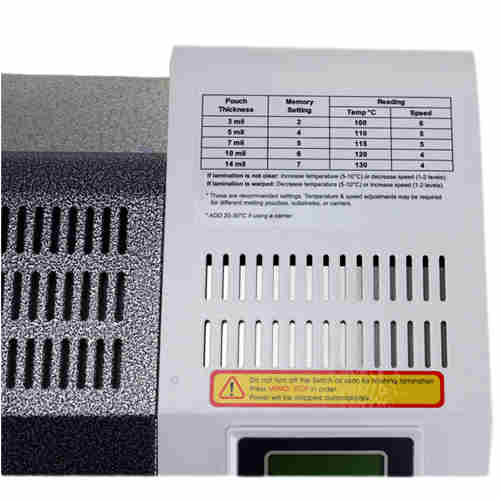

Everything is controlled by the LCD panel on the right hand side, including temperature, speed, as well as memorizing settings for future repeated action. Use the very helpful graph printed on the top of the machine to make the best temperature and speed selection for your size thickness of pouch. For this 3mil project, weâ€™re doing 100 degrees in temperature and six for the speed. Having placed our material inside the laminating pouch, make sure the crease always goes into the throat of the machine first. And the Akiles ProLam Ultra takes over from here. The wait time depends upon the speed that you have selected. However, none of it is very long. Even though there are built-in fans, itâ€™s always best to lay your finished project down to cool. The 13 inch throat opening on the ProLam Ultra allows you to do oversize documents, or in this case, two documents side by side in an extra large pouch. Simply line them up, close the pouch, and feed it crease first into the throat of the machine. If you need to, you can change the speed during the middle of the project.

And always wait for your project to be completely finished and out the back before you remove it. If youâ€™re working with a thicker pouch, for instance this one is a 5mil, we simply read the chart at the top, changed our settings, both the speed as well as the temperature, to the proper setting. Got our new materials ready, put the items in their pouch, waited for ready to show up on the screen, and sent them through. It really is that simple with the ProLam Ultra by Akiles. Be sure to always shut down and turn off your machine, letting it cool before you store it away. For more demos and reviews of this product and many more, check out MyBinding.com.

Staff Review

Akiles Pro-Lam Ultra Six-Roller Photo Laminator Review

You can usually count on an Akiles laminator being a high-quality device and that's definitely the case with the company's new Pro-Lam Ultra. It's a professional-grade pouch laminator that will blow you away. Here's a look at its features and how we rated it on a scale of 1 to 10:

The Pro-Lam Ultra has a 13-inch feed opening so it's capable of laminating both large and small documents. You can use this device to laminate just about anything including signs, brochures, and small posters.
This machine is compatible with laminating pouches that are up to 14 mil thick, so you'll be able to give your materials the protection they need. The laminator has 7 memory slots so you can program in various settings for different pouch thicknesses.
The Pro-Lam Ultra can make any document look great because it has 6 silicone rollers. Four of these rollers are heated and the other two are cold so everything you laminate will be free of heat marks, bubbles, and wrinkles. Also, this machine has a cold lamination setting so you can easily process heat-sensitive items like photographs.
You'll find that the Pro-Lam Ultra is very easy to use. It has 9 speed settings as well as a user-friendly keypad and digital display. There's even a handy chart on top of the machine that you can use to figure out which settings you should use. The device also has a reverse mode which will be helpful in the event of a pouch jam. Also, the machine will remain cool to the touch during operation since it has an air cooling system.
The Pro-Lam Ultra can laminate up to 53" of material in a single minute. Thus, you'll be able to quickly laminate your documents so you can move on to other tasks.
Maintaining this device is easy because you can remove the cover without any tools. Once you remove the cover, you can clean the rollers or do any other needed maintenance.
The Pro-Lam Ultra is one of the most durable pouch laminators available. It features all-metal construction and an industrial-strength motor so you'll be able to get a lot of use out of it over throughout the years.
Finally, this machine's warranty lasts for 1 year.

Final rating: 9. We were very, very impressed by the Akiles Pro-Lam Ultra and feel that it's simply one of the best pouch laminators available. This is a heavy-duty machine that's very durable but still easy to use. Best of all, it produces beautifully laminated documents so you can be confident that your materials are going to look great. The only qualm we had about this machine is that it's a bit on the large side. Thus, it might not be the best choice for really small work areas. But if space isn't an issue for you and you need a professional-grade laminator, the Pro-Lam Ultra is an excellent choice. Check it out today.

It has been reliable and produces good results. We have been very happy with it

We ordered this about a year ago. You can tell this is a well made machine. It has been reliable and produces good results. We have been very happy with it.

5 Stars

Price chaper than store good & easy to use
