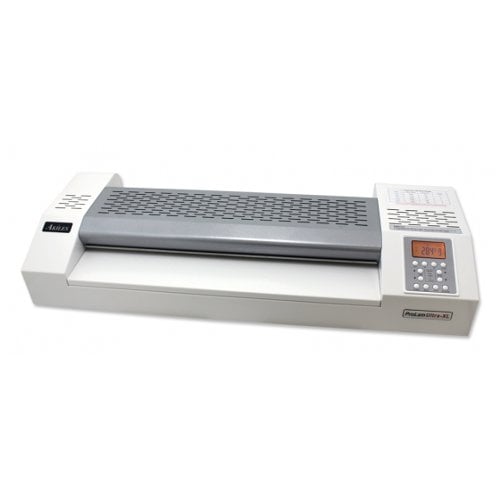

Name: Akiles Prolam Ultra XL Pouch Laminator
Brand: Akiles
SKU: AKPLULTRAXL
Rating: 4.5 (2 reviews)

$1,399.00

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# AKPLULTRAXL

Professional Quality Results: Achieve bubble-free, crystal-clear laminations with the advanced 6 roller system designed for high-volume use.
Versatile Laminating Options: Easily laminate a variety of materials, including pouches up to 14mil thick and boards up to 1/8" thick, perfect for both simple and substantial projects.
User-Friendly Controls: The intuitive LCD control panel with programmable memory settings allows you to save your preferred temperature and speed for quick access.
Enhanced Safety Features: The auto shutoff function and patented air cooling system ensure safe operation and prolong the life of your laminator.

Product Description

The Akiles ProLam Ultra XL laminator possesses superior quality and functionality combined with a commercial grade design. The Ultra XL has a 6 roller system that produces professional, bubble-free pouches every time. Other features of the Ultra XL include 9 speed control settings, programmable memory settings, auto shutoff, LCD control panel and a large 18.9" opening for larger pouch laminating.

Product Details

Throat Capacity: 18.9" (480 mm)

Max Laminating Speed: 47" / min

Max Pouch Thickness: 14mil (350 mic)

Max Laminating Thickness: 1/8" (3 mm)

Heated Roller System: 4 Hot / 2 Cold

Memory Settings: 2 Programmable (Temperature & Speed)

Speed Control: 9 Settings

Operating Temperature: 32Â°F - 284Â°F

Power Consumption: 1200 W

Manufacturer's Warranty: 1 Year

Shipping Weight:52 Lbs

Actual Machine Dimensions (L x W x H): 27.25″ W x 10.5″ D x 5″ H

Shipping Dimensions (L x W x H): 29" W x 13" D x 7" H

Compatible Supplies: Pouch Laminate Up to 18.9" Wide & 1.5-14mil Thick
Up to 1/8" Pouch Board

Specifications

Commercial Grade 6 Roller Laminators with Programmable Memory Settings

Programmable Memory Settings: Allows you to save the ideal temperature and speed for your most frequent projects.

Auto Shutoff: Automatically cools and shuts down the machine after usage, to prolong the life of your laminator.

Extra Large Opening: The 18.9" opening allows you to laminate with extra large pouches (i.e. 18" x 24").

Removable Cover: Allows quick acccess to the roller with easy-to-remove thumb screws.

LCD Control Panel: Backlit LCD display with labeled keypad makes it easy to operate.

Setting Guide: Shows the recommend temperature and speed settings for different pouch thicknesses.

13" Capacities: The large 13" (X6 / X10) or extra large 18.9" (XL) throat allows the machine to laminate a wide array of pouch sizes.

Air Cooling System: Patented internal cooling system ensures the laminator stays cool to the touch while in use.

Programmable Memory Settings: Memorize the ideal temperature & speed settings for your most frequently used pouches.

Compare to Similar Pouch Laminators

Model Name

Model

Throat Capacity

Max Laminating Speed

Max Pouch Thickness

Max Laminating Thickness

Heated Roller System

Memory Settings

Speed Control

Operating Temperature

Dimensions

Weight

Power Consumption

Warranty
Akiles Pro-Lam Plus 160

6.3″ (160 mm)

23″ / min

10 mils (250 Mic.)

3/64″ (1 mm)

2 Hot / 2 Cold

N/A

N/A

176 - 320 F

14.5″ x 8.5″ x 4.5″

14 lbs (16 Kg)

N/A

1 Year
Akiles Pro-Lam Plus 330

13″ (330 mm)

23″ / min

10 mils (250 Mic.)

3/64″ (1 mm)

2 Hot / 2 Cold

N/A

N/A

176 - 320 F

21″ x 8.5″ x 4.5″

20 lbs (26 Kg)

N/A

1 Year
Akiles iLam Plus

12.8″ (325mm)

21″ / min

10 mils (250 Mic.)

3/64″ (1 mm)

4 Silicone (2 Hot / 2 Cold)

N/A

N/A

293°F (Max)

19″ x 18.5″ x 4.5″

15 lbs (7 Kg)

550 watts

1 Year
Akiles Pro-Lam Photo

13″ (330mm)

59″ / min

10 mils (250 Mic.)

1 mm

6 Silicon Rollers (4 Heat / 2 Cold)

Electronic (8-bit Micro Processor)

9 Settings

32 – 320°F

N/A

39 lbs

1150W

1 Year
Akiles Pro-Lam Ultra

13″ (330mm)

53″ / min

14 mil

1/8″ (3 mm)

6 Silicon Rollers (4 Heat / 2 Cold)

7 Presets

9 Settings

140°C (Max)

1.2 CuFt (Volume)

33 lbs

1150 W

1 Year
Akiles Prolam Ultra X6

13″ (330 mm)

59″ / min

14 mil (350 mic)

1/8″ (3 mm)

4 Hot / 2 Cold

2 Programmable (Temperature & Speed)

9 Settings

32°F – 284°F

21″ x 10.5″ x 5″

35 lbs (16 Kg)

1050 W

1 Year
Akiles Prolam Ultra XL

18.9″ (480 mm)

47″ / min

14 mil (350 mic)

1/8″ (3 mm)

4 Hot / 2 Cold

2 Programmable (Temperature & Speed)

9 Settings

32°F – 284°F

27.25″ x 10.5″ x 5″

44 lbs (20 Kg)

1200 W

1 Year
Akiles Prolam Ultra X10

13″ (330 mm)

142″ / min

14 mil (350 mic)

1/8″ (3 mm)

6 Hot / 4 Cold

2 Programmable (Temperature & Speed)

9 Settings

32°F – 320°F

14″ x 25.75″ x 5.75″

57 lbs (26 Kg)

1560 W

1 Year

I have a home office and I am a laminating …

I have a home office and I am a laminating monster. I don't know if I will ever even use the full width of this but it doesn't matter. The large mouth just makes it even easier to feed the paper through.

Great price!

Pleased so far. It is an ugly, metal, industrial thing. Only downside, its really heavy and hard to transport to store it.
