Product Description

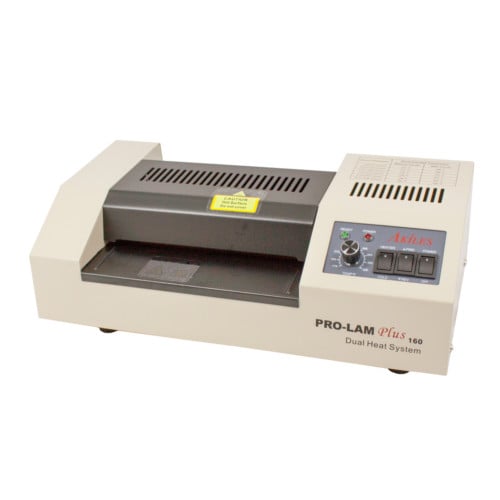

The ProLam Plus 160 is the next generation of pouch laminator from Akiles. This exciting new system features a 6.3" lamination capacity, adjustable PCB heat control, silicone rollers, hot/cold lamination capabilities, and the same all metal quality construction you have come to expect from Akiles. The unique dual heat system is what sets the Akiles ProLam Plus 160 apart from other laminators. The ProLam Plus 160 features heated rollers and heated platens. This ensures more even heat distribution and combats dissipation of heat that plagues common pouch laminators.
Product Details
- Model: Prolam Plus 160
- Throat: Capacity 6.3"
- Motor: Heavy-Duty
- Laminating Heat Range: 176 - 320 F
- Maximum Pouch Thickness: 10mil
- Temperature Control: Electronic (PCB)
- Laminating Speed: 540mm / min
- Cover: Metal
- Actual Machine Dimensions (L x W x H): 16-1/2" x 8-1/2" x 5"
- Shipping Length:17"
- Shipping Width:11"
- Shipping Height:7"
- Shipping Weight:16 Lbs.
- Warranty: 1 year
Specifications
- Metal Cover (Dual Color). For a longer lasting lifespan & a more professional, heavy duty look.
- Silicon Rollers. Provide the flexibility of laminating with or without a carrier.
- Metal Gears. To guarantee strength and durability.

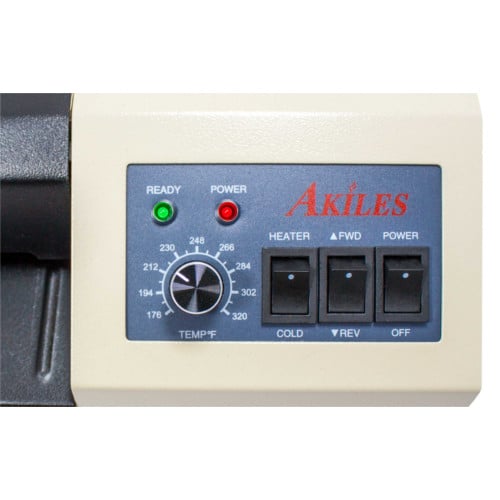

- Ready Light / Power Light / Power Switch
- Forward / Reverse Switch. Allows easy corrective action for jams. i.e. when document is improperly fed or temperature was set too high.
- Heat / Cold Switch. Offers cold lamination function.
- Electronic Circuit (PCB) & Gradual Temperature Control. For a fast, consistent and easy fine-tuning of temperature. Ideal when operator requires frequent changing of pouch thickness, pouch composition or when laminating different materials.
- 6.3" Throat. Extra-wide entrance for easy pouch feeding.

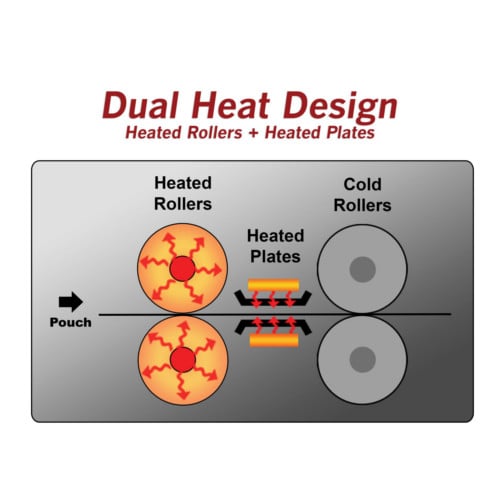

- Dual Heat System (heated rollers & heat plate combination). For a more efficient lamination at lower temperatures. Allows for a perfect lamination of all standard pouch thicknesses (from 3 mils up to 10 mils).
- Photo Ready. Heated-rollers allow a balanced heat distribution during laminating process, thus guaranteeing a crystal clear, bubble-free laminating result even when you laminate photos & ink-jet printouts.
- Warranty. 1 Year Manufacturer Warranty
Compare to Similar Pouch Laminators
-
Model NameModelThroat CapacityMax Laminating SpeedMax Pouch ThicknessMax Laminating ThicknessHeated Roller SystemMemory SettingsSpeed ControlOperating TemperatureDimensionsWeightPower ConsumptionWarranty
-
Akiles Pro-Lam Plus 160
6.3″ (160 mm)23″ / min10 mils (250 Mic.)3/64″ (1 mm)2 Hot / 2 ColdN/AN/A176 - 320 F14.5″ x 8.5″ x 4.5″14 lbs (16 Kg)N/A1 Year -
Akiles Pro-Lam Plus 330
13″ (330 mm)23″ / min10 mils (250 Mic.)3/64″ (1 mm)2 Hot / 2 ColdN/AN/A176 - 320 F21″ x 8.5″ x 4.5″20 lbs (26 Kg)N/A1 Year -
Akiles iLam Plus
12.8″ (325mm)21″ / min10 mils (250 Mic.)3/64″ (1 mm)4 Silicone (2 Hot / 2 Cold)N/AN/A293°F (Max)19″ x 18.5″ x 4.5″15 lbs (7 Kg)550 watts1 Year -
Akiles Pro-Lam Photo
13″ (330mm)59″ / min10 mils (250 Mic.)1 mm6 Silicon Rollers (4 Heat / 2 Cold)Electronic (8-bit Micro Processor)9 Settings32 – 320°FN/A39 lbs1150W1 Year -
Akiles Pro-Lam Ultra
13″ (330mm)53″ / min14 mil1/8″ (3 mm)6 Silicon Rollers (4 Heat / 2 Cold)7 Presets9 Settings140°C (Max)1.2 CuFt (Volume)33 lbs1150 W1 Year -
Akiles Prolam Ultra X6
13″ (330 mm)59″ / min14 mil (350 mic)1/8″ (3 mm)4 Hot / 2 Cold2 Programmable (Temperature & Speed)9 Settings32°F – 284°F21″ x 10.5″ x 5″35 lbs (16 Kg)1050 W1 Year -
Akiles Prolam Ultra XL
18.9″ (480 mm)47″ / min14 mil (350 mic)1/8″ (3 mm)4 Hot / 2 Cold2 Programmable (Temperature & Speed)9 Settings32°F – 284°F27.25″ x 10.5″ x 5″44 lbs (20 Kg)1200 W1 Year -
Akiles Prolam Ultra X10
13″ (330 mm)142″ / min14 mil (350 mic)1/8″ (3 mm)6 Hot / 4 Cold2 Programmable (Temperature & Speed)9 Settings32°F – 320°F14″ x 25.75″ x 5.75″57 lbs (26 Kg)1560 W1 Year
