Compatible with film up to 10mil thick (1" core) & boards up to 3/16" thick
Adjustable heat settings from 194°-284° F
105.6" per minute fixed speed
ProductDescription

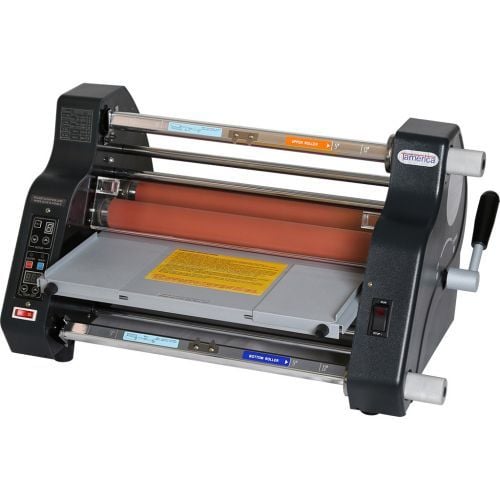

This Tamerica 14" Professional Roll Laminator is a two sided thermal laminating and mounting roll laminator that is an ideal laminating solution for school or professional environments who consistently laminate various sized documents that are equal or less than 14” in width – this includes, but it not limited to signs, newspaper articles, rewards, labels, charts, lists and reports. The "J-Bar" is for ease of film threading and max. film contact on heated roller and ensure a more quality finished laminating resuIt. The Tamerica TCC-1400i accommodates laminating film 1.5mil -10mil in thickness on a 1” core and can mount up to 3/16” – these capabilities, in addition to adjustable temperature and speed controls, laminating speed up to 8.8ft/min, a built-in horizontal trimmer, and reverse function, make the TCC-1400i versatile and user-friendly.
Product Details
Laminates from 1.5 - 10mil at 8.8 fpm.
14" Laminating Width.
Temperature conversion (C/F).
Mounts up to 3/16" Boards.
1" Core Size.
"J"-bar sliding bottom mandrel.
Run / Stop switch with reverse function.
Built-in trimmer.
UL Approved.
Limited 1 Year Manufacturer's Warranty.
Item Specifications
Color: Gray / Blue
Operation: Electric
Double-Sided Lamination: Yes
Single-Sided Lamination: No
Thermal Laminating: Yes
Digital Laminating (Low-Temp): No
Cold Laminating: No
Speed: 8.8' / Minute (Feet per Minute)
Adjustable Speed: Yes
Warm-Up Time: 15 Minutes
Maximum Mil Thickness: 10 Mil
Temperature Range: 194° - 248°F (90° -140°C)
Adjustable Temp: Yes
Maximum Width: 14"
Maximum Film Diameter: 5" Diameter Roll
Core Size: 1" Core
Reverse Function: Yes
Capable of Mounting: Yes
Maximum Mounting Thickness: 3/16" Boards
Capable of Foiling: No
Integrated Cutter: Single rear (fixed on a bar for side-to-side trimming)
Stand-By / Power-Save Mode: No
Auto-Shut Off: No
Mounted Onto Stand: No
Power Voltage: 110 Volts 15amp
Dimensions: 34" x 24" x 18"
Certifications: UL
Compliance & Warnings: Cancer & Reproductive Harm [Prop 65] Visit www.p65warnings.ca.gov for info
Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Press to skip carousel
. Yes, one may use pouch boards with the MyBinding 14" Professional Roll Laminator
The manufacturer has not actually tried using Acrylic glass yet but since in a way it is similar to cold mounting, you should be able to do this, however, it may be important to first know how thick the acrylic to be used is. Please give us a call at 800-944-4573, or send us an email at [email protected], to give us a little more information about your application.
